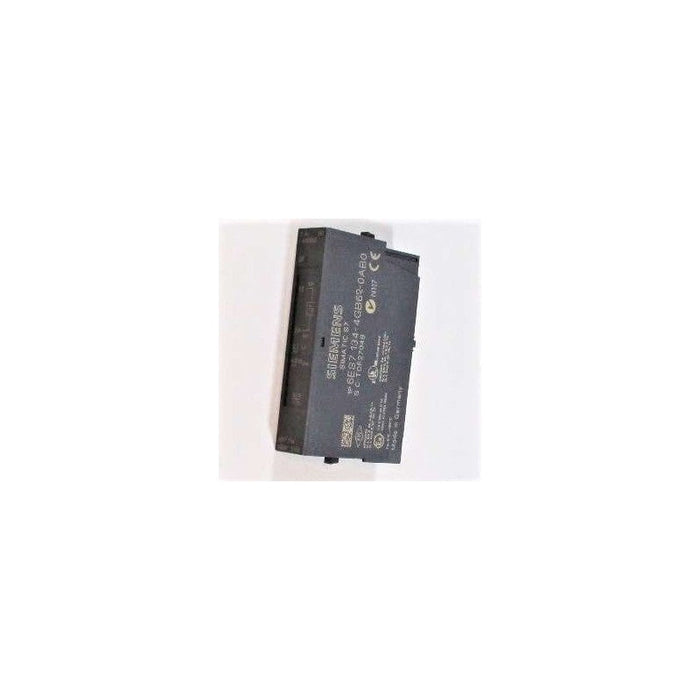

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7134-4GB62-0AB0 Siemens
Original price
$0.00
-
Original price
$1,124.75
Original price
$1,124.75
$0.00
-
$1,124.75
Current price
$1,124.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7134-4GB62-0AB0 is an ET 200S SIMATIC DP electronics module providing two high-speed analog current inputs for 4-wire transmitters within distributed I/O systems. It supports isochronous operation with a module cycle time of 250 µs, performs successive approximation (SAR) conversion, and includes a group-fault LED indicator. This module integrates into PROFIBUS DP/PROFINET systems and suits applications requiring precise, fast analog acquisition, such as process instrumentation, feedback control loops, and distributed sensor interfacing.
Best Suited For
- High-speed current measurement for process control
- Distributed I/O systems using ET 200S
- Applications requiring isochronous DP cycle times (~250 µs)
- Integration with 4-wire transmitter sensors
Analog inputs
2 current channels
Cycle time
250 µs (module)
Resolution
15 bit (±4-20 mA etc.)
Sensor supply per channel
80 mA, short-circuit proof
Weight
approx. 45 g
Technical Specifications
I/O & Electrical
Analog input channels
2
Input ranges
0-20 mA, 4-20 mA, ±20 mA
Input resolution
15 bit + sign (per range)
Input resistance (0-20 mA)
106 Ω
Max destruction current
30 mA
Sensor supply voltage
L+ (-2.5 V)
Sensor supply current
80 mA per channel
Cycle time
250 µs (module), conv. time 100 µs/channel
Isochronous mode
Yes
Communication & Power
Backplane bus current (3.3 V)
max. 10 mA
Load voltage L+ current (without load)
max. 80 mA
Power loss (typical)
1.9 W
Physical & Environmental
Width
15 mm
Height
81 mm
Depth
52 mm
Weight
approx. 45 g
Certifications
EU Declaration of ConformityUK Declaration of ConformityULRCMATEXFMIECExABSBVDNVLRPRS
