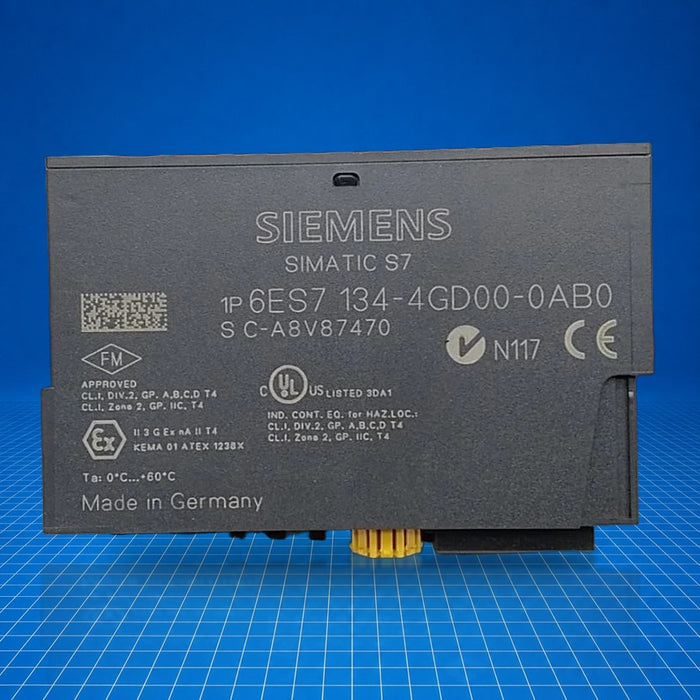

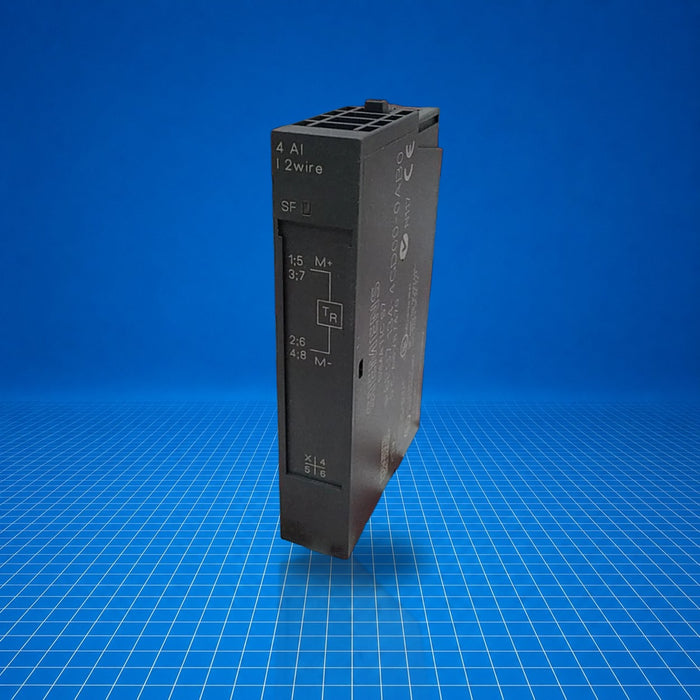

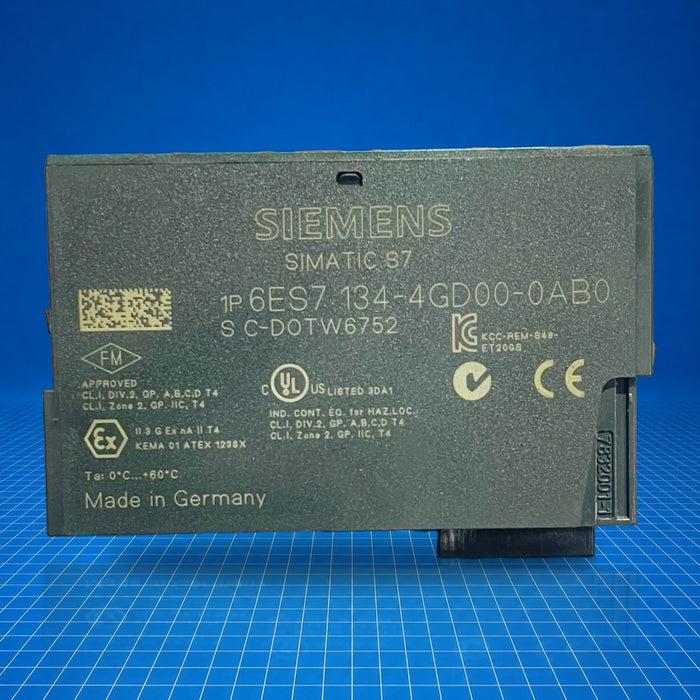

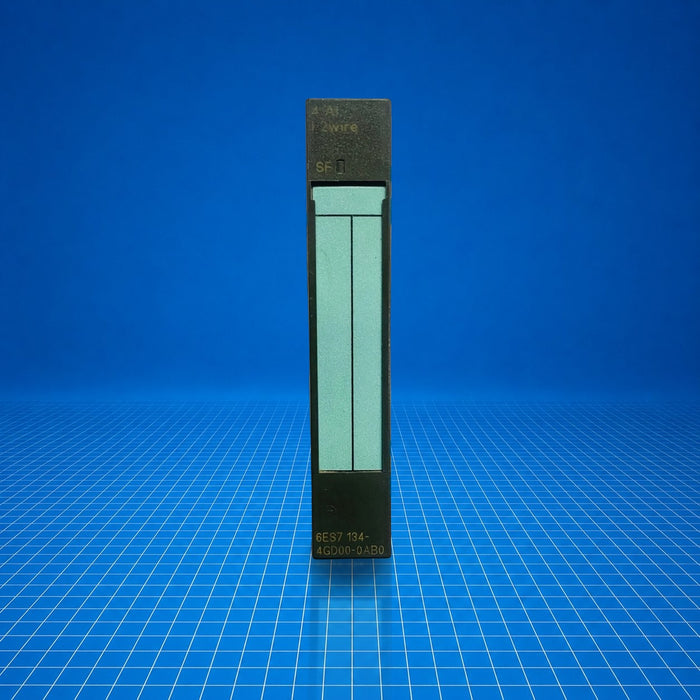

6ES7134-4GD00-0AB0 Siemens
Original price
$552.00
-
Original price
$654.50
Original price
$552.00
$552.00
-
$654.50
Current price
$552.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC ET 200S 4AI standard I-2-wire analog input electronics module (part number 6ES7134-4GD00-0AB0) provides four current-input channels (4-20 mA) for two-wire transmitters. It occupies a 15 mm module width and interfaces with the ET 200S distributed I/O system over PROFIBUS-DP. Typical applications include field-mounted analog signal acquisition in process, machine and plant automation, and replacement of legacy or spare modules in Siemens ET 200S installations. Part number 6ES7134-4GD00-0AB0 is referenced twice if needed.
Best Suited For
- Field module replacement in Siemens ET 200S systems
- 4-20 mA two-wire transmitter monitoring
- Compact distributed analog input in constrained panel spaces
- Modular I/O expansion over PROFIBUS-DP
Analog inputs
4 channels
Input type
4-20 mA (2-wire transmitters)
Module width
15 mm
Cycle time (all channels)
33-40 ms
Power dissipation
0.6 W typical
Technical Specifications
I/O & Electrical
Number of analog inputs
4
Input range
4 mA to 20 mA (into 25 Ω)
Cable length, shielded, max.
200 m
Reverse-polarity protection
Yes
Short-circuit protection (sensor supply)
Yes; ≈ 200 mA for module
Address space per module, max.
8 bytes
Group fault (SF) LED
Yes
Communication & Power
Load voltage L+ (rated)
24 V DC (from power module)
Current consumption from L+, max (no load)
125 mA
Current from backplane bus 3.3 V, max
10 mA
Power dissipation, typical
0.6 W
Physical & Environmental
Module width
15 mm
Weight, approx.
40 g
Measurement principle
Integrating
Resolution
13 bit (including overrange)
Integration time, parameterizable
Yes; 16.7 ms / 20 ms
Cycle time (all channels)
33 ms to 40 ms
Interference suppression
50 Hz / 60 Hz
