6ES7134-4JB01-0AB0 Siemens

Name: 6ES7134-4JB01-0AB0 Siemens
Brand: Siemens
SKU: 6ES7134-4JB01-0AB0
Price: 578.4 USD
Availability: InStock

$578.40 - $1,237.50

$578.40

$578.40 - $1,237.50

$578.40

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

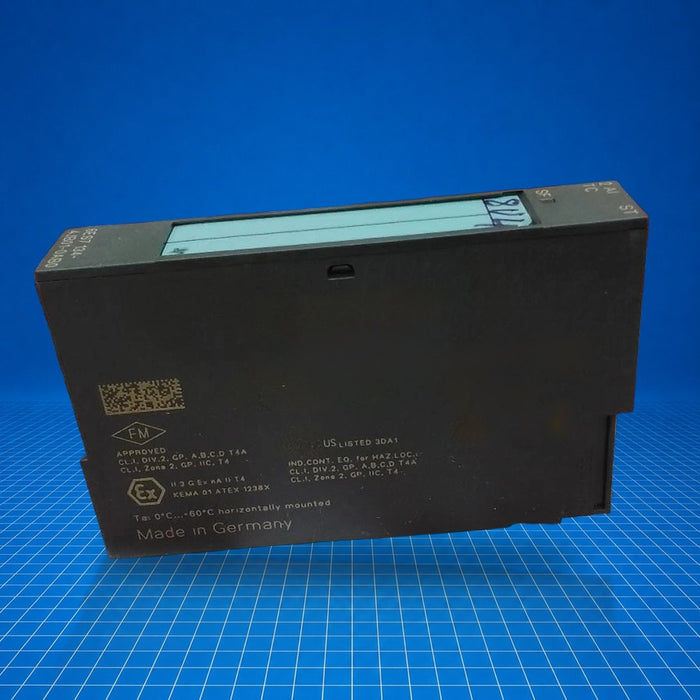

The Siemens 6ES7134-4JB01-0AB0 is an analog electronic module (2 AI TC standard) within the SIMATIC ET 200S distributed I/O platform. It provides two thermocouple-capable analog inputs with ±80 mV range and 15-bit plus sign resolution, including parameterizable linearization across multiple TC types. It integrates into PROFIBUS DP networks and supports compact, modular control system architectures, typical in process measurement and temperature monitoring applications. 6ES7134-4JB01-0AB0 is the assigned Siemens article number for this module.

Best Suited For

Temperature measurement via thermocouples (types B, E, J, K, L, N, R, S, T)
Use in ET 200S modular I/O racks for distributed temperature control
Applications requiring compact analog input for high-density installations
Integration in systems employing group-fault diagnostics via SF LED

Analog inputs

2 channels

Input type

Thermocouple ±80 mV

Resolution

15-bit + sign

Width

15 mm

Power loss

0.6 W (typ.)

Technical Specifications

I/O & Electrical

Input voltage range

±80 mV

Input resistance

1 MΩ

Number of analog inputs

2

Cable length (shielded), max.

50 m

Communication & Power

Supply voltage (L+)

24 V DC (from power module)

Reverse polarity protection

Yes

Input current (from L+ no load), max.

30 mA

Input current (backplane bus 3.3 V), max.

10 mA

Physical & Environmental

Width

15 mm

Height

81 mm

Depth

52 mm

Weight

40 g (approx.)

Certifications

ULATEXIECExFMABSLRPRS

Approvals include UL, ATEX, IECEx, FM, ABS, LR, PRS; isolation tested to 500 V DC; general product approval and China RoHS compliant.
