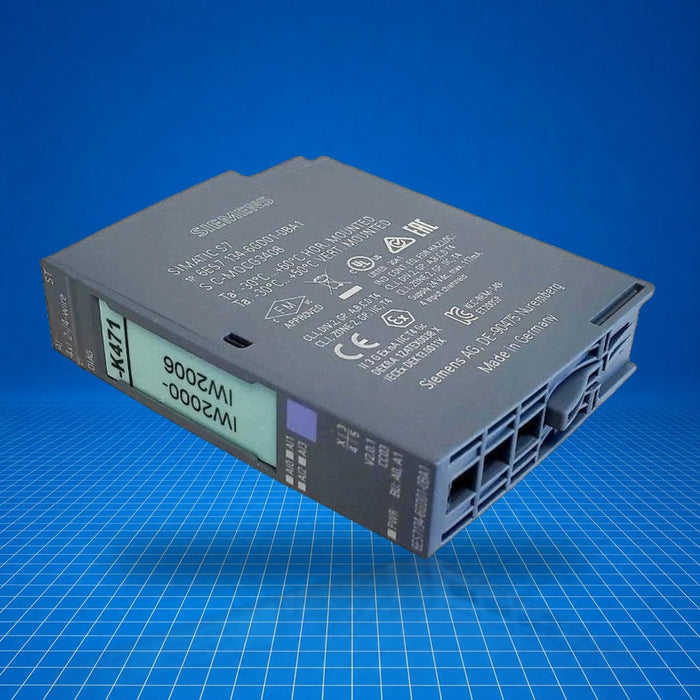

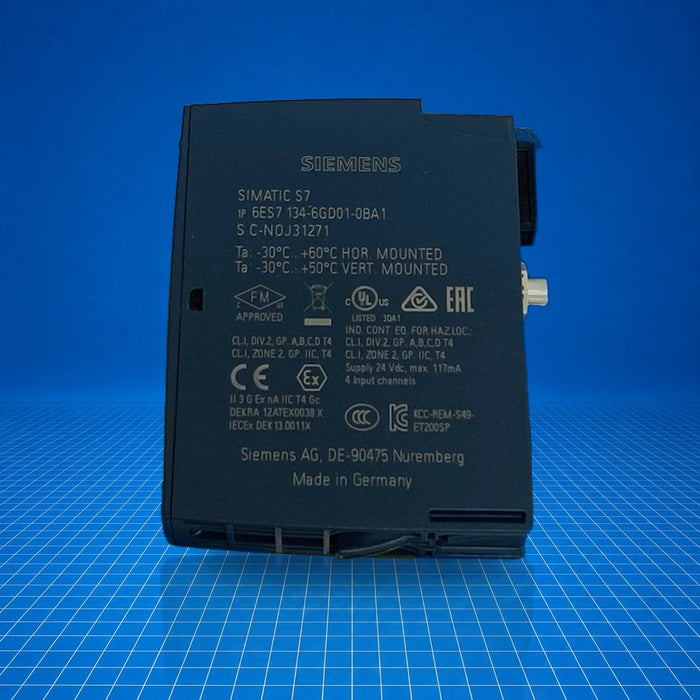

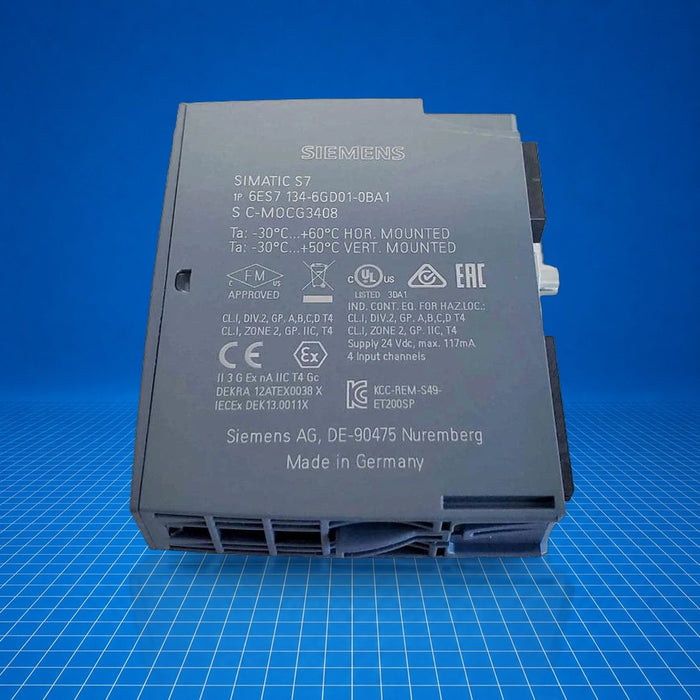

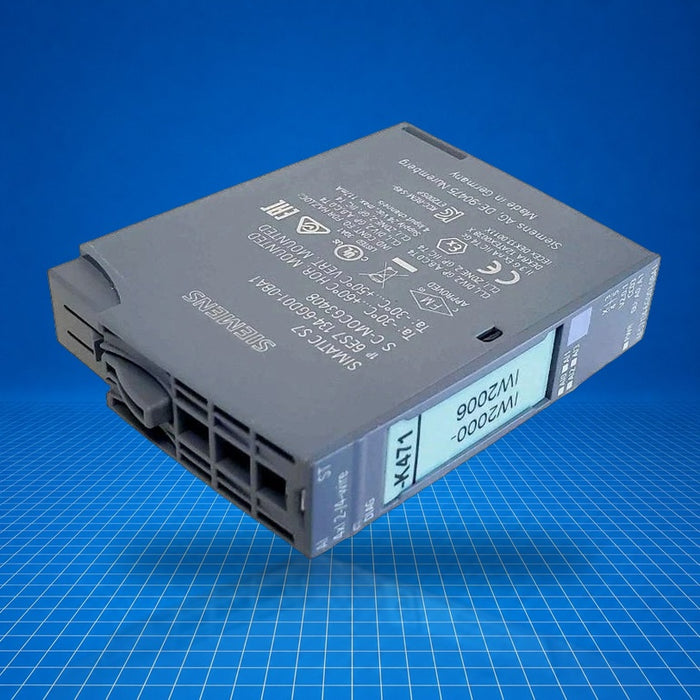

6ES7134-6GD01-0BA1 Siemens

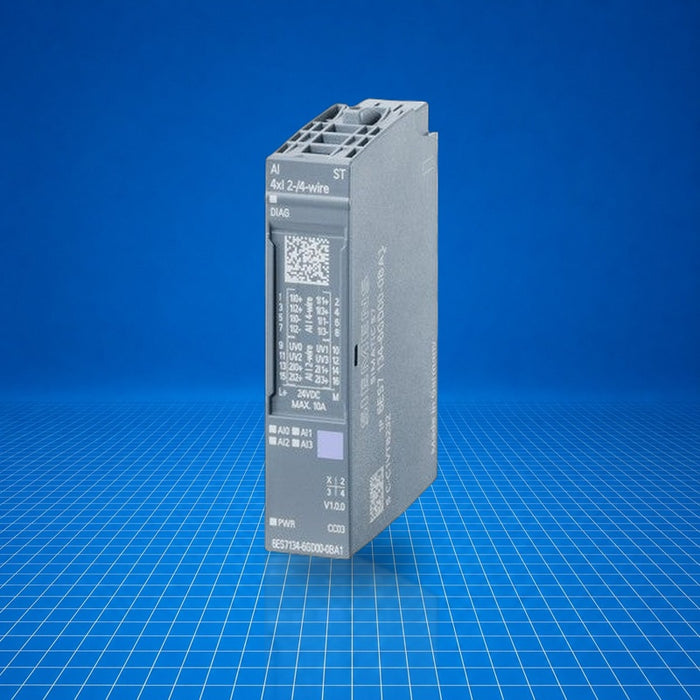

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7134-6GD01-0BA1 Siemens

$447.00 - $715.00
$447.00
$447.00 - $715.00
$447.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$447.00
8 in stock
New / Open-Box Surplus
Need a Specific Revision?
$715.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (8) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC ET 200SP analog input module 6ES7134-6GD01-0BA1 (AI 4xI 2-/4-wire ST) provides four differential analog current input channels for ET 200SP distributed I/O systems. It fits BaseUnits A0 or A1 and supports module-level diagnostics and I&M data (I&M0 to I&M3). Configurable within TIA Portal (from version V14), STEP 7 (from V5.6) or PCS 7 (from V8.1 SP1), it enables integration into PROFIBUS or PROFINET networks. Typical applications include process measurement, distributed automation, and remote analog signal acquisition in manufacturing and process control systems.

Best Suited For

  • Distributed analog current input acquisition (4-channel)
  • Integration with ET 200SP I/O systems
  • Diagnostics-enabled remote I/O installations
  • Use in PROFIBUS or PROFINET process I/O topologies
Channels
4 differential analog inputs
Supply voltage
24 V DC (19.2 … 28.8 V), reverse-polarity protected
Input ranges
0 … 20 mA; -20 … +20 mA; 4 … 20 mA
Power consumption
37 mA (@ 24 V, no sensor supply) / 0.85 W
Diagnostics
Module and channel diagnostics, LEDs

Technical Specifications

I/O & Electrical

Analog inputs (channels)
4 differential
Input ranges
0 … 20 mA; -20 … +20 mA; 4 … 20 mA
Input resistance
100 Ω (plus ~0.7 V diode drop in 2-wire)
Destruction limit current
50 mA
Max cable length (shielded)
1 000 m

Communication & Power

Supply voltage
24 V DC (19.2 … 28.8 V), reverse-polarity protected
Current consumption
37 mA (without sensor supply)
Power loss
0.85 W (typical, without encoder supply)
Encoder supply
24 V DC, short-circuit protected; max 20 mA (50 mA for <10 s per channel)

Physical & Environmental

Dimensions (W×H×D)
15 mm × 73 mm × 58 mm
Weight
Approx. 31 g
Ambient temperature (horizontal)
-30 °C to 60 °C ( < 0 °C as of FS02)
Ambient temperature (vertical)
-30 °C to 50 °C ( < 0 °C as of FS02)
Altitude (max)
5 000 m (restrictions > 2 000 m)
Dew point (min)
-60 °C (dry room use)

Certifications

Isolation tested at 707 V DC; environmental product declaration, multiple approvals including EU/UK Declaration of Conformity, China RoHS, maritime approvals, EMV test certificates.
