6ES7135-4MB02-0AB0 Siemens
Original price
$375.00
-
Original price
$387.00
Original price
$387.00
$375.00
-
$387.00
Current price
$387.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

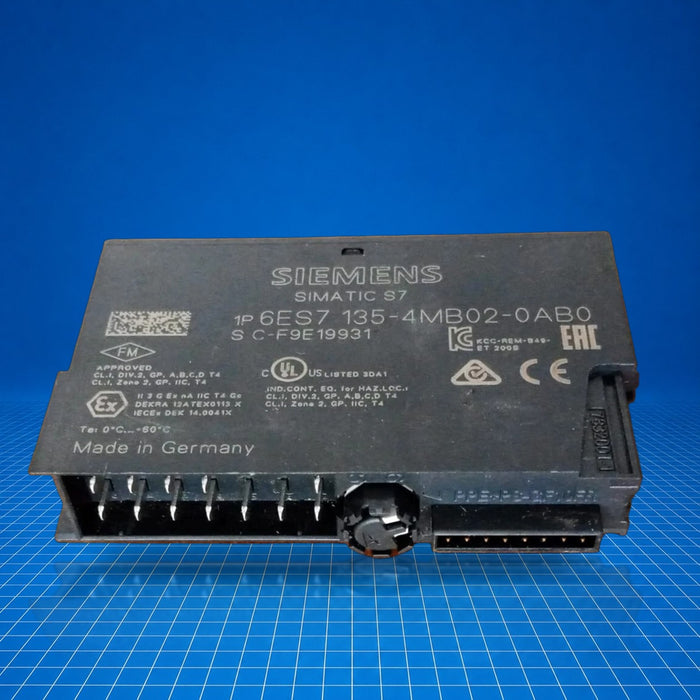

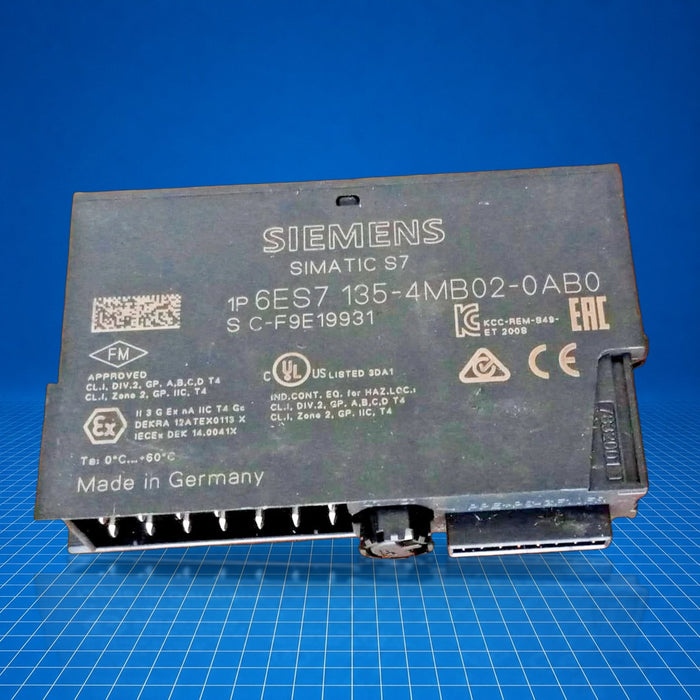

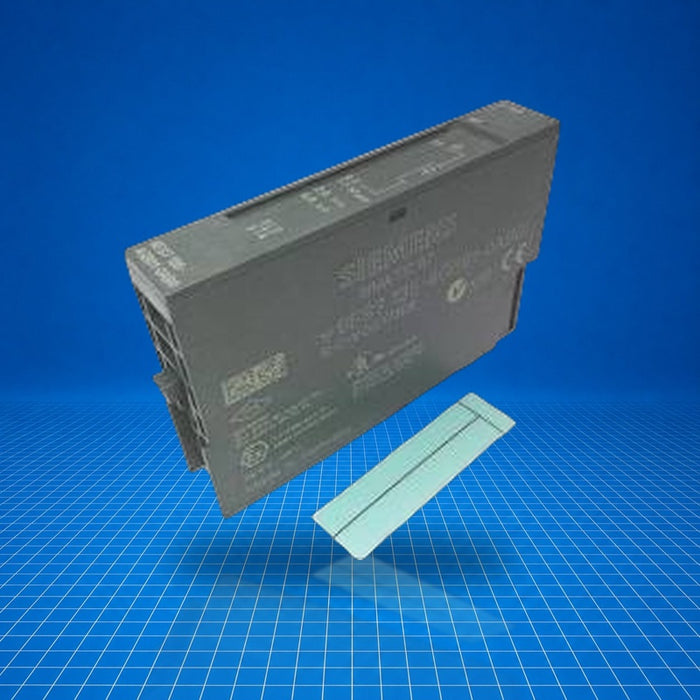

The Siemens SIMATIC ET 200S 2AO I High Feature module (part number 6ES7135-4MB02-0AB0) is a two-channel analog output module used in distributed I/O systems. It belongs to the ET 200S series on Profibus DP and provides current outputs for control of analog actuators. Installed on the ET 200S backplane, it interfaces with the DP controller and is typically deployed for machine-level analog control in manufacturing, process automation, or motion control applications. The module supports diagnostic and isochronous operation and is designated as a spare part under part number 6ES7135-4MB02-0AB0.
Best Suited For
- Analog current control on ET 200S I/O racks
- Applications requiring fast update (0.5 ms cycle time)
- Distributed analog signal control in Profibus DP systems
- Use in systems requiring group fault diagnostics (SF LED)
Number of analog outputs
2
Output ranges
-20 mA … +20 mA, 4 mA … 20 mA
Cycle time (all channels)
0.5 ms
Power dissipation
1.2 W (max.)
Technical Specifications
I/O & Electrical
Number of outputs
2
Output ranges
-20 mA … +20 mA; 4 mA … 20 mA
Load impedance (max resistive)
500 Ω
Load impedance (max inductive)
1 mH
Open-circuit voltage (no-load)
18 V
Destruction current limit
50 mA DC
Crosstalk
< -60 dB
Operational error limit (entire temp. range)
± 0.1 %
Basic error limit (25 °C)
± 0.05 %
Temperature error
± 0.003 %/K
Linearity error
± 0.01 %
Repeatability
(steady state, 25 °C) unspecified numeric but implied high
Communication & Power
Supply voltage (L+)
24 V DC rated
Reverse-polarity protection
Yes
Current consumption (L+)
80 mA (max.)
Backplane bus consumption (3.3 V)
10 mA (max.)
Address area
4 byte
Parameter length
7 bytes
Isochronous mode
Yes
I&M support
Yes
Physical & Environmental
Width
15 mm
Weight
Approx. 40 g
Power dissipation
1.2 W (max.)
