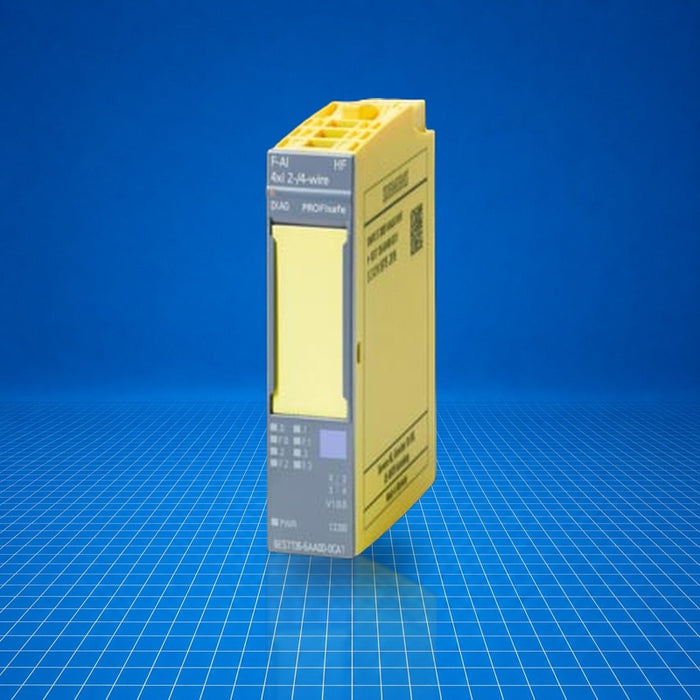

Product image is representative; revision or series may vary.
Contact us to request a specific version.

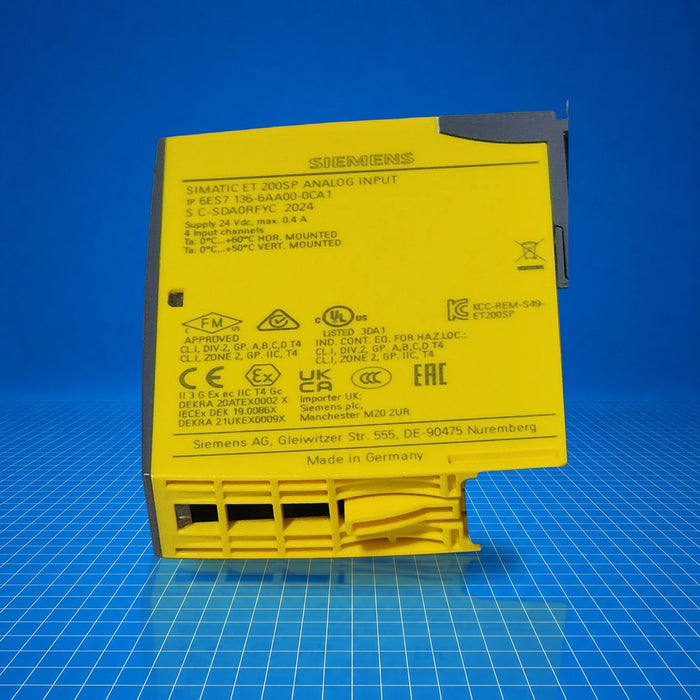

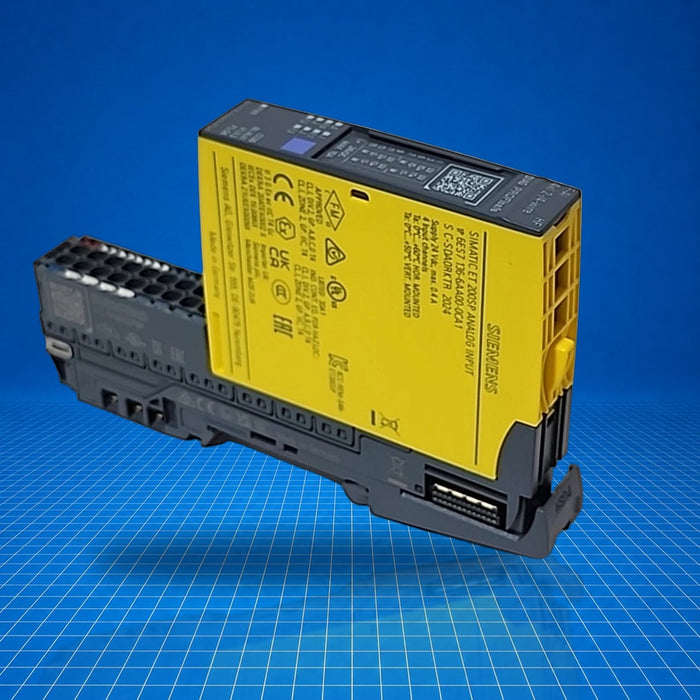

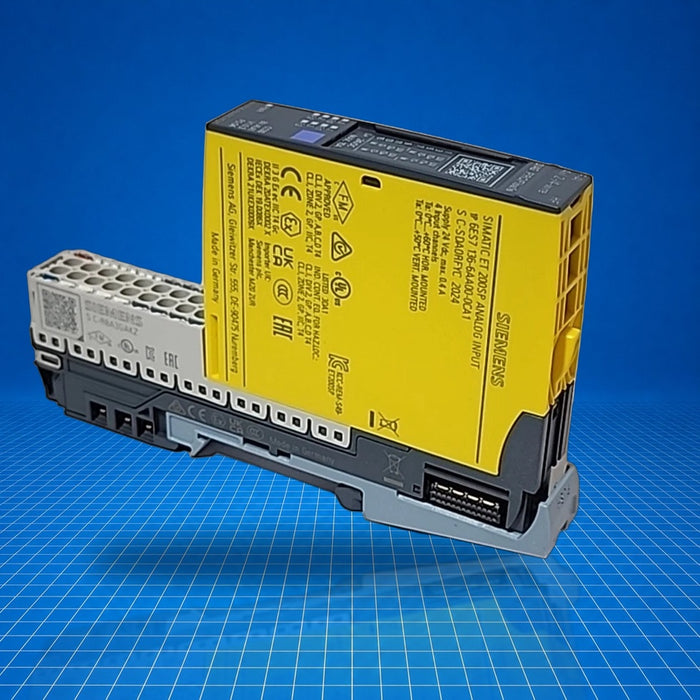

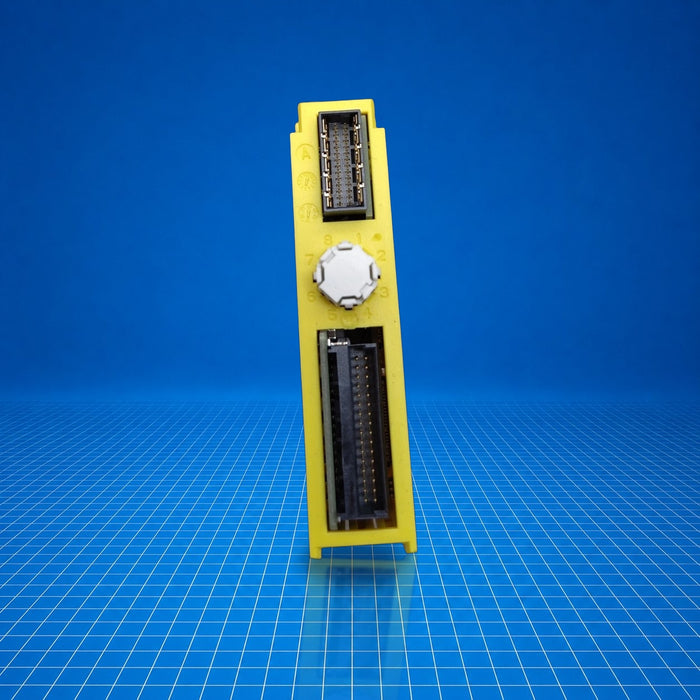

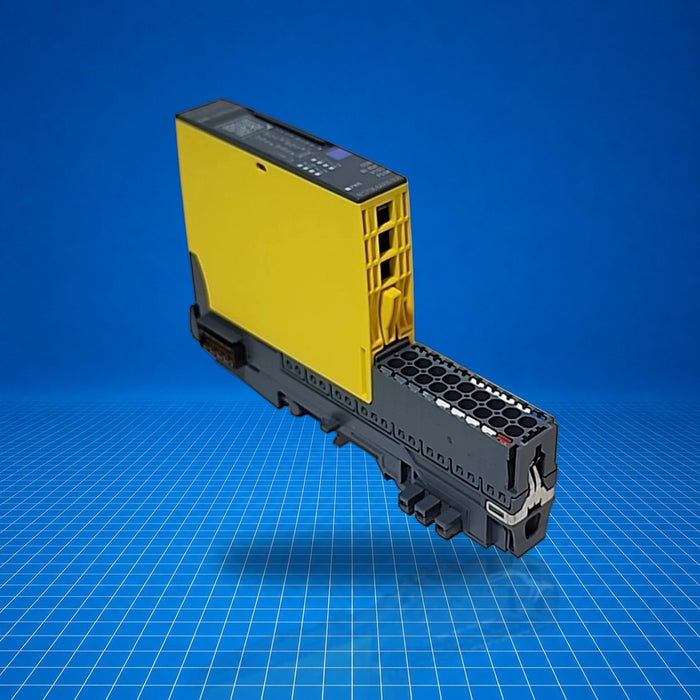

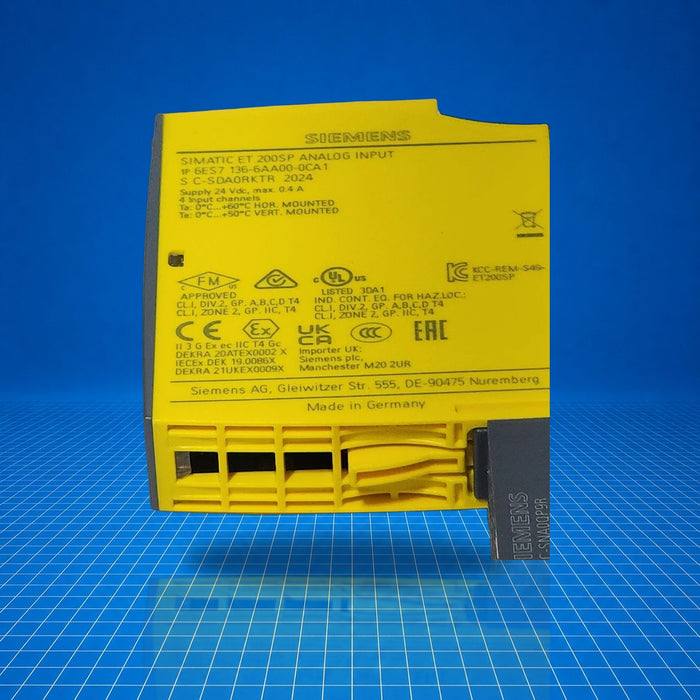

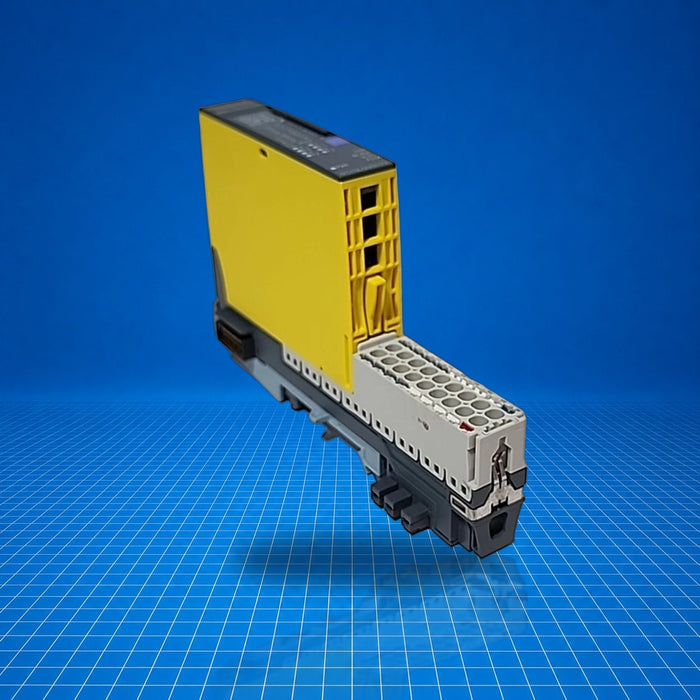

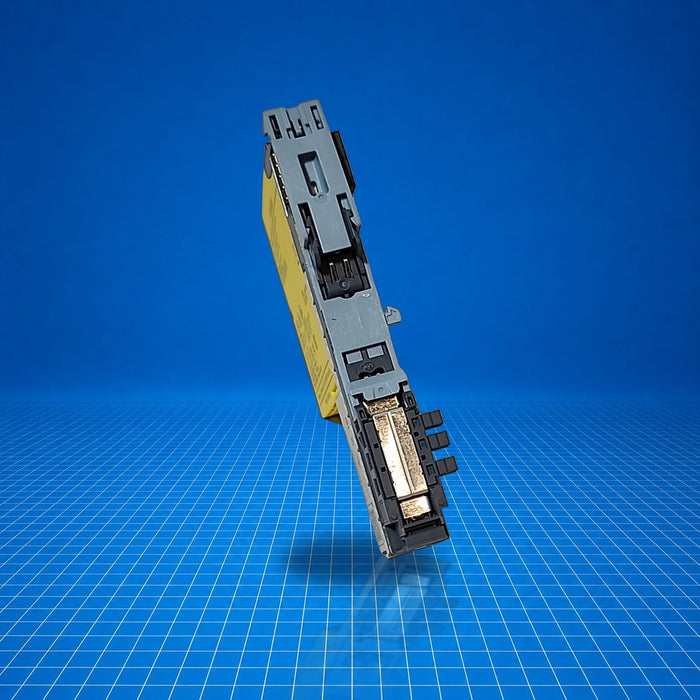

6ES7136-6AA00-0CA1 Siemens

Name: 6ES7136-6AA00-0CA1 Siemens
Brand: Siemens
SKU: 6ES7136-6AA00-0CA1
Price: 2003.39 USD
Availability: InStock

$893.61 - $2,003.39

$2,003.39

$893.61 - $2,003.39

$2,003.39

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens part number 6ES7136-6AA00-0CA1 is a SIMATIC DP electronic analog input module (ET 200SP, F-AI), providing four fail-safe analog inputs (0…20 mA / 4…20 mA, 2- or 4-wire) certified for Performance Level e (ISO 13849) and SIL 3 (IEC 61508). It integrates with the ET 200SP distributed I/O system and is configured via TIA Portal (from version V15 with HSP 203). Typical applications include safety-rated analog data acquisition and processing in machine control, process industries, and safety-critical systems.

Best Suited For

Safety-rated analog measurement tasks (PL e / SIL 3)
Integration in ET 200SP distributed I/O racks
Applications with current-loop sensors (0-20 mA, 4-20 mA)
Diagnostics-intensive safety systems requiring I&M data

Analog Inputs

4 × 0(4)…20 mA

Safety Rating

PL e / SIL 3

Supply Voltage

24 V DC

Current Consumption

0.38 A (typ), 0.4 A (max)

Dimensions (W×H×D)

15 mm × 73 mm × 58 mm

Technical Specifications

I/O & Electrical

Analog input channels

4

Input ranges

0…20 mA, 4…20 mA

Input resistance

125 Ω

Max input current (destruction limit)

35 mA

Communication & Power

Supply voltage

24 V DC (19.2…28.8 V)

Current consumption (typ/max)

0.38 A / 0.4 A

Power consumption (bus)

70 mW

Power loss (typical)

2 W

Physical & Environmental

Width

15 mm

Height

73 mm

Depth

58 mm

Weight

48 g (approx)

Operating temperature

0 °C … 60 °C (horizontal install); 0 °C … 50 °C (vertical install)

Certifications

PL eSIL 3ULATEXIECExCE

Module meets Performance Level e (ISO 13849), SIL 3 (IEC 61508). Includes I&M levels 0-3, reverse-polarity protection, tested isolation 707 V DC. Includes diagnostics: wire-break, short-circuit, supply-voltage monitoring, LED indicators (RUN, ERROR, PWR, channel, module).
