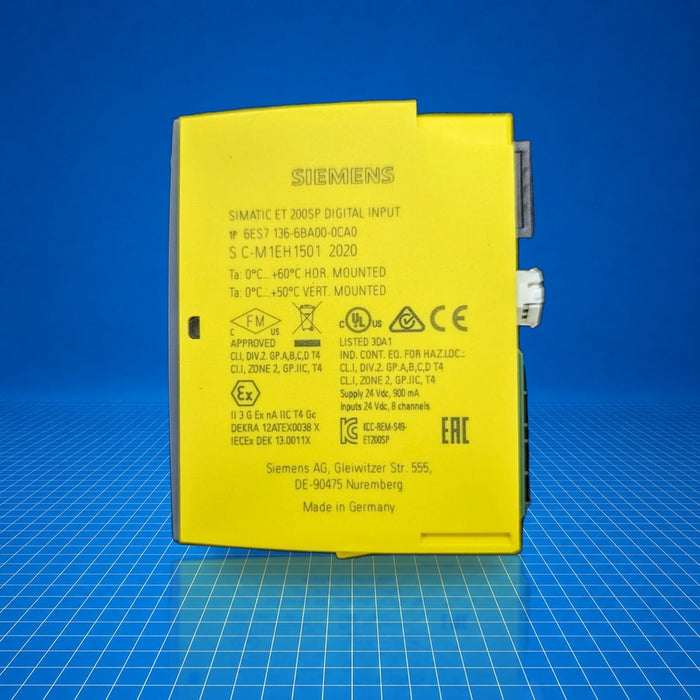

6ES7136-6BA00-0CA0 Siemens
Original price
$400.00
-
Original price
$400.00
Original price
$400.00
$400.00
-
$400.00
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

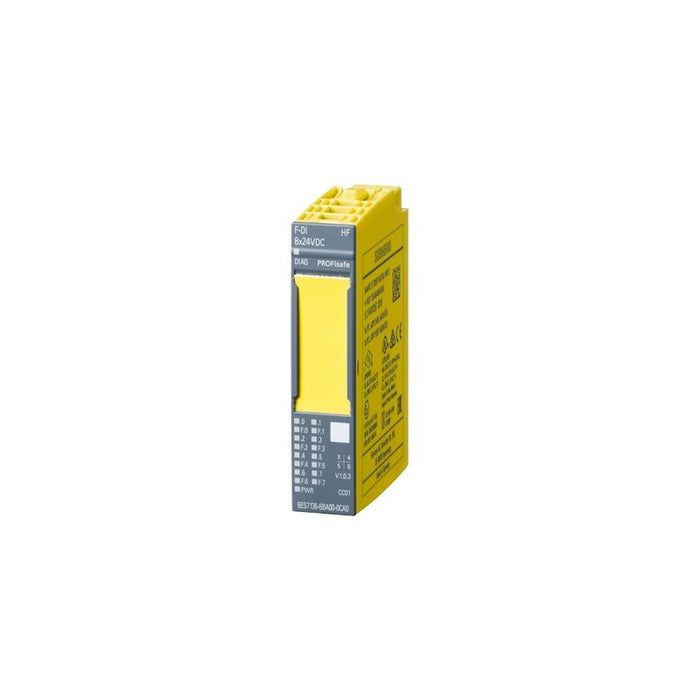

The 6ES7136-6BA00-0CA0 is a Siemens SIMATIC DP electronic digital input module (F-DI 8×24 V DC HF) for the ET 200 SP remote I/O platform. It provides eight fault-safe digital inputs at 24 V DC, with integrated diagnostics and safety ratings up to Performance Level e (ISO 13849-1) and SIL 3 (IEC 61508). The module mounts on a BU type A0 base unit within distributed I/O architectures, commonly employed in machinery safety circuits and functional safety systems.
Best Suited For
- Distributed safety input acquisition in ET 200 SP I/O racks
- Integration into safety control systems requiring PL e / SIL 3
- Compact machinery with space constraints (15 mm width)
- Replacement of discontinued modules (spare part)
Digital inputs
8
Supply voltage
24 V DC
Safety rating
PL e / SIL 3
Module width
15 mm
Backplane power consumption
70 mW
Technical Specifications
I/O & Electrical
Digital inputs
8
Input voltage (rated)
24 V DC
Permissible range (DC)
20.4 V to 28.8 V
Input current (typ. for "1")
3.7 mA
Response delay (0→1)
0.4 ms min, 20 ms max
Short-circuit protection
Yes; electronic (0.7 A to 1.8 A threshold)
Communication & Power
Mounting base unit
BU type A0
Backplane current consumption (no load)
75 mA
Backplane current, max
21 mA
Backplane power consumption
70 mW
Typical power loss
4 W
Physical & Environmental
Module width
15 mm
Height
73 mm
Depth
58 mm
Weight
49 g
Operating temperature
0 °C to 60 °C horizontal, 0 °C to 50 °C vertical
Max installation altitude
4 000 m
Certifications
Safety ratings: Performance Level e (ISO 13849-1), SIL 3 (IEC 61508). Approvals include CCC, cULus, VDE, EAC, DNV, LR, PRS, plus environmental declarations.
