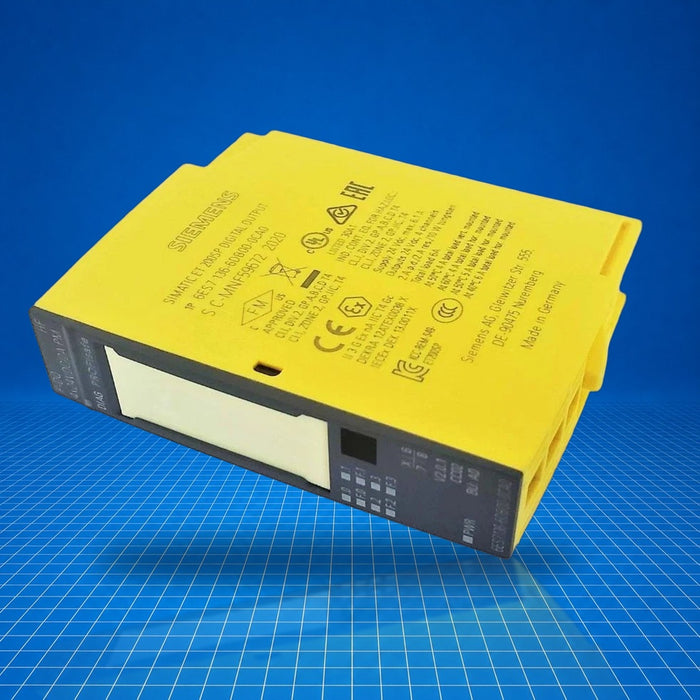

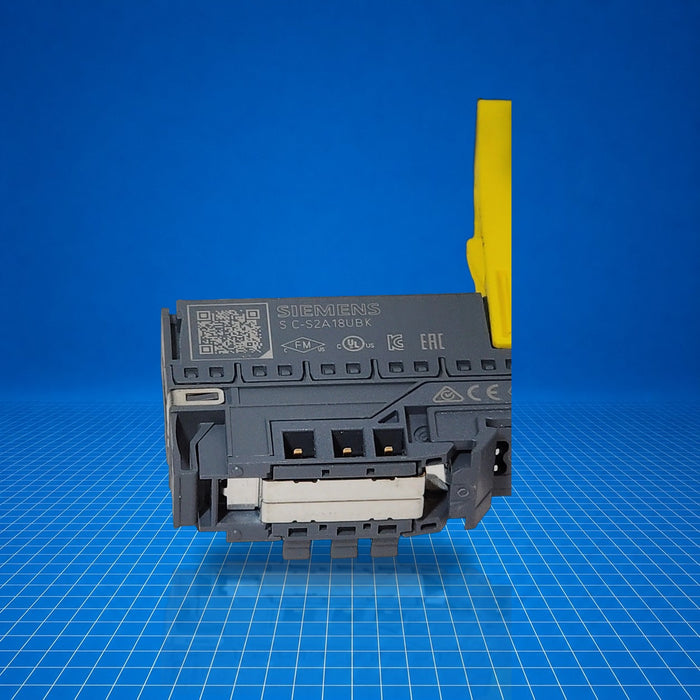

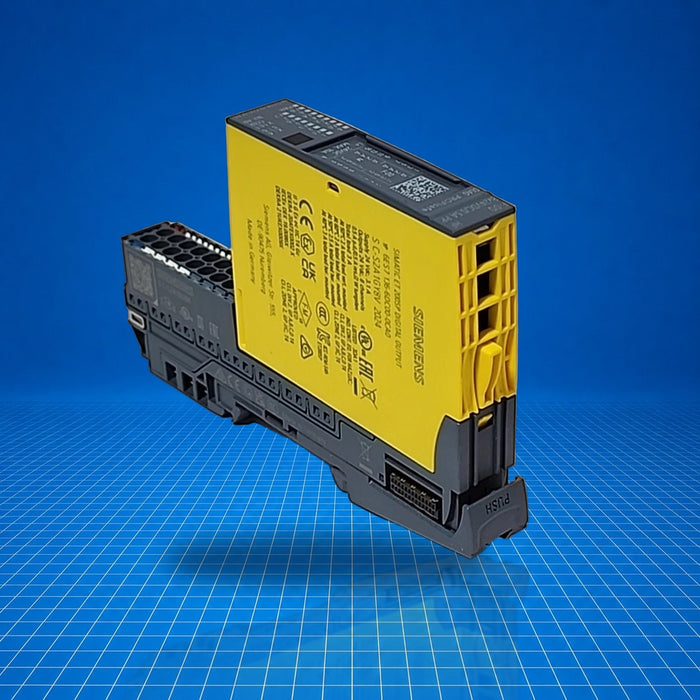

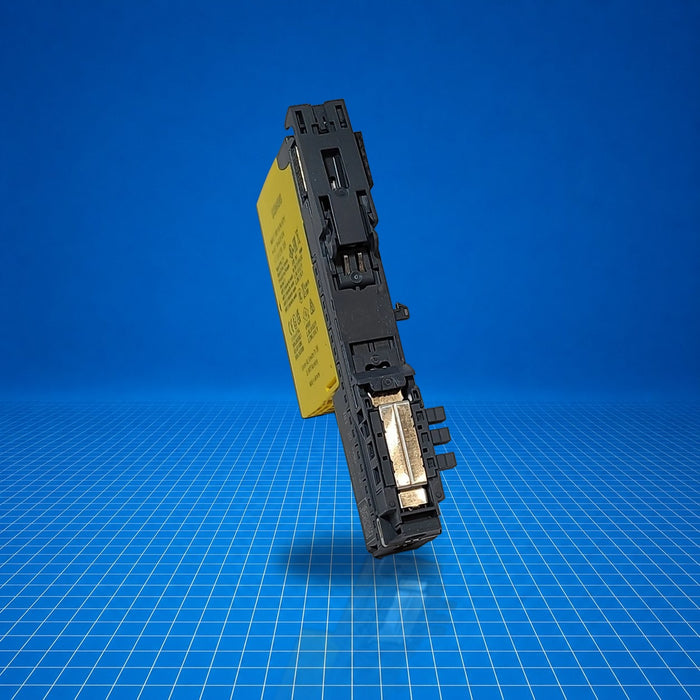

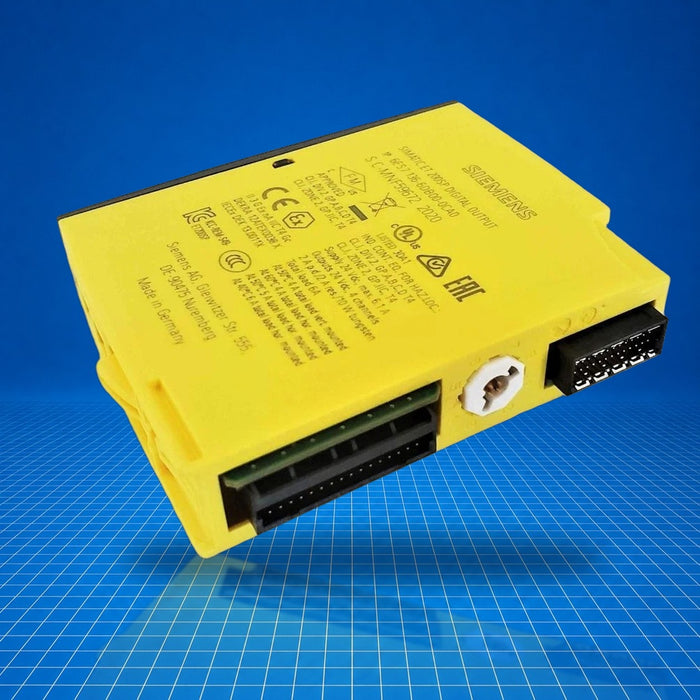

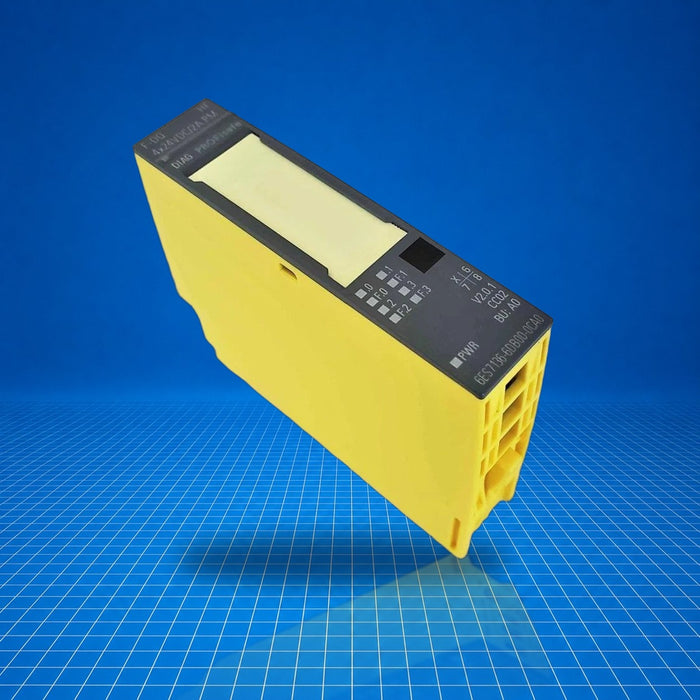

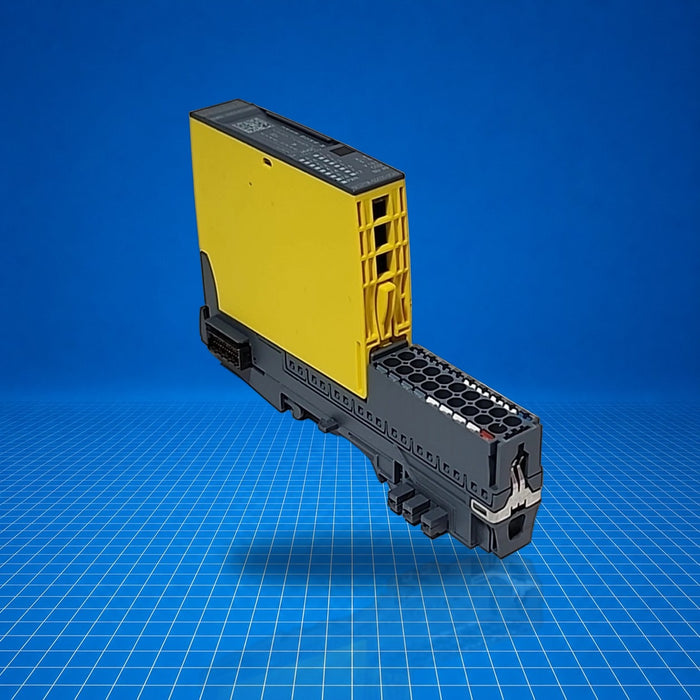

6ES7136-6DB00-0CA0 Siemens

Name: 6ES7136-6DB00-0CA0 Siemens
Brand: Siemens
SKU: 6ES7136-6DB00-0CA0
Price: 357.0 USD
Availability: InStock
Rating: 4.0 (1 reviews)

$357.00 - $525.00

$357.00

$357.00 - $525.00

$357.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (8) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

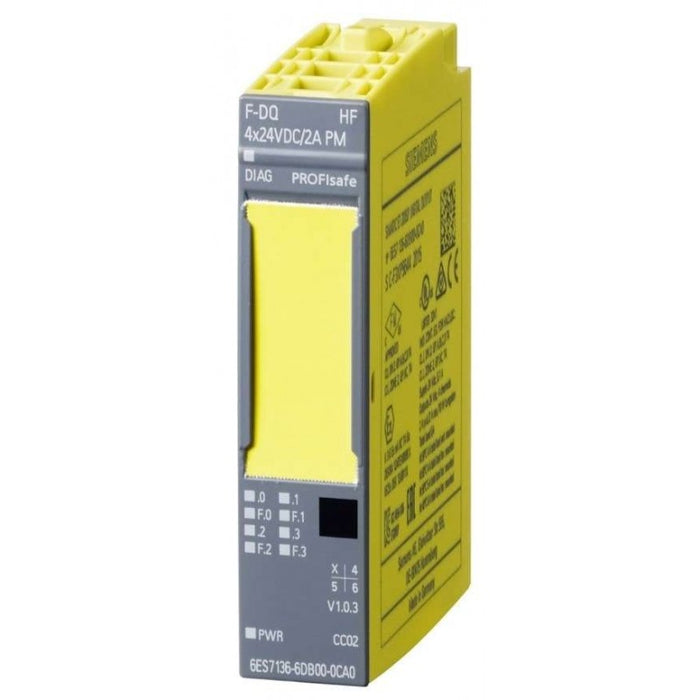

The Siemens SIMATIC DP electronics module 6ES7136-6DB00-0CA0 is a fail-safe digital output module (F-DQ 4 × 24 V DC/2 A) designed for the ET 200SP distributed I/O system. It integrates safety functions up to Performance Level e (ISO 13849) and SIL 3 (IEC 61508). Configurable via STEP 7 (TIA Portal from V12) and operates on PROFIsafe, it delivers diagnostic capability and safe output switching. Typical industrial applications include safety-critical machine control and functional safety integration within ET 200SP systems.

Best Suited For

Safety-critical machine control within ET 200SP systems
Functional safety integration to PLe / SIL 3 standards
Use with STEP 7 (TIA Portal V12 and above) engineering environments
Distributed safety output applications over PROFIsafe

Digital outputs

4 × 24 V DC/2 A

Safety level

PLe / SIL 3

Supply voltage range

19.2-28.8 V DC

Width / Weight

15 mm / 57 g

Diagnostics

Channel-specific LEDs and fault detection

Technical Specifications

I/O & Electrical

Supply voltage (rated)

24 V DC

Supply voltage range

19.2 - 28.8 V DC

Current consumption (without load)

75 mA

Current consumption (backplane bus max)

21 mA

Digital outputs

4

Output voltage (rated)

24 V DC

Output current per channel (rated)

2 A

Total current per module (max)

6 A

Switching capacity (resistive)

2 A (max)

Switching capacity (lamp load)

10 W (max)

Switching frequency (resistive)

30 Hz (max)

Switching frequency (inductive)

0.1 Hz (max)

Switching frequency (lamp load)

10 Hz (max)

Short-circuit protection

Yes

Overload protection

Yes

Open-circuit detection

Yes

Response threshold (short-circuit)

> 3.3 A

Response threshold (overload)

2.9 A

Response threshold (open-circuit)

8 mA

Inductive shutdown voltage limitation

Typ. -2 × 47 V

Communication & Power

Backplane power consumption

70 mW

Power loss (typical)

4 W

Physical & Environmental

Width

15 mm

Height

73 mm

Depth

58 mm

Weight

57 g

Ambient temperature (horizontal install)

0 °C to 60 °C

Ambient temperature (vertical install)

0 °C to 50 °C

Installation altitude

≤ 4 000 m (restrictions > 2 000 m)

Certifications

PLeSIL 3PROFIsafeULATEXIECExEACRCM

Complies with ISO 13849-1 (PLe), IEC 61508 (SIL 3); PROFIsafe; UL, ATEX, IECEx, various maritime classification approvals; environmental declarations.
