6ES7136-6DC00-0CA0 Siemens

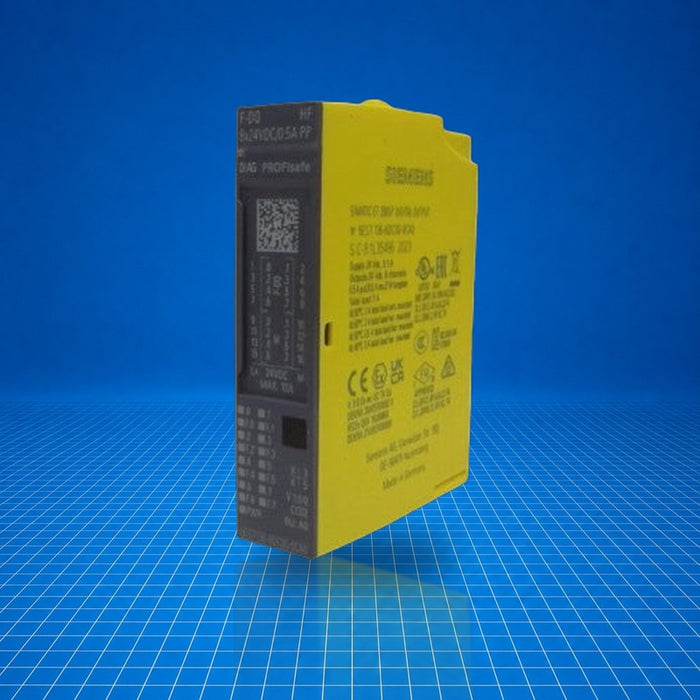

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7136-6DC00-0CA0 Siemens

$684.75 - $756.25
$684.75
$684.75 - $756.25
$684.75
Surplus - Tested (With Warranty)
Need a Specific Revision?
$684.75
6 in stock
New / Open-Box Surplus
Need a Specific Revision?
$756.25
6 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (6) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens part number 6ES7136-6DC00-0CA0 is a SIMATIC DP electronic module from the ET 200SP series. It functions as a failsafe digital output module (F-DQ 8×24 V DC/0.5 A PP HF) designed for performance levels up to PL e (ISO 13849-1) and SIL 3 (IEC 61508). In a control system, it provides eight independently parameterizable transistor outputs with integrated short-circuit protection and diagnostic capabilities. Typical applications include safety-critical distributed automation systems in machinery, process, and manufacturing environments.

Best Suited For

  • Failsafe distributed ET 200SP configurations
  • Safety-critical applications requiring PL e / SIL 3 compliance
  • Compact backplane-mounted I/O expansion
  • Control system upgrade or retrofit with ET 200SP I/O
Digital outputs
8 channels
Output current per channel
0.5 A
Supply voltage range
19.2 - 28.8 V DC
Performance / Safety integrity
PL e / SIL 3
Module width
15 mm

Technical Specifications

I/O & Electrical

Supply voltage (rated)
24 V DC
Supply voltage range
19.2 V - 28.8 V DC
Reverse polarity protection
Yes
Current consumption (rated)
75 mA (without load)
Current consumption (max backplane)
21 mA
Power from backplane bus
70 mW
Power loss, typ.
3 W
Output type
Transistor
Short-circuit protection
Yes (response threshold typ. 0.7 A)
Switching capacity resistive load
0.5 A
Switching capacity lamp load
2 W
Output current '1' rating
0.5 A
Residual current '0'
0.5 mA (max)
Switching frequency resistive
30 Hz
Total current per module (≤40 °C)
3 A
Total current per module (≤50 °C)
2.5 A (horizontal) / 2 A (vertical)
Cable length max.
100 m shielded/unshielded

Communication & Power

FW update possible
Yes
Configurable in STEP 7 TIA Portal from
V14 SP1 with HSP 202
PROFINET GSD revision
V2.31
I&M data version
I&M0 to I&M3
Automatic encoding
Yes
Electronic coding element type F
Yes

Physical & Environmental

Width
15 mm
Height
73 mm
Depth
58 mm
Weight
≈ 48 g
Ambient temperature (horizontal)
0 °C to 60 °C
Ambient temperature (vertical)
0 °C to 50 °C
Installation altitude max.
4000 m

Certifications

PL eSIL 3ULFMATEXIECExABSDNVLRRCMEACCCC-ExEU-Declaration of ConformityUK-Declaration of Conformity

Suitable for safety functions (PL e / SIL 3). Compliance includes UL, FM, ATEX, IECEx, ABS, DNV, LR, RCM, EAC, CCC-Ex, EU/UK declaration of conformity.
