6ES7137-6BD00-0BA0 Siemens
Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7137-6BD00-0BA0 Siemens

$1,375.08 - $3,893.75
$3,893.75
$1,375.08 - $3,893.75
$3,893.75
Surplus - Tested (With Warranty)
Need a Specific Revision?
$3,893.75
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,375.08
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

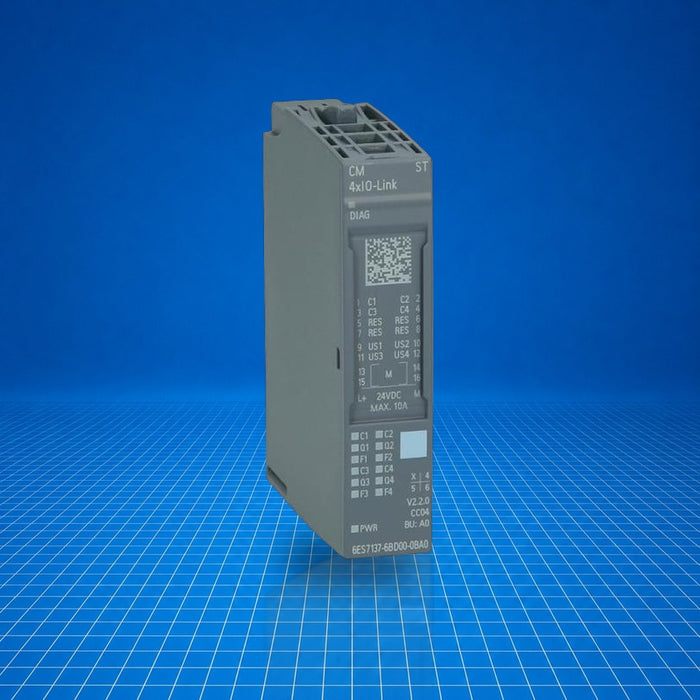

The 6ES7137-6BD00-0BA0 is a SIMATIC ET 200SP CM 4×IO-Link ST communication module serving as an IO-Link Master (version 1.1) within Siemens' ET 200SP distributed I/O system. It enables connection of up to four IO-Link devices to a PROFINET or PROFIBUS-based control system. Commonly deployed in machine-level automation and sensor/actuator networks where IO-Link integration is required, this module supports process data exchange, port diagnostics, and device parameter storage. 6ES7137-6BD00-0BA0 is configured via TIA Portal or STEP 7.

Best Suited For

  • Distributed IO-Link integration in ET 200SP racks
  • Machine-level sensor/actuator connectivity
  • Diagnostic-aware IO-Link device deployment
  • Compact automation stations with IO-Link devices
IO-Link ports
4
Voltage range
24 V DC (20.4 … 28.8 V)
Output current per channel
700 mA
Typical power loss
1 W
Operating temp
-30 … 60 °C (horizontal)

Technical Specifications

I/O & Electrical

Supply voltage
24 V DC
Voltage range
20.4 … 28.8 V DC
Input current, max.
45 mA (without load)
Output current per channel
700 mA
Output current, max. (encoder supply)
2.1 A
Power loss (typ.)
1 W

Communication & Power

IO-Link ports
4 (simultaneously controllable)
IO-Link protocols
1.0; 1.1
Transmission rates
4.8 kBaud (COM1); 38.4 kBaud (COM2); 230.4 kBaud (COM3)
Cycle time, min.
2 ms (dynamic, depending on user data length)
Process data input per port
32 byte (max.)
Process data input per module
144 byte (max.)
Process data output per port
32 byte (max.)
Process data output per module
128 byte (max.)
Memory size per port
2 kbyte
Master backup
Yes
Configuration without S7-PCT
Yes
Cable length, unshielded (max.)
20 m

Physical & Environmental

Dimensions W×H×D
13 mm × 73 mm × 58 mm
Weight
≈ 30 g
Operating temperature (horizontal)
-30 … 60 °C
Operating temperature (vertical)
-30 … 50 °C
Altitude (max.)
2 000 m
Isolation tested with
707 V DC (type test)

Certifications

ULATEXIECExCEEACRCMABSBVDNVLRRINARMRS

Environmental product declaration available. Approvals include EU and UK declarations of conformity, China RoHS, UL, RCM, EAC, ATEX, IECEx, ABS, BV, DNV, LR, RINA, RMRS, Maritime classification, plus EPD Type II/III (with life-cycle assessment).
