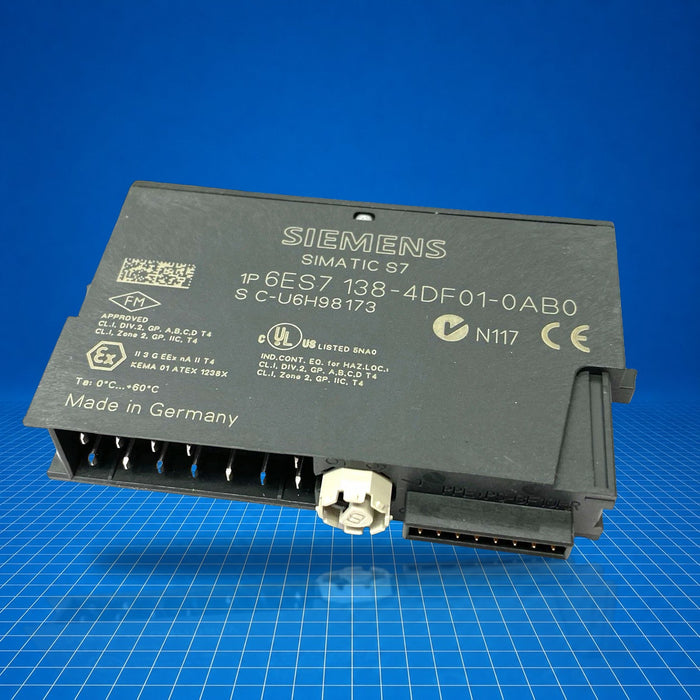

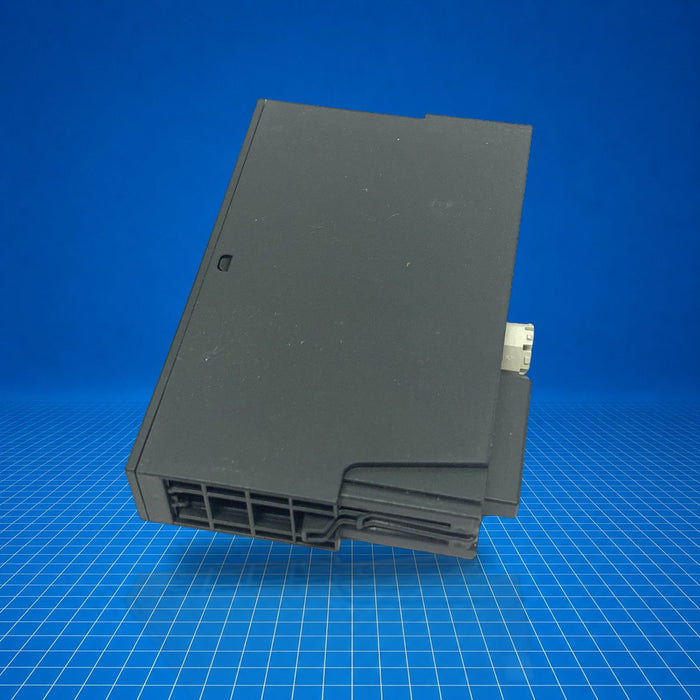

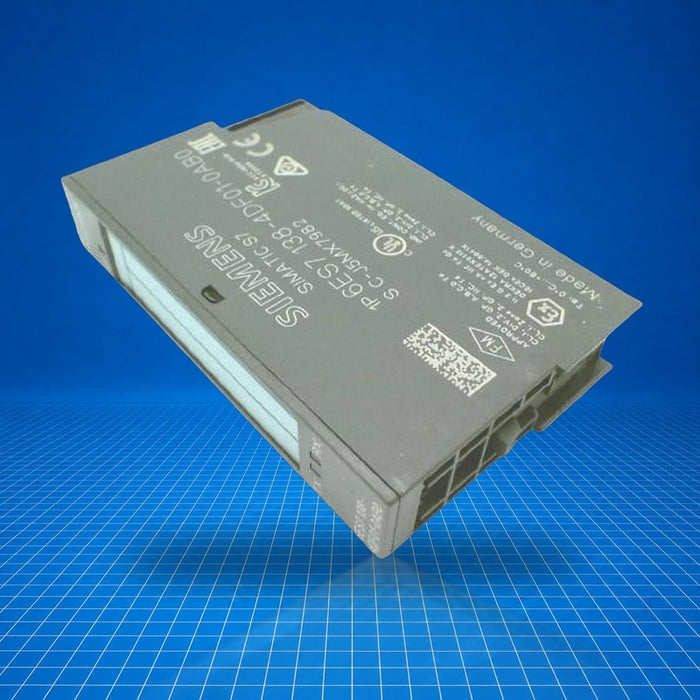

6ES7138-4DF01-0AB0 Siemens
Original price
$357.00
-
Original price
$375.00
Original price
$357.00
$357.00
-
$375.00
Current price
$357.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

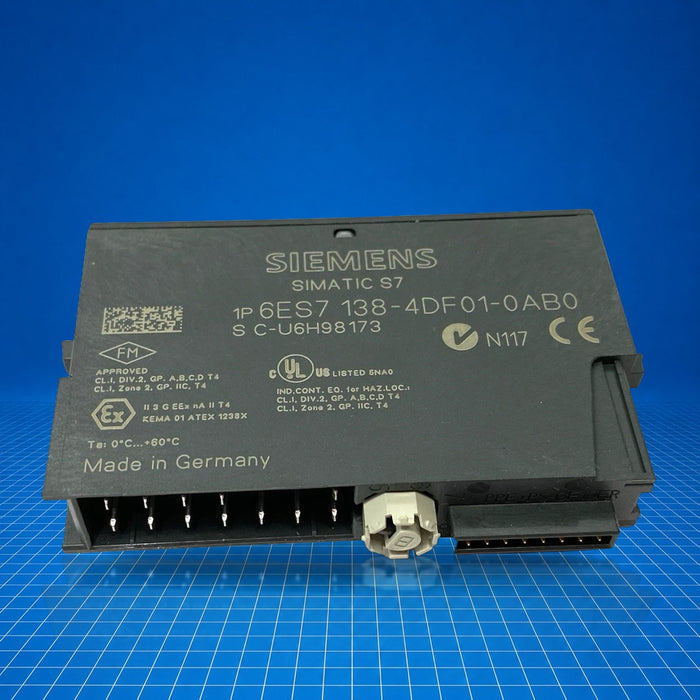

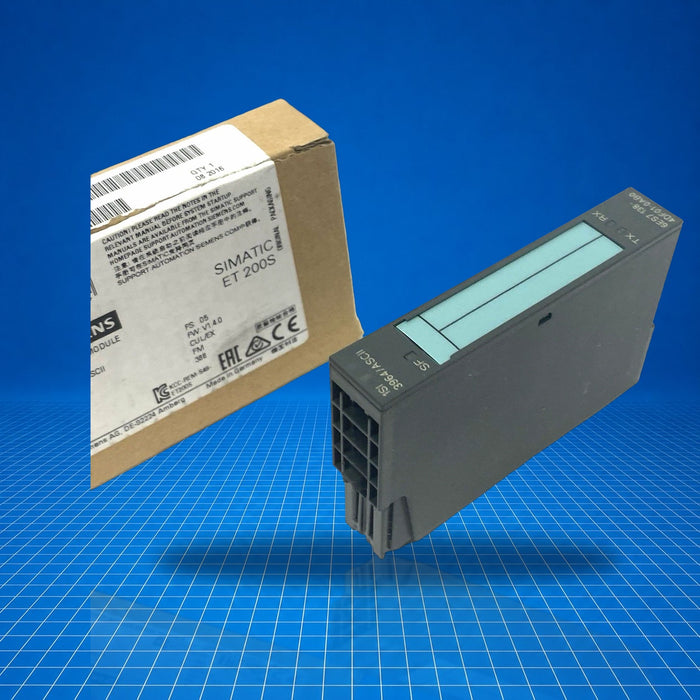

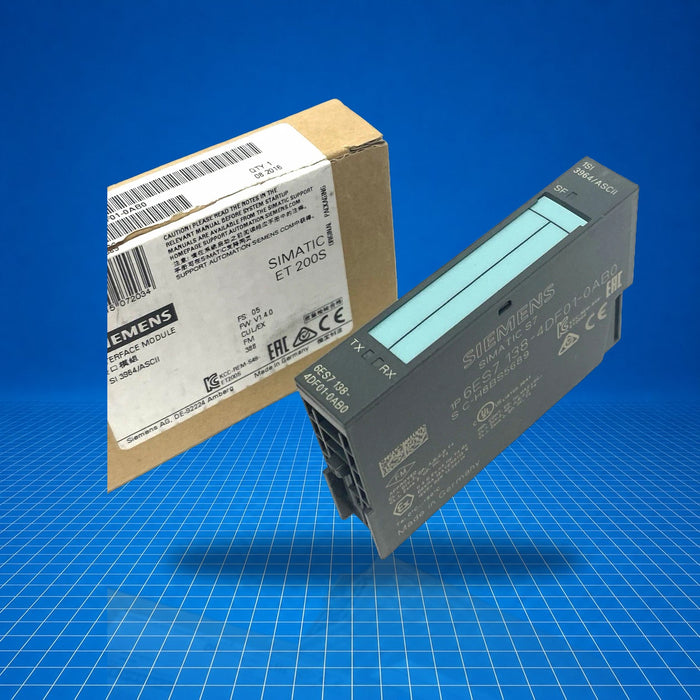

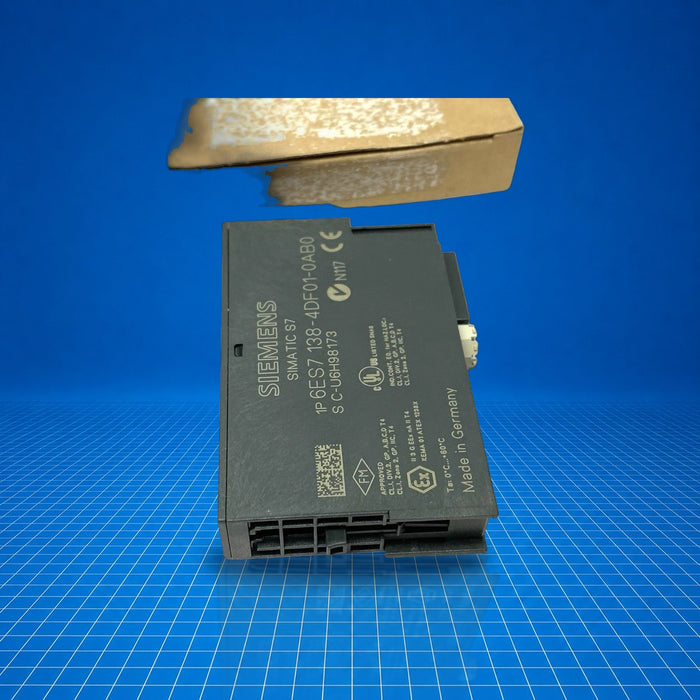

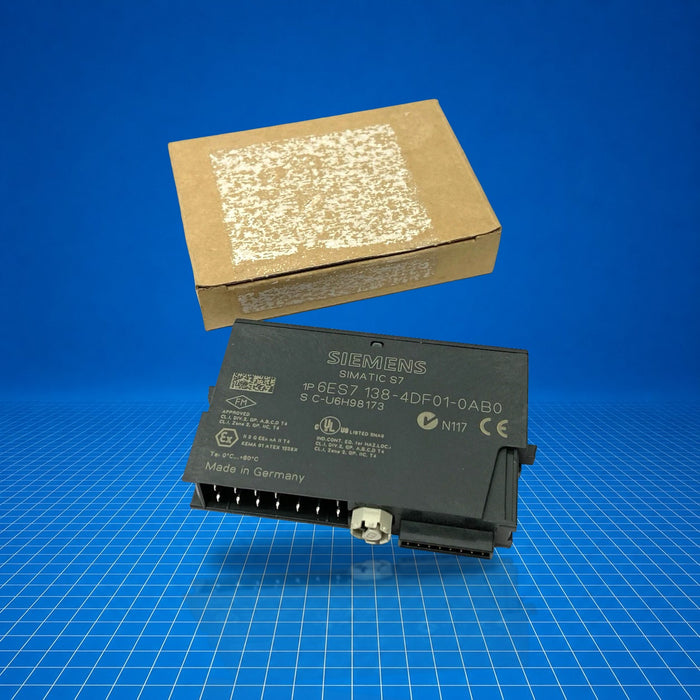

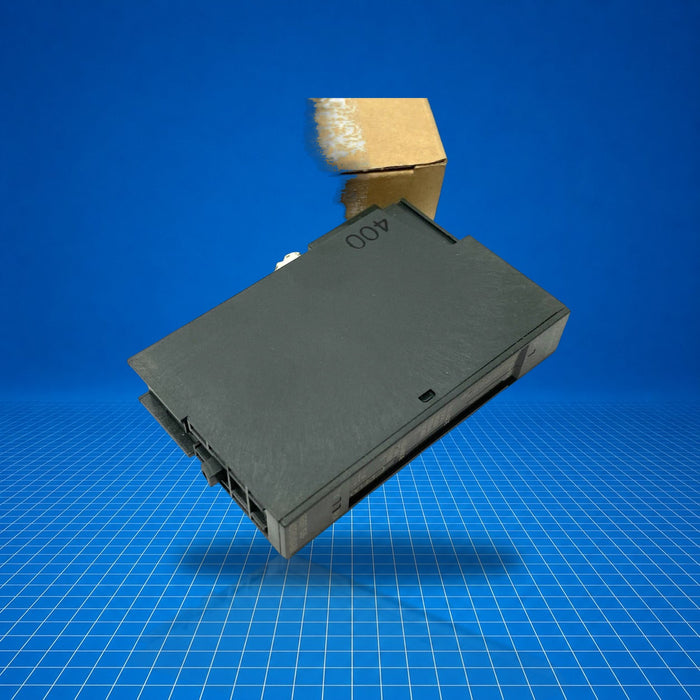

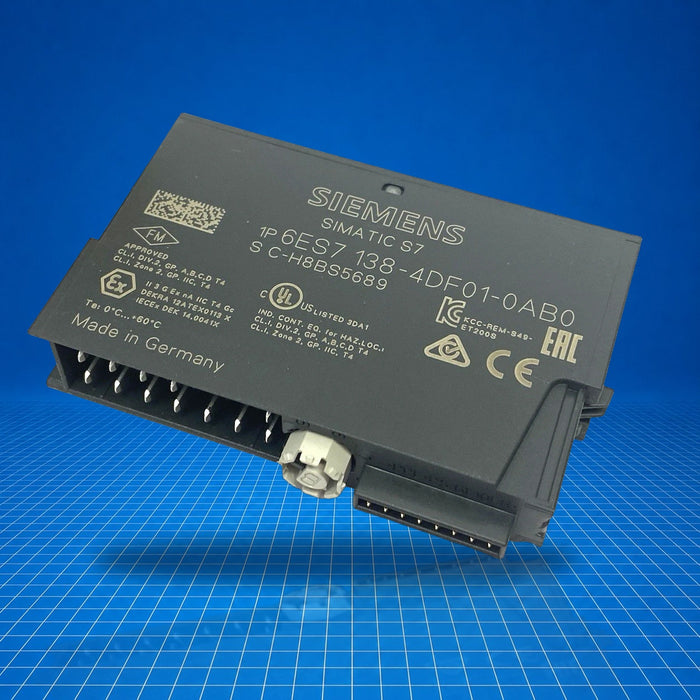

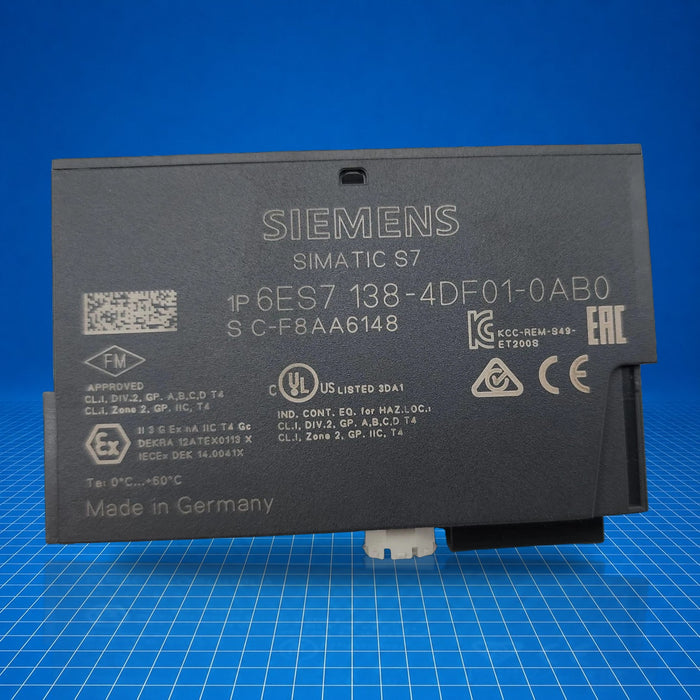

The 6ES7138-4DF01-0AB0 is a Siemens SIMATIC ET 200S electronic interface module ("1 SI") that provides a single-channel serial communication link supporting RS-232C, RS-422, and RS-485 physical layers and ASCII or 3964(R) protocol processing. It occupies 15 mm of DIN-rail width and mounts onto an ET 200S distributed I/O assembly. It connects serial field devices into a PROFIBUS-DP (SIMATIC DP) control system. Typical applications include integration of older serial instruments, barcode readers, or legacy devices into ET 200S installations.
Best Suited For
- Integrating legacy serial devices (RS-232/422/485) into ET 200S systems
- Implementing ASCII or 3964(R) protocol communication in ET 200S
- Fieldbus expansion where compact interface modules are required
- Spare-part replacement for existing ET 200S serial interface modules
Interface channel
1
Serial protocols
ASCII, 3964(R)
Physical layers
RS-232C, RS-422, RS-485
Width
15 mm
Supply voltage
24 V DC
Technical Specifications
I/O & Electrical
Supply voltage (DC)
24 V
Reverse-polarity protection
Yes
Input current from L+ (max.)
120 mA
Input current from backplane 3.3 V (max.)
10 mA
Power loss, typical
1.2 W
Communication & Power
Number of interfaces
1
Supported protocols
ASCII; 3964(R)
Telegram length (max.)
224 byte (ASCII and 3964(R))
Transmission rate (RS-422/485) max
115.2 kbit/s (half-duplex for 3964(R); full-duplex for ASCII)
Transmission rate (RS-232) max
115.2 kbit/s (as for RS-422/485- see above)
