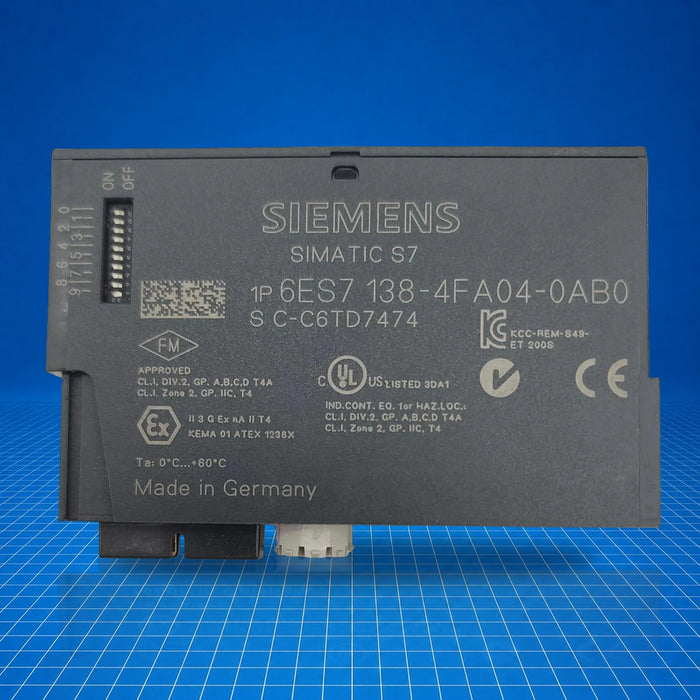

6ES7138-4FA04-0AB0 Siemens
Original price
$400.00
-
Original price
$1,480.13
Original price
$400.00
$400.00
-
$1,480.13
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7138-4FA04-0AB0 is a fail-safe electronics module for the SIMATIC ET 200S distributed I/O system. It provides safe digital inputs in a PROFIsafe configuration, with 4 (single-channel) or 8 (redundant-channel) F-DI inputs at 24 V DC. It supports functional safety to EN 954-1 Category 4, IEC 61508 SIL 3, ISO 13849-1 PLe, and can integrate into PROFINET architectures via IM 151-3 HF. 6ES7138-4FA04-0AB0 fits a standard 30 mm ET 200S module width.
Best Suited For
- Functional safety in ET 200S PROFIsafe I/O setups
- Safety input expansion up to SIL 3 / PL e
- Distributed safety on machine perimeters
- Replacement or spare of discontinued module series
Safe inputs
4/8 F-DI 24 V DC
Functional safety rating
Category 4 / PLe / SIL 3
Module width
30 mm
Status diagnostics
LED: group error (red), output status (green)
Power loss
typ. 3.5 W
Technical Specifications
I/O & Electrical
Safe digital inputs
4 (single-channel) or 8 (redundant-channel) F-DI, 24 V DC
Input voltage (load voltage L+)
24 V DC
Reverse polarity protection
No
Communication & Power
Backplane bus current, max
28 mA from 3.3 V DC
Power loss, typ.
3.5 W
Physical & Environmental
Dimensions (W × H × D)
30 mm × 81 mm × 52 mm
Weight, approx.
85 g
Cable length max (shielded/unshielded)
500 m / 500 m
Total current outputs (horizontal up to 40 °C)
6 A
Certifications
EN 954-1 Cat 4ISO 13849-1 PLeIEC 61508 SIL 3Isolation 500 V DC
Safety per EN 954-1 Cat 4, IEC 61508 SIL 3, ISO 13849-1 PLe; isolation tested to 500 V DC.
