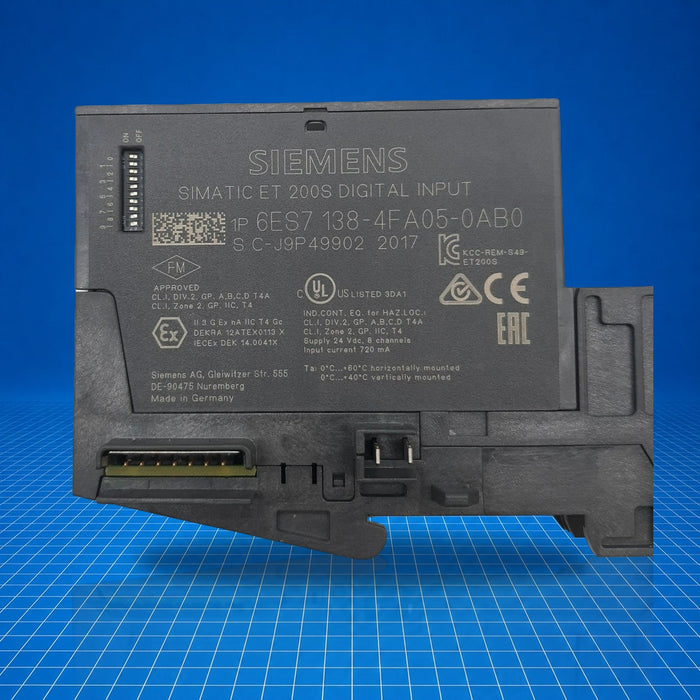

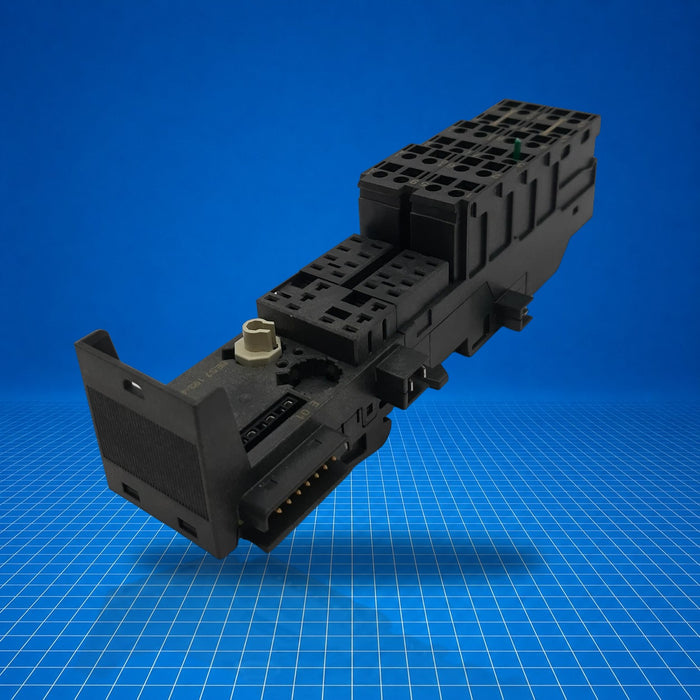

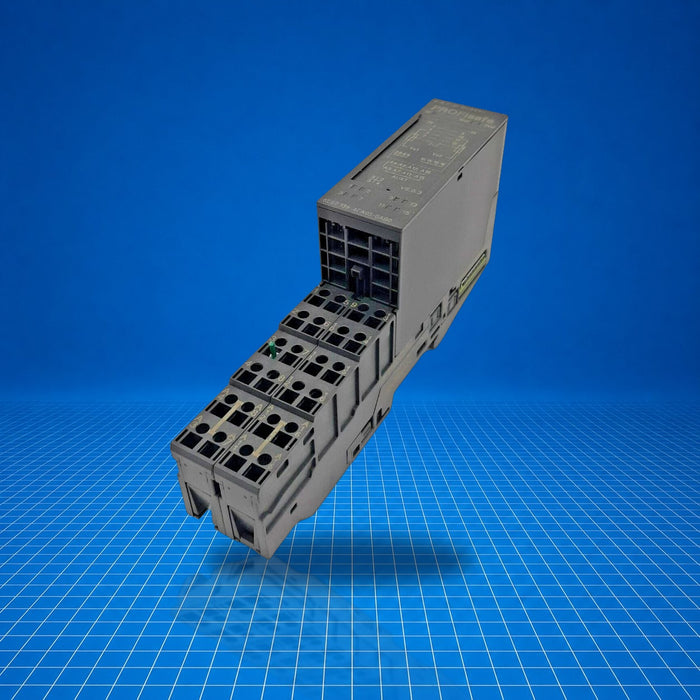

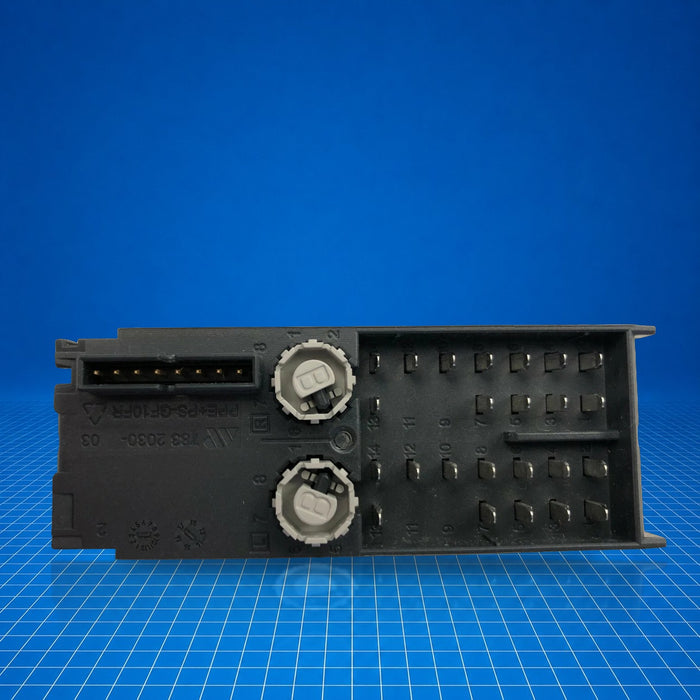

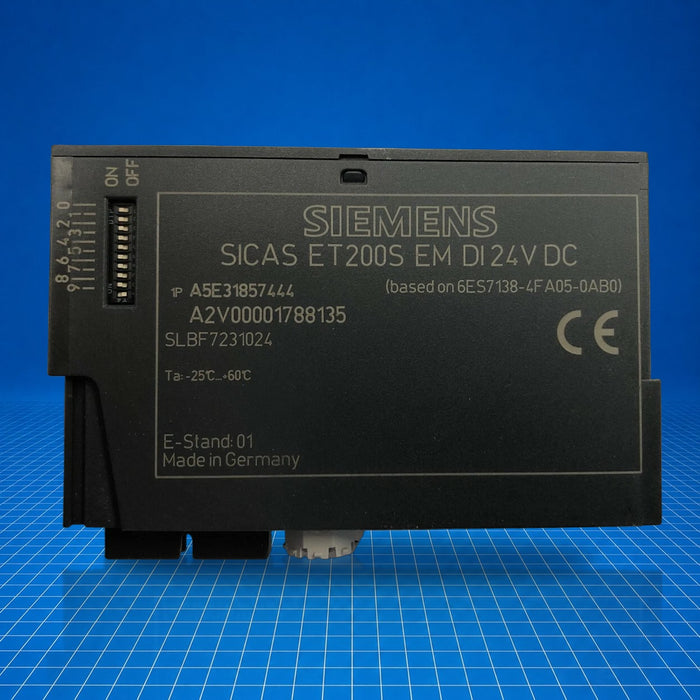

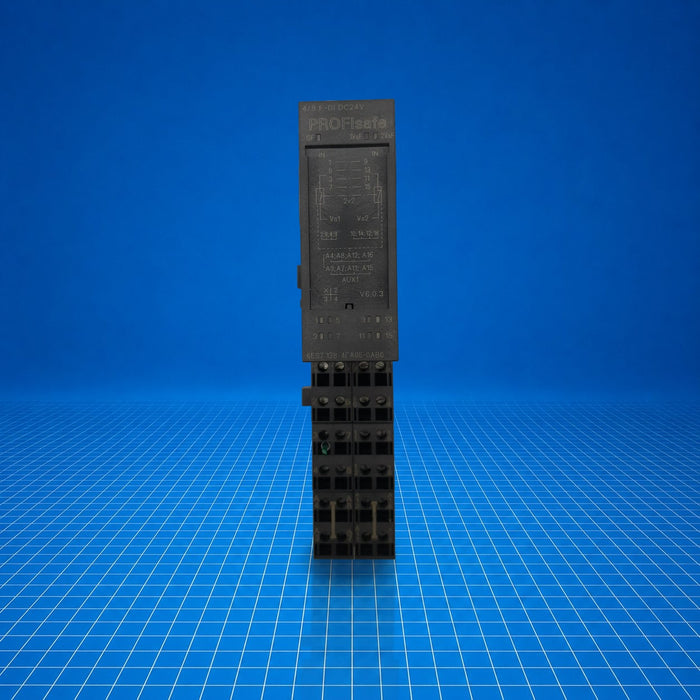

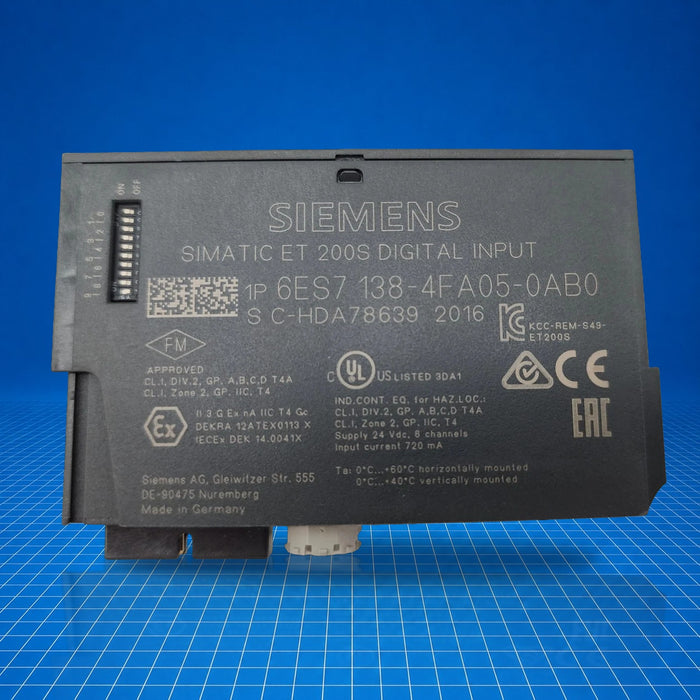

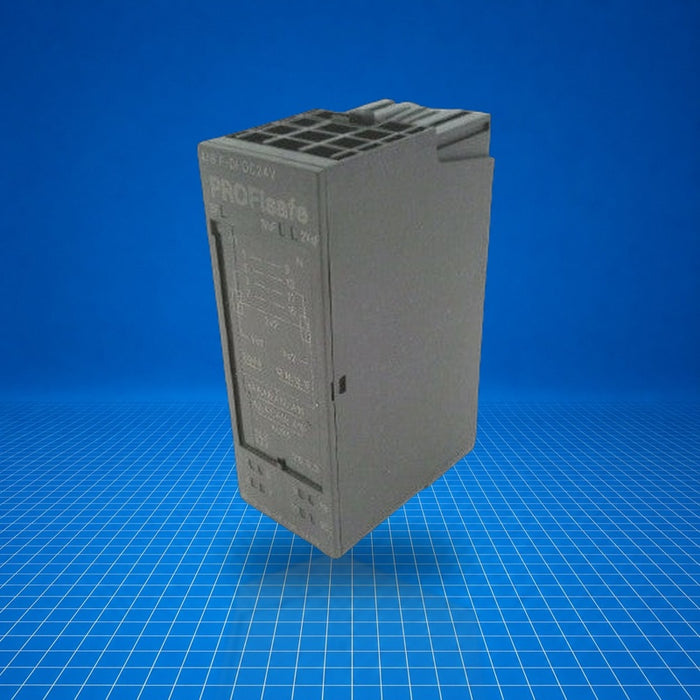

6ES7138-4FA05-0AB0 Siemens

Name: 6ES7138-4FA05-0AB0 Siemens
Brand: Siemens
SKU: 6ES7138-4FA05-0AB0
Price: 400.0 USD
Availability: InStock

$400.00 - $962.50

$400.00

$400.00 - $962.50

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens module 6ES7138-4FA05-0AB0 is a PROFIsafe-capable electronic I/O module for the SIMATIC ET 200S distributed I/O system. It provides four safe digital inputs and two safe digital outputs (4/8 F-DI PROFIsafe) at 24 V DC, enabling functional safety to Performance Level e (PL e per ISO 13849-1), up to SIL 3 (IEC 61508), and Category 4 (EN 954-1) when used with PROFIsafe-configured IM 151-3 HF interface modules. It occupies a 30 mm wide segment and is suited for safety-critical control tasks in industrial automation, such as emergency stop or safety gate monitoring. Part number 6ES7138-4FA05-0AB0.

Best Suited For

Fail-safe safety gate or emergency-stop circuit integration
SIMATIC ET 200S deployments with PROFIsafe
Applications requiring up to PL e / SIL 3 safety performance
Replacement or spare in systems using IM 151-3 HF PROFIsafe interfaces

Safe Inputs / Outputs

4 F-DI / 8 F-DI, 2 F-DQ outputs

Supply Voltage

24 V DC

Safety Level

up to PL e / SIL 3

Power Dissipation (typ.)

4 W

Module Width

30 mm

Technical Specifications

I/O & Electrical

Digital inputs

8 (one-channel) or 4 (two-channel)

Digital outputs

2 safe outputs

Type of input voltage

DC 24 V

Input current for "1"

3.7 mA

Output current (rated)

300 mA

Short-circuit protection

Electronic (response threshold 0.7 A to 1.8 A)

Communication & Power

Power dissipation (typ.)

4 W

Communication

Use with PROFIsafe via IM 151-3 HF (PROFINET) or SIMATIC DP interface

Physical & Environmental

Width

30 mm

Height

81 mm

Depth

52 mm

Weight

≈ 78 g

Cable length (shielded/unshielded, max.)

500 m

Certifications

PL eSIL 3Category 4RoHS

Achieves Performance Level e (ISO 13849-1), SIL 2 single-channel / SIL 3 two-channel (IEC 61508), Category 4 (EN 954-1).
