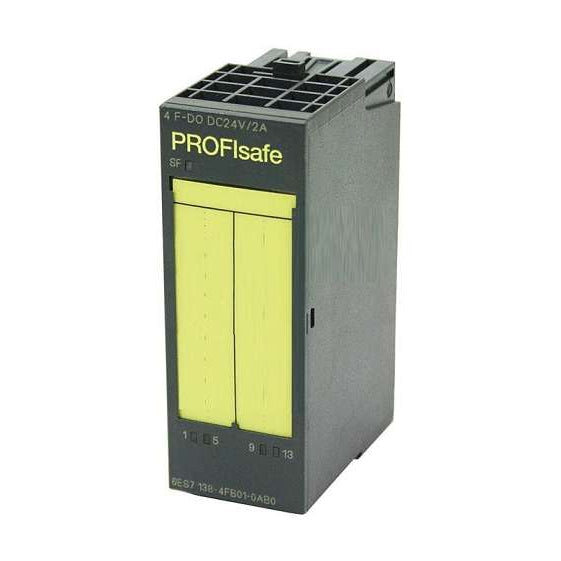

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7138-4FB01-0AB0 Siemens
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
SIMATIC DP ET 200S electronics module 6ES7138-4FB01-0AB0 is a PROFIsafe-certified 4-channel digital output module, 24 V DC/2 A, designed for functional safety up to EN 954-1 Cat. 4, ISO 13849-1 PL E, IEC 61508 SIL 3. It mounts on ET 200S distributed I/O systems on a Profibus DP or PROFINET interface. Typical uses include safety-critical applications requiring safe digital output switching within modular, scalable control architectures.
Best Suited For
- Safety-critical digital actuation in ET 200S systems
- Applications requiring PROFIsafe outputs at 24 V DC/2 A per channel
- Integration with existing Profibus DP or PROFINET ET 200S platforms
- Retrofit or replacement of earlier F-DO modules with same footprint
Safety-certified outputs
4 PROFIsafe output channels
Output capability
2 A per channel
Supply voltage
24 V DC
Module width
30 mm
Safety standards
EN 954-1 Cat. 4 / ISO 13849-1 PL E / IEC 61508 SIL 3
Technical Specifications
I/O & Electrical
Digital output channels
4 (PROFIsafe)
Output current (rated) per channel
2 A
Output current permissible max
2.4 A
Residual current at "0"
0.5 mA
Communication & Power
Supply voltage (load voltage L+)
24 V DC
Input current (from L+, no load)
100 mA
Power loss (typical)
3.5 W
Physical & Environmental
Module width
30 mm
Certifications
EN 954-1 Cat. 4ISO 13849-1 PL EIEC 61508 SIL 3
Safety-certified to EN 954-1 Category 4, ISO 13849-1 Performance Level E, IEC 61508 SIL 3.
