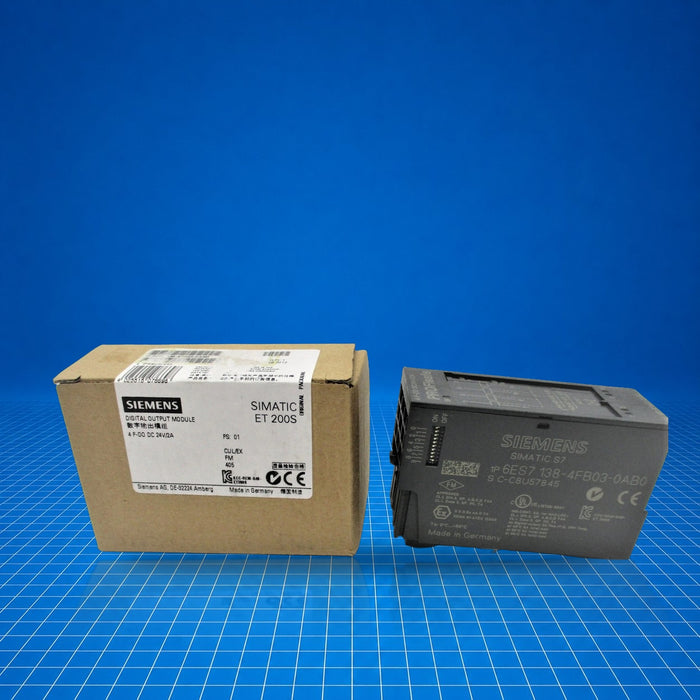

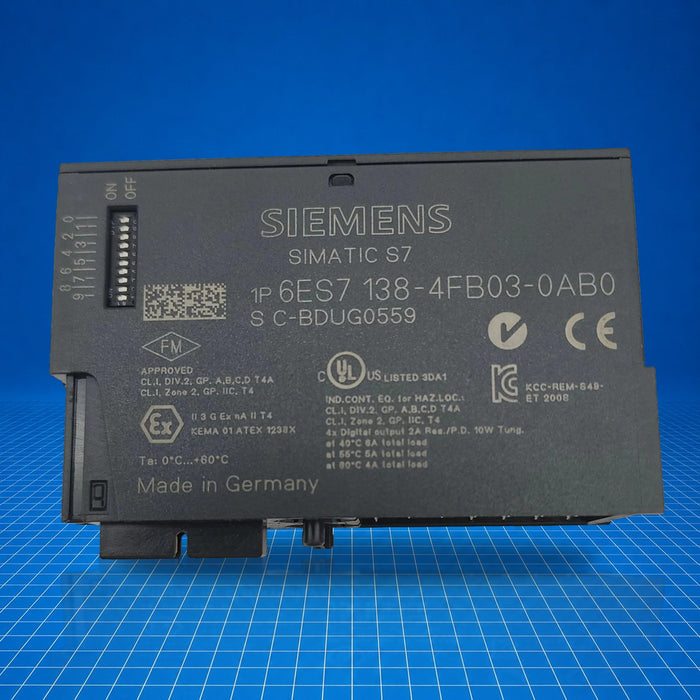

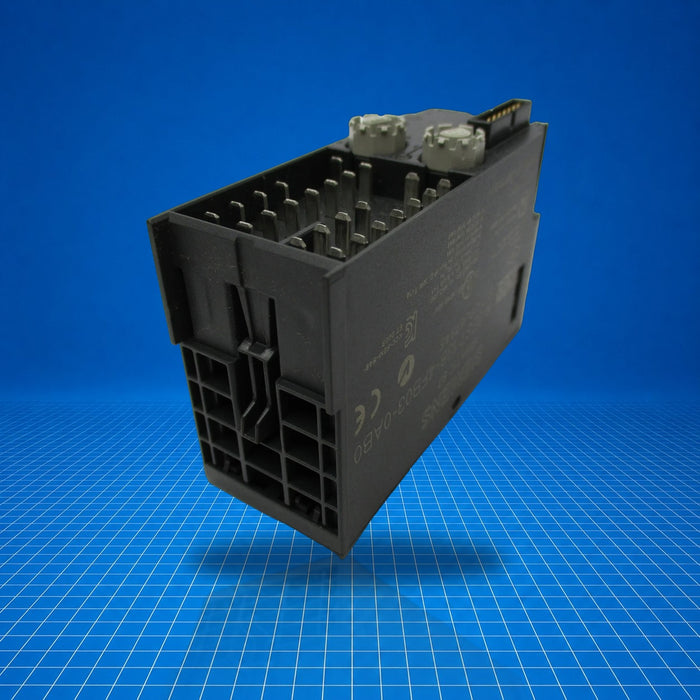

6ES7138-4FB03-0AB0 Siemens

Name: 6ES7138-4FB03-0AB0 Siemens
Brand: Siemens
SKU: 6ES7138-4FB03-0AB0
Price: 345.0 USD
Availability: InStock

$345.00 - $1,680.08

$345.00

$345.00 - $1,680.08

$345.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (6) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC ET 200S electronics module 6ES7138-4FB03-0AB0 is a failsafe Digital Output (F-DO) module offering four transistor outputs. Designed for integration into SIMATIC DP systems, it provides PROFIsafe signaling with 24 V DC supply and up to 2 A output per channel. The 30 mm-wide module meets Category 4 (EN 954-1), SIL 3 (IEC 61508) and PL E (ISO 13849) safety standards. It is suitable for distributed failsafe output tasks in industrial automation systems and can also be deployed in PROFINET configurations with an IM 151-3 HF interface. Part number 6ES7138-4FB03-0AB0 is used throughout this description.

Best Suited For

Failsafe output switching in ET 200S distributed I/O systems
Safety control within SIMATIC DP-based applications
Integration with SINAMICS drives requiring failsafe outputs
Retrofit or replacement for ET 200S safety output modules

Digital outputs

4 F-DO transistor outputs

Supply voltage

24 V DC

Output current per channel

2 A (rated)

Safety rating

SIL 3 / PL E / Cat 4

Module width

30 mm

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC

Reverse-polarity protection

No

Input current (no load) from L+

100 mA (typ.)

Backplane bus current at 3.3 V

28 mA (max.)

Power loss

3.5 W (typ.)

Digital output type

Transistor

Short-circuit protection

Yes

Lamp load max

10 W

Load resistance range

12 Ω - 1 kΩ

Output voltage '1'

L+ (-2.0 V), sourcing: L+ (-1.5 V), sinking switch voltage drop max 0.5 V

Output current '1' rated

2 A

Min/max output current '1'

20 mA - 2.4 A

Residual current '0' max

0.5 mA (sourcing); 4 mA (sinking)

Physical & Environmental

Module width

30 mm

Net weight

0.097 kg

Certifications

SIL 3PL ECategory 4
