6ES7138-4FB04-0AB0 Siemens
Product image is representative; revision or series may vary.
Contact us to request a specific version.

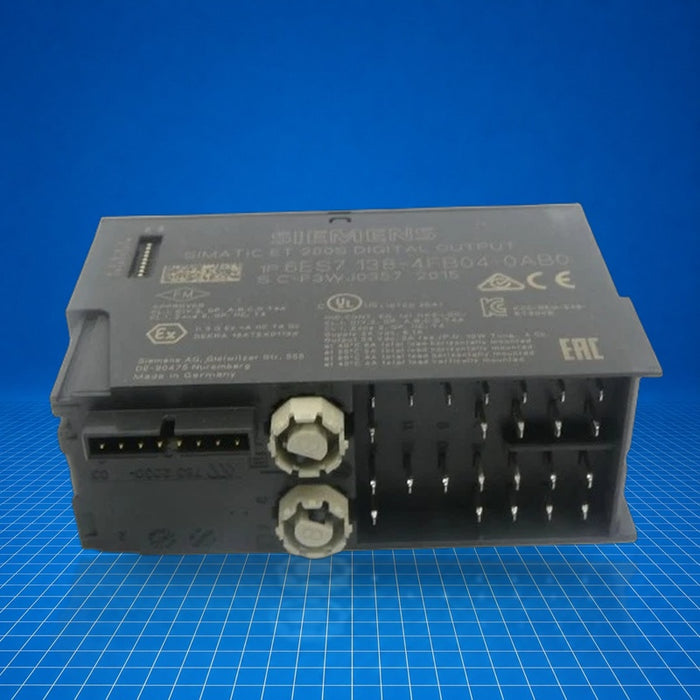

6ES7138-4FB04-0AB0 Siemens

$400.00 - $836.00
$400.00
$400.00 - $836.00
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$836.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC DP ET 200S fail-safe digital output module 6ES7138-4FB04-0AB0 provides four transistor-based fail-safe outputs (F-DO) rated at 24 V DC/2 A. Designed for ET 200S distributed I/O systems, it delivers safety-related switching up to Performance Level e (ISO 13849-1) and SIL 3 (IEC 61508), enabling safe actuator control in safety applications. Mountable within PROFINET architectures when paired with IM 151-3 HF, the module supports diagnostics and is frequently used in machinery safety circuits and emergency stop implementations.

Best Suited For

  • Fail-safe actuator control in ET 200S systems
  • Safety circuits requiring PL e / SIL 3 compliance
  • PROFINET-configured distributed safety I/O
  • Emergency stop and guard monitoring applications
Outputs
4 × transistor F-DO
Output rating
24 V DC / 2 A each
Safety certification
PL e / SIL 3
Power loss
3.5 W (typical)

Technical Specifications

I/O & Electrical

Digital outputs
4 transistor F-DO
Output voltage
24 V DC
Output current (rated)
2 A
Permissible current range
20 mA-2.4 A
Residual current ("0")
max. 0.5 mA
Short-circuit protection
Yes
Switching frequency (resistive)
max. 30 Hz
Switching frequency (inductive)
max. 0.1 Hz
Switching capacity (lamp load)
max. 10 W
Load resistance range
12 Ω - 1 kΩ
Total current per module
max. 6 A
Total current, horizontal (≤ 40 °C)
6 A
Total current, horizontal (≤ 55 °C)
5 A
Total current, horizontal (≤ 60 °C)
4 A
Total current, vertical (≤ 40 °C)
4 A

Communication & Power

Supply voltage
24 V DC (L+)
Reverse polarity protection
No
Input current (no load)
100 mA
Backplane bus current (3.3 V DC)
max. 28 mA
Power loss (typical)
3.5 W
Diagnostics
Wire-break and short-circuit diagnostics; status LEDs

Physical & Environmental

Width
30 mm
Height
81 mm
Depth
52 mm
Weight
approx. 85 g
Cable length (shielded/unshielded)
up to 500 m

Certifications

Category 4PL eSIL 3

Safety performance up to Category 4 (EN 954-1), Performance Level e (ISO 13849-1), SIL 3 (IEC 61508); diagnostics function including wire-break and short-circuit monitoring. Isolation tested to 500 V DC.
