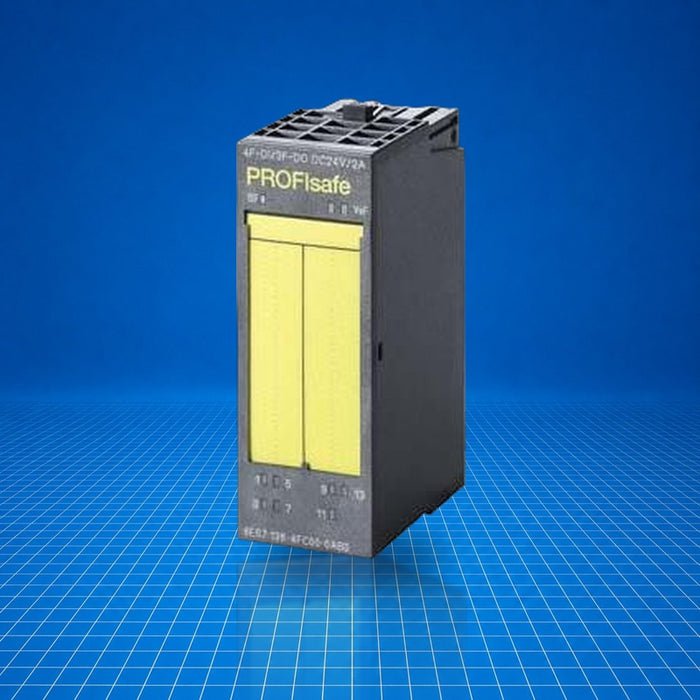

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

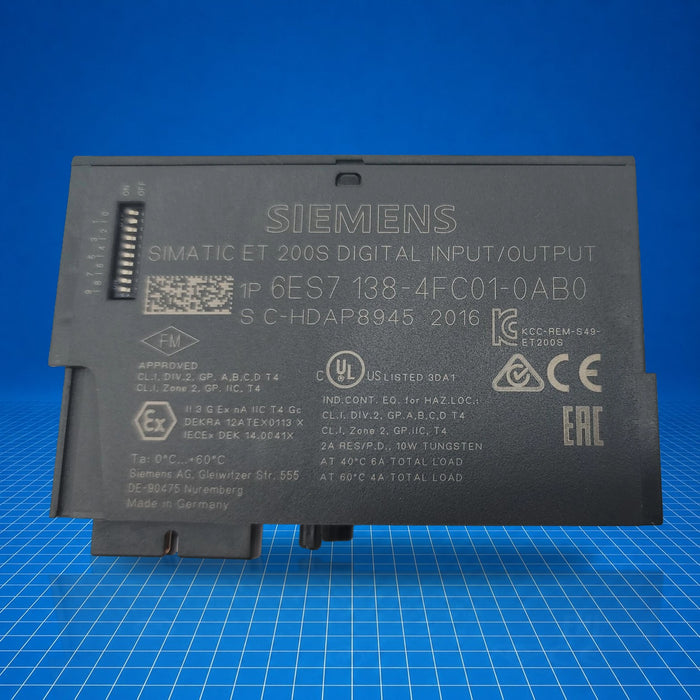

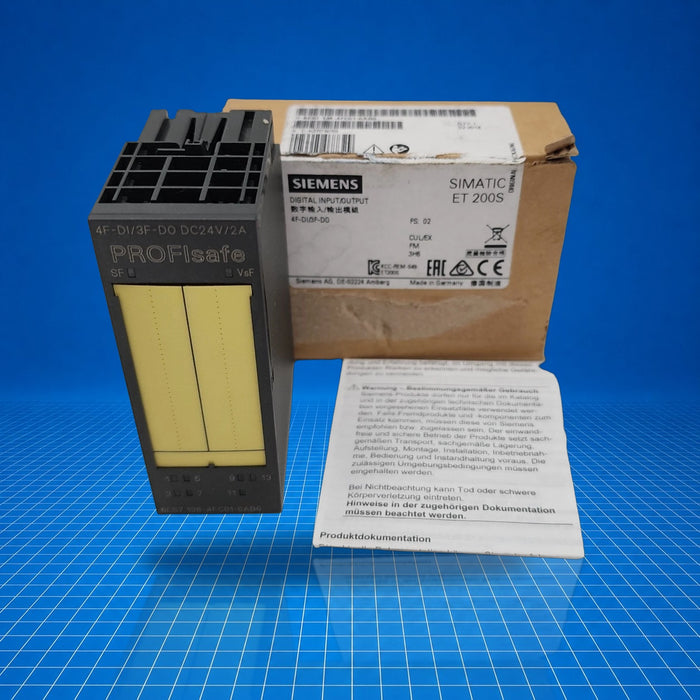

6ES7138-4FC01-0AB0 Siemens
Original price
$996.88
-
Original price
$1,417.50
Original price
$996.88
$996.88
-
$1,417.50
Current price
$996.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The SIMATIC ET 200S fail-safe electronics module 6ES7138-4FC01-0AB0 provides mixed safety I/O with four fail-safe digital inputs and three fail-safe digital outputs, designed for 24 V DC systems. It integrates PROFIsafe and meets SIL 2 (IEC 61508), Performance Level d (ISO 13849-1), and Category 3 (EN 954-1) requirements. Intended for use in distributed I/O systems such as ET 200S racks, this module enables safe signal interfacing in machinery, production lines, and safety-controlled environments.
Best Suited For
- Integration into SIMATIC ET 200S distributed I/O system
- Safety applications requiring SIL 2 / PL d compliance
- Safety input/output requirements in compact form factor
- Fail-safe input/output expansion in safety-certified systems
Digital inputs (fail-safe)
4
Digital outputs (fail-safe)
3
Input voltage
24 V DC
Power loss (typ.)
3.5 W
Safety classification
SIL 2 / PL d
Technical Specifications
I/O & Electrical
Digital inputs
4
Digital outputs
3
Communication & Power
Input voltage
24 V DC
Power loss, typ.
3.5 W
Input current (signal "1", typ.)
3.5 mA
Physical & Environmental
Width
30 mm
Height
81 mm
Depth
52 mm
Certifications
SIL 2PL dCategory 3EU Declaration of ConformityULATEXIECExFMRCMEACChina RoHS
Achieves Category 3 (EN 954-1), Performance Level d (ISO 13849-1), SIL 2 (IEC 61508).
