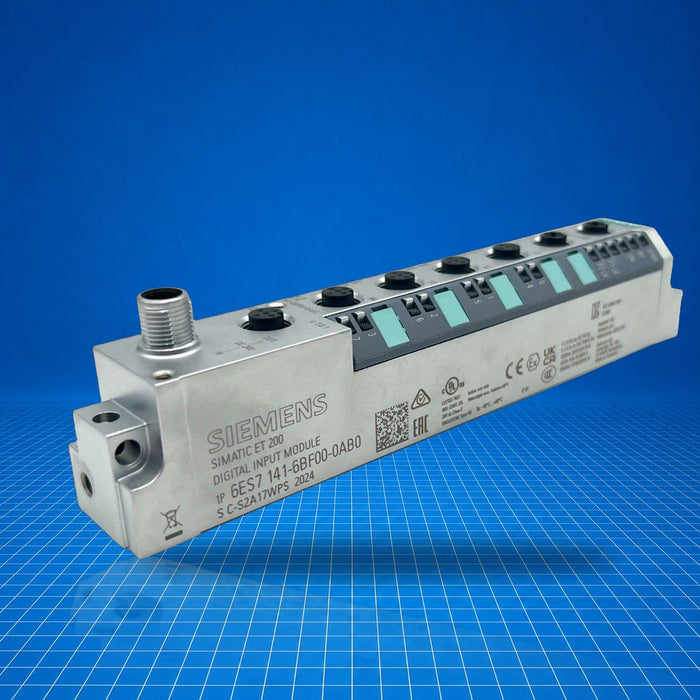

6ES7141-6BF00-0AB0 Siemens
Original price
$1,072.50
-
Original price
$1,597.50
Original price
$1,072.50
$1,072.50
-
$1,597.50
Current price
$1,072.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

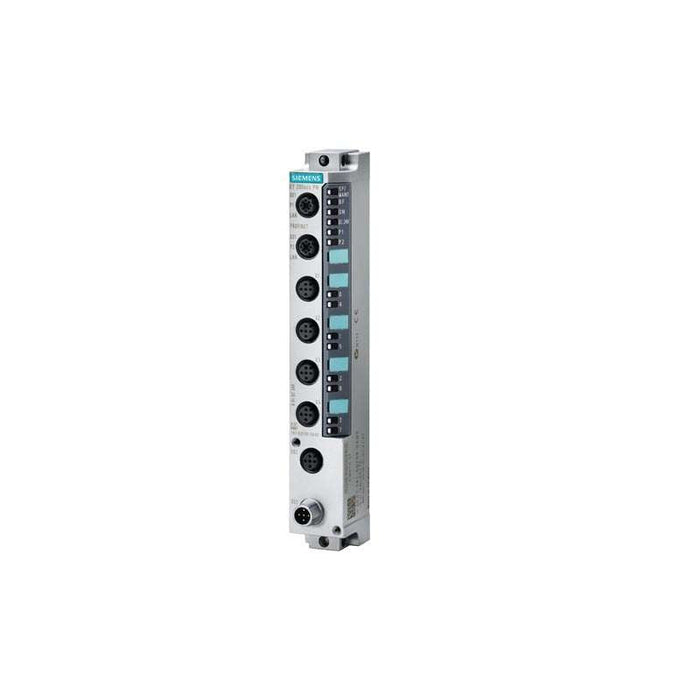

The Siemens part 6ES7141-6BF00-0AB0 is a SIMATIC DP ET 200eco PN digital input module providing eight 24 V DC sensor inputs and four M12-encoder power outputs. Designed for field-level signal acquisition in distributed automation architectures over PROFINET (PN), the module supports standard industrial installations requiring IP67 protection. Common applications include machine-mounted I/O expansion, decentralized sensor interfacing in manufacturing lines, and environments exposed to dust or moisture.
Best Suited For
- Field-mounted distributed I/O in PROFINET networks
- Direct connection of 24 V DC sensors and encoders
- Applications requiring IP67-rated modules
- Machine-level I/O expansion
- Installation on automated manufacturing equipment
Digital inputs
8 × 24 V DC
Encoder outputs
4 × 24 V, 100 mA each
Supply voltage
24 V DC
Degree of protection
IP67
Typical current consumption
100 mA
Technical Specifications
I/O & Electrical
Digital inputs
8 × 24 V DC, type 3 (IEC 61131)
Input signal "0" range
-3 to +5 V
Input signal "1" range
+11 to +30 V
Input current (signal "1")
typ. 7 mA
Input delay, 0→1 / 1→0
typ. 3 ms / typ. 3 ms
Cable length unshielded
max. 30 m
Encoder supply outputs
4 × 24 V, max. 100 mA each, electronic short-circuit protection
Communication & Power
Supply voltage
24 V DC
Input current (module)
typ. 100 mA
Max. current from supply 1L+
4 A
Power loss
typ. 5.5 W
