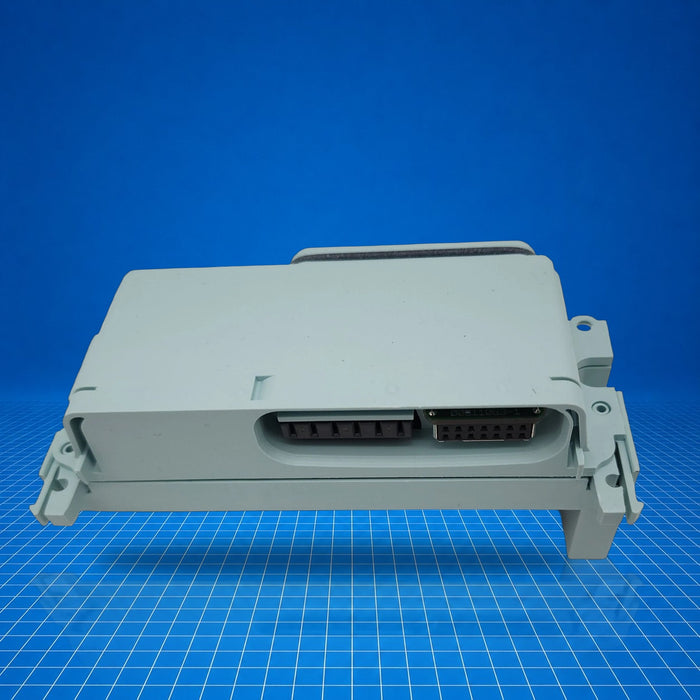

6ES7142-4BF00-0AA0 Siemens
Original price
$382.89
-
Original price
$428.40
Original price
$382.89
$382.89
-
$428.40
Current price
$382.89
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

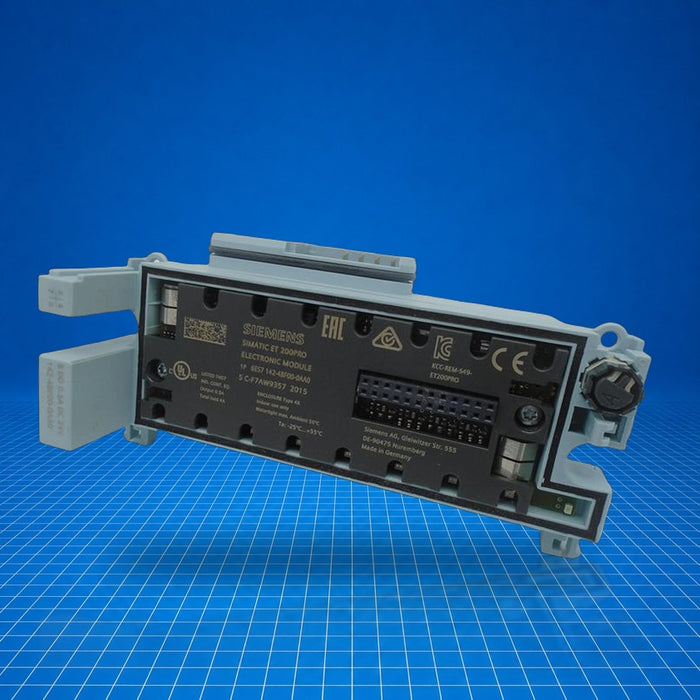

The Siemens 6ES7142-4BF00-0AA0 is a SIMATIC ET 200 PRO digital output module with 8 outputs at 24 V DC, each rated for 0.5 A. It includes integrated module diagnostics and a backplane bus interface; a separate connection module (e.g. 6ES7194-4..00-0AA0) is required. This expansion module slots into the ET 200 PRO distributed I/O platform and is used to drive low-power actuators or loads, with fault detection, in typical manufacturing, packaging, and process control systems.
Best Suited For
- Distributed I/O networks in SIMATIC ET 200 PRO systems
- Low-current DC load switching (0.5 A per channel)
- Applications requiring module-level diagnostics
- Expanding digital outputs in compact enclosure installations
Outputs
8 × DO 24 V DC, 0.5 A each
Diagnostics
Module-level with LEDs
Width
45 mm
Weight
approx. 140 g
Technical Specifications
I/O & Electrical
Output count
8
Output voltage
24 V DC
Output current (per group)
4 A (total) up to 55 °C
Short-circuit protection
Yes; module-by-module
Communication & Power
Backplane bus interface
Included (via ET 200 PRO bus)
Potential separation
Yes; between backplane and outputs
Physical & Environmental
Width
45 mm
Height
130 mm
Depth
35 mm
Weight
approx. 140 g
Certifications
UL ListedCE
General product approval and certifications per ET 200 PRO system; module subject to UL and CE compliance.
