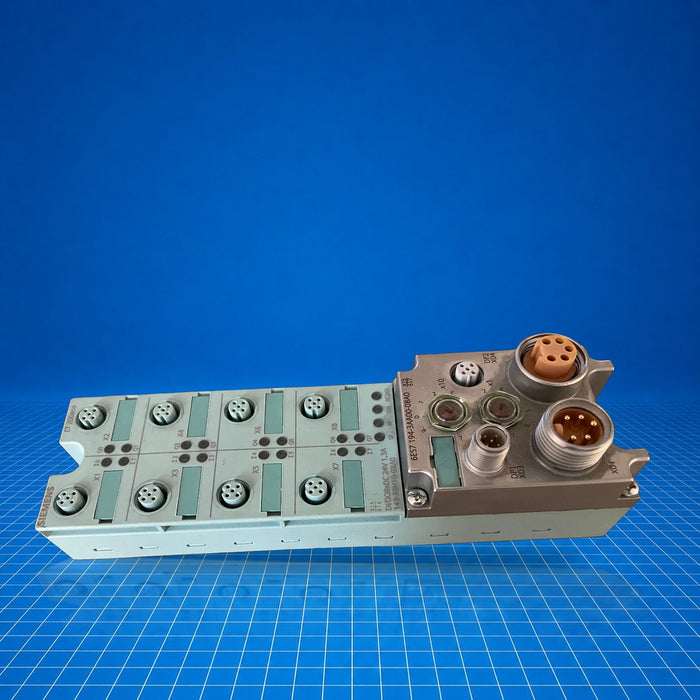

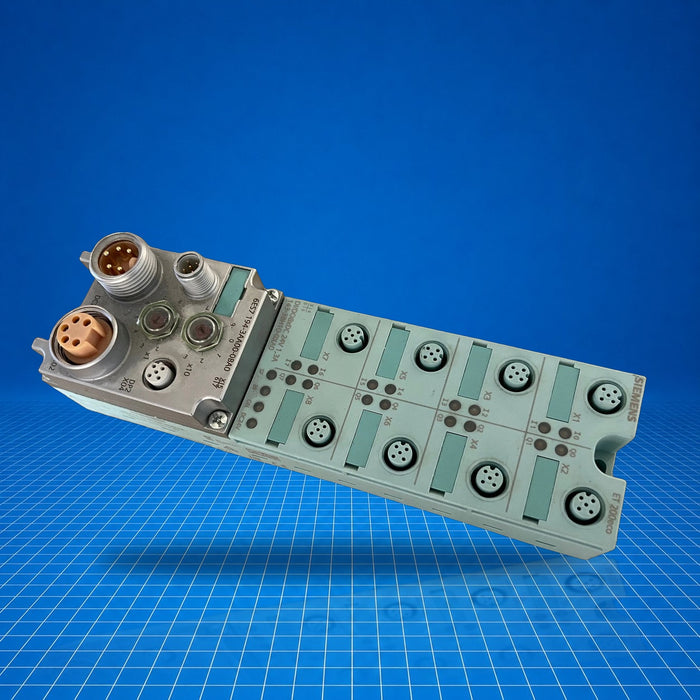

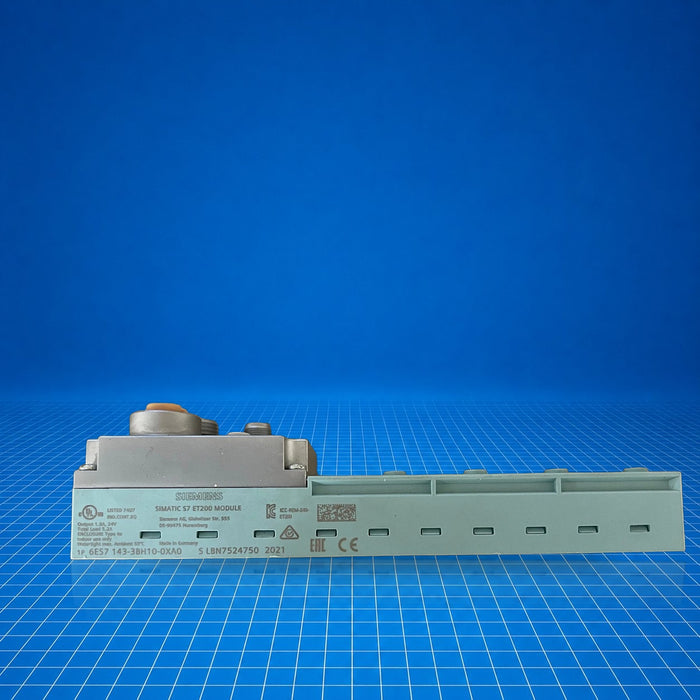

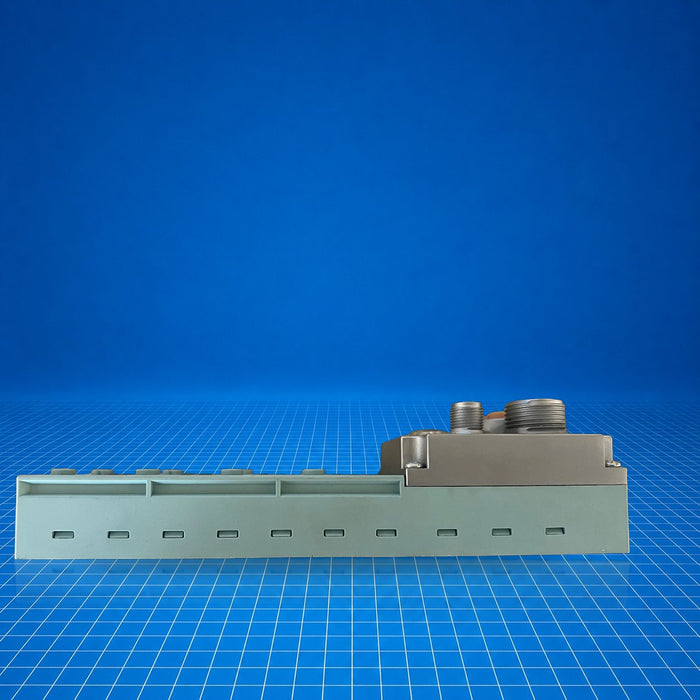

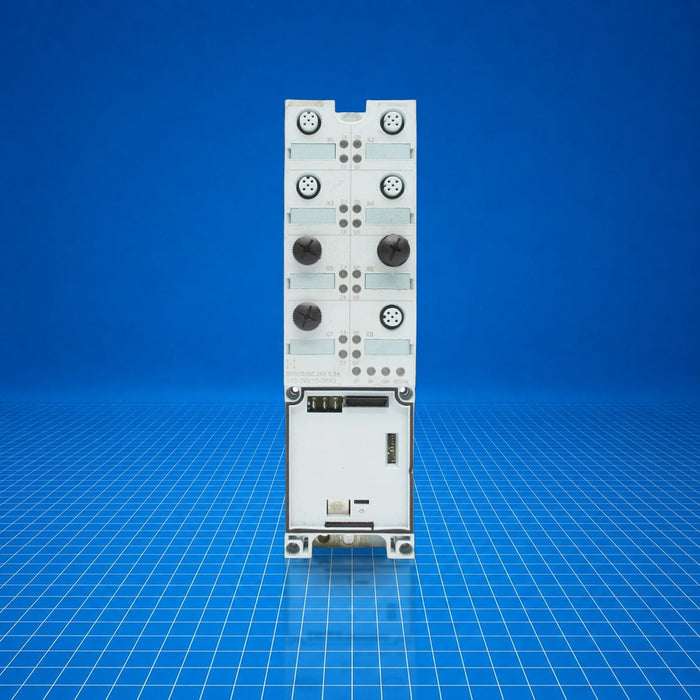

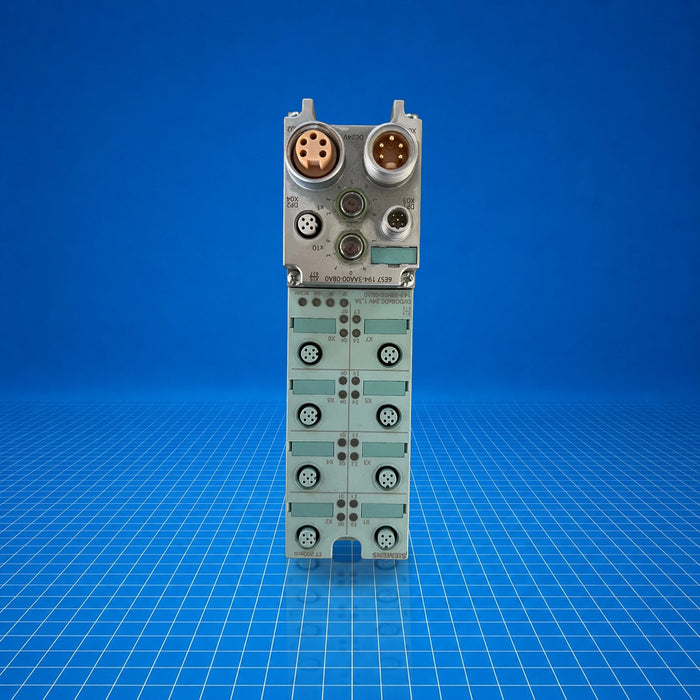

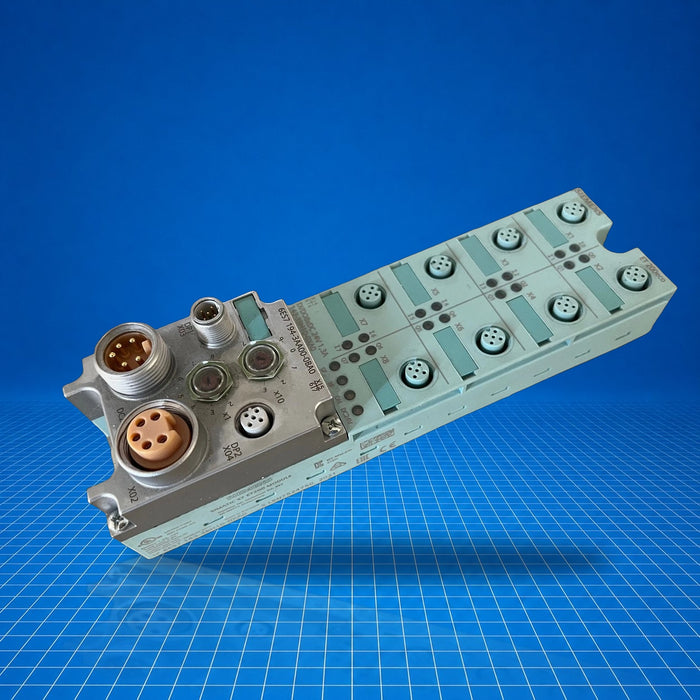

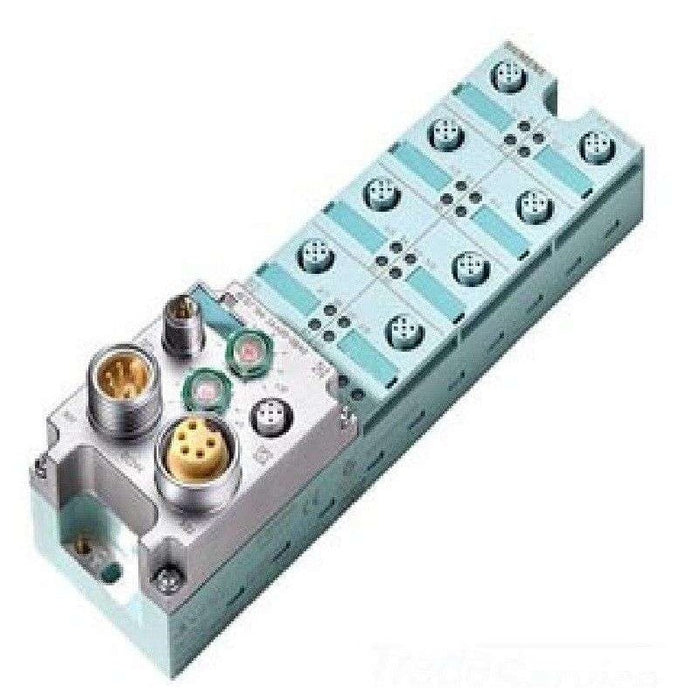

6ES7143-3BH10-0XA0 Siemens-Siemens-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7143-3BH10-0XA0 Siemens

$0.00 - $585.00
$585.00
$0.00 - $585.00
$585.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$585.00
4 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

Siemens part number 6ES7143-3BH10-0XA0 is a SIMATIC ET 200eco I/O module featuring 8 digital inputs and 8 digital outputs, each output providing up to 1.3 A. It interfaces via PROFIBUS DP and serves as a decentralized peripheral in modular automation systems. Installed directly on machinery or distributed within control cabinets, it supports distributed I/O tasks such as monitoring sensors and actuating devices in industrial environments. 6ES7143-3BH10-0XA0 integrates seamlessly into ET 200eco platforms for standard control functions without additional processing logic.

Best Suited For

  • Distributed I/O extension via PROFIBUS DP
  • Standard 24 V DC digital input/output tasks
  • Applications requiring 8 DI + 8 DO on one module
  • Machine-level signal interfacing under moderate ambient temperature
Digital channels
8 DI + 8 DO
Output current per channel
1.3 A
Bus interface
PROFIBUS DP
Supply voltage
24 V DC
Dimensions (W×H×D)
60 × 210 × 28 mm

Technical Specifications

I/O & Electrical

Digital inputs
8 channels
Digital outputs
8 channels
Output current
1.3 A per channel
Lamp load
max. 10 W
Nominal input voltage (1L+)
24 V DC
Nominal load voltage (2L+)
24 V DC
Input current typ.
7 mA
Rest output current (off)
max. 0.5 mA
Short-circuit protection
electronic, typ. 4 A per channel
Switching frequency
max. 100 Hz (resistive), max. 0.5 Hz (inductive), max. 1 Hz (lamp)

Communication & Power

PROFIBUS DP transmission rates
9.6-500 kBaud; 1.5/3/6/12 MBaud
Reverse polarity protection
Yes (both supplies)
Current consumption
typ. 70 mA (electronics), typ. 60 mA (load supply)
Power loss
typ. 5 W
Isolation test voltage
500 V DC
Permitted potential difference
75 V DC / 60 V AC

Physical & Environmental

Dimensions (W×H×D)
60 × 210 × 28 mm
Weight
approx. 210 g
Ambient temperature (all positions)
up to 55 °C
Cable length (unshielded)
max. 30 m
