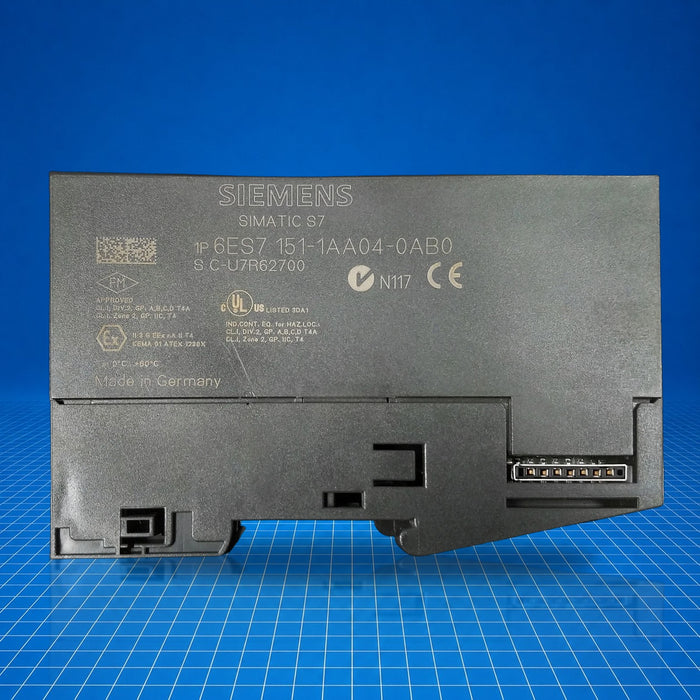

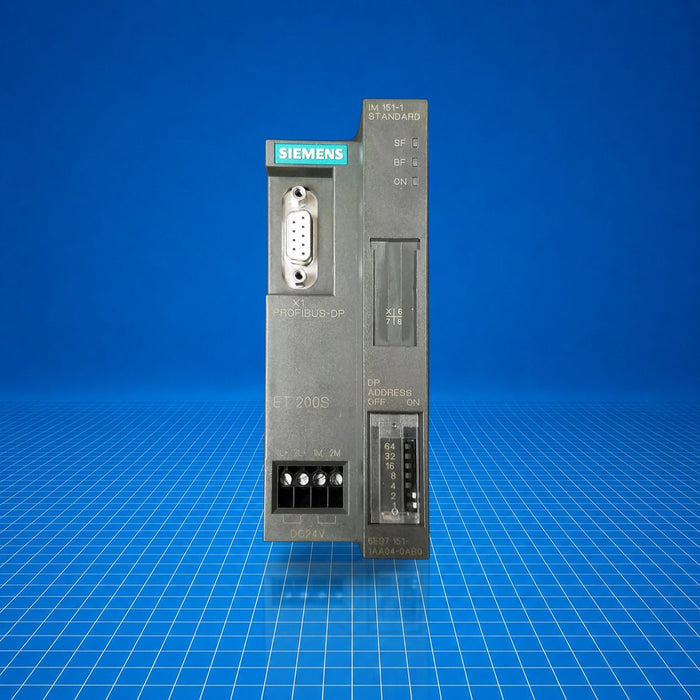

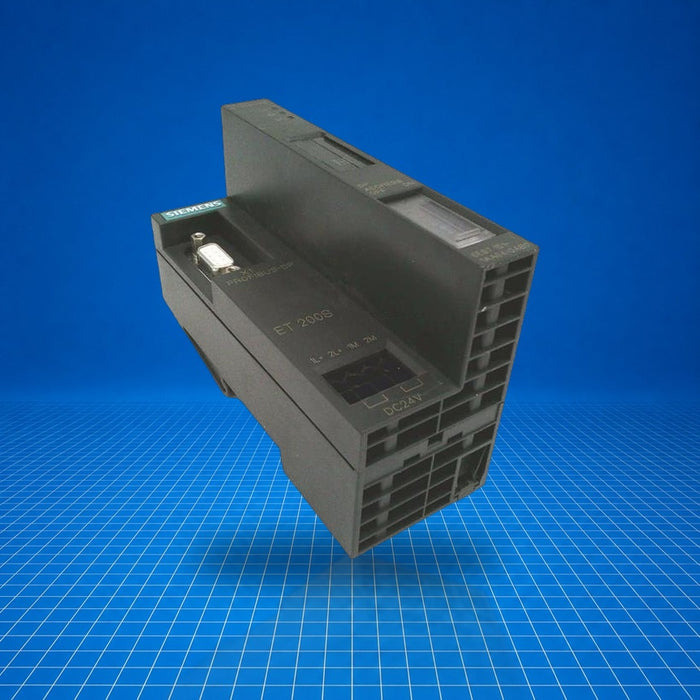

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7151-1AA04-0AB0 Siemens
Original price
$402.96
-
Original price
$773.08
Original price
$402.96
$402.96
-
$773.08
Current price
$402.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC interface module IM 151-1 STANDARD (part number 6ES7151-1AA04-0AB0) functions as the communication interface for ET 200S distributed I/O systems using the PROFIBUS DP protocol. It enables integration of remote I/O stations into centralized control networks, allowing bi-directional data exchange (32 bytes each direction per PLC cycle). It supports cable runs up to 1,200 m and provides galvanic isolation between communication lines and internal power. Typical applications include factory automation, machine control, and distributed sensor/actuator systems.
Best Suited For
- Distributed ET 200S I/O remote stations
- PROFIBUS DP networks up to 1.2 km
- Applications requiring galvanic isolation
- Integration of up to 63 I/O modules in PROFIBUS V0/V1 systems
Data exchange per cycle
32 bytes (send) / 32 bytes (receive)
Max PROFIBUS cable length
1 200 m
Input current (from datasheet)
-
Power loss
-
Technical Specifications
I/O & Electrical
Data bytes per PLC cycle (send)
32 byte
Data bytes per PLC cycle (receive)
32 byte
Communication & Power
Interface types
RS-232, RS-485, PROFIBUS DP
Max cable length (RS-232)
15 m
Max cable length (RS-485/PROFIBUS DP)
1 200 m
Galvanic isolation
Yes (between RS-422/485 or RS-232 and internal power supply)
Physical & Environmental
Ambient operating temperature
0 °C to 60 °C
Dimensions (W × H × D)
15 mm × 81 mm × 52 mm
Weight
≈ 50 g
