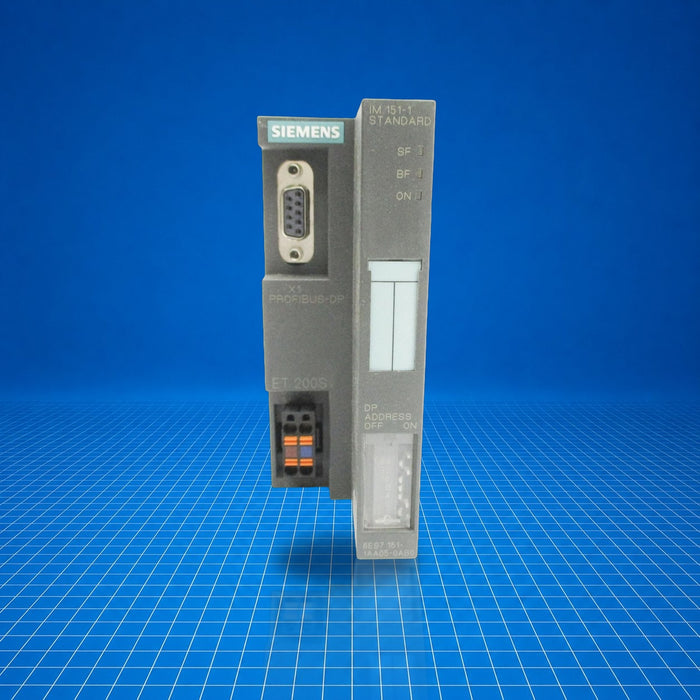

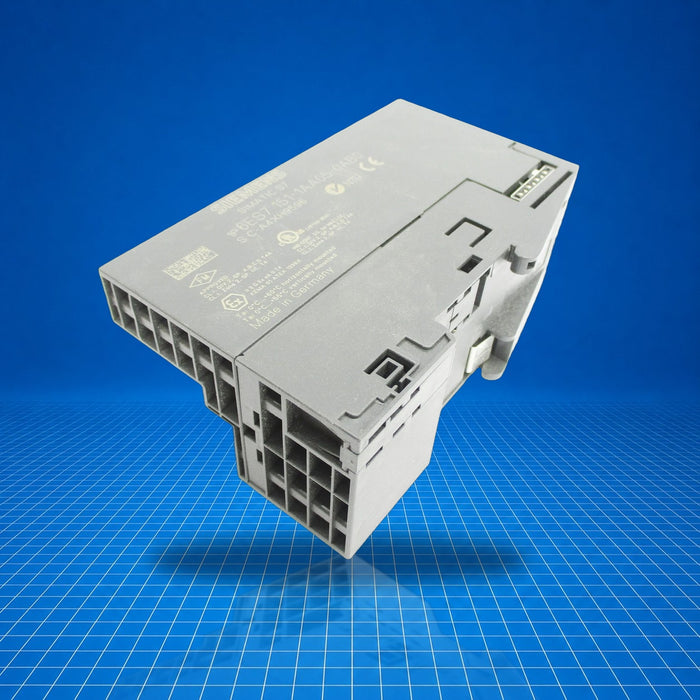

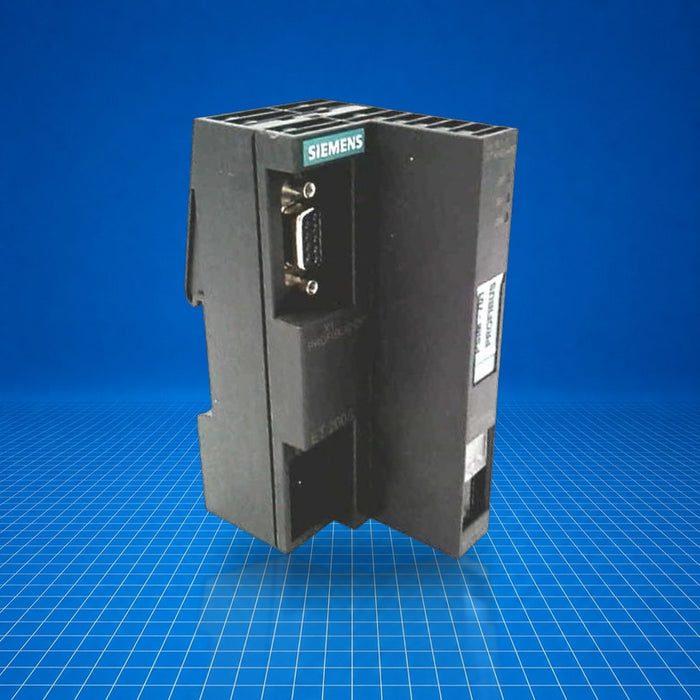

6ES7151-1AA05-0AB0 Siemens
Original price
$345.00
-
Original price
$1,875.00
Original price
$345.00
$345.00
-
$1,875.00
Current price
$345.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7151-1AA05-0AB0 is an IM 151-1 STANDARD interface module for the SIMATIC ET 200S distributed I/O system. Acting as the connection between ET 200S I/O stations and a PROFIBUS DP network, it handles cyclic exchange of up to 244 bytes of input and 244 bytes of output data, and supports up to 63 I/O modules over a maximum 2 m rack width. It includes an integrated termination module and uses a 9-pin SUB-D PROFIBUS connector. As a discontinued spare part, it is typically used for maintenance or replacement in existing ET 200S systems.
Best Suited For
- Replacing failed IM 151-1 STANDARD modules in existing ET 200S racks
- Maintaining PROFIBUS DP-based distributed I/O installations
- Environments using DP V0 or V1 communication with ET 200S
- Support of up to 63 I/O modules within 2 m rack width
I/O data volume
244 B input / 244 B output
Max I/O modules
63 modules
Bus interface
PROFIBUS DP via RS-485 (9-pin SUB-D)
Supply current
200 mA max
Power loss (typ.)
3.3 W
Technical Specifications
I/O & Electrical
I/O data volume
244 B input / 244 B output
Max I/O modules
63
Communication & Power
Bus protocol
PROFIBUS DP (RS-485)
Transmission rate
up to 12 Mbit/s (9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 kbit/s; 1.5 / 3 / 6 / 12 Mbit/s)
Interface supply current
80 mA
Supply voltage
24 V DC (1L+)
Supply current max
200 mA
Power loss (typ.)
3.3 W
Physical & Environmental
Ambient operating temperature
0 °C to 60 °C
Cable length (max)
1 200 m
Dimensions (W × H × D)
45 × 119.5 × 75 mm
Weight
approx. 150 g
Certifications
CEUL
