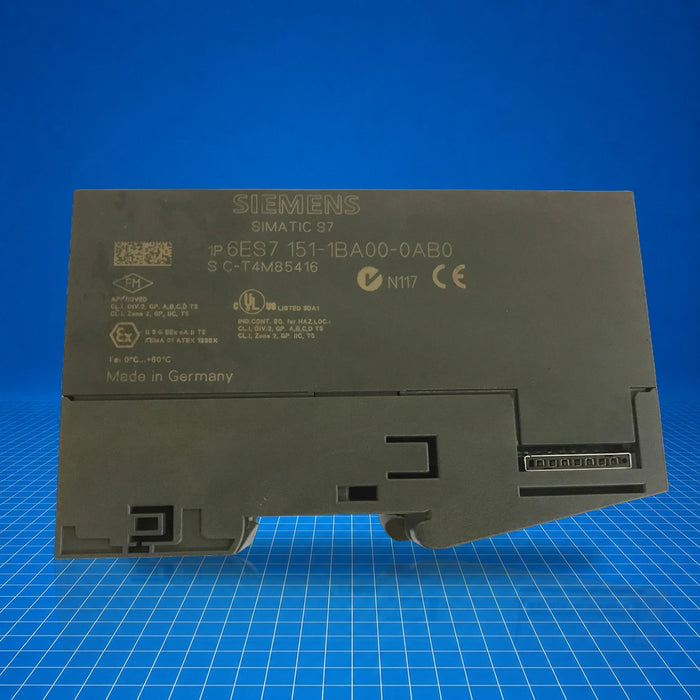

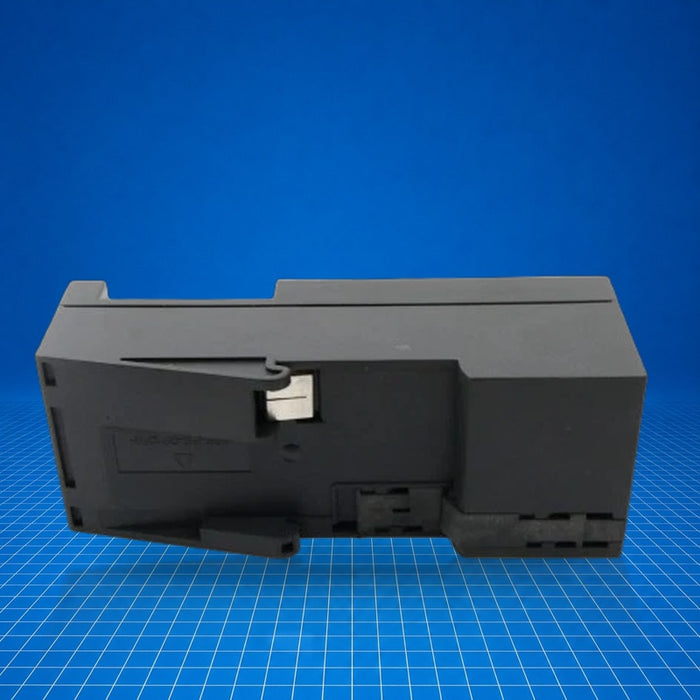

6ES7151-1BA00-0AB0 Siemens
Original price
$2,212.35
-
Original price
$2,214.78
Original price
$2,214.78
$2,212.35
-
$2,214.78
Current price
$2,214.78
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7151-1BA00-0AB0 is a SIMATIC DP interface module (IM 151-1 High Feature) for ET 200S distributed I/O systems. It serves as the PROFIBUS-DP communication gateway, enabling data exchange between a PROFIBUS fieldbus and ET 200S I/O modules. Supports transmission rates up to 12 Mbit/s, an I/O data volume of 244 bytes for inputs and outputs, and allows up to 63 I/O modules in isochronous mode. Typically used in modular machine control, compact distributed automation, and PROFIBUS-DP networks requiring synchronization.
Best Suited For
- ET 200S distributed I/O systems
- PROFIBUS-DP networks up to 12 Mbit/s
- Systems requiring up to 244 byte I/O data per direction
- Installations with up to 63 I/O modules in sync
- Compact modular machine control
Transmission rate (max)
12 Mbit/s
I/O data volume (inputs)
244 byte
I/O data volume (outputs)
244 byte
Max connectable I/O modules
63
Bus interface
9-way SUB-D (RS-485)
Technical Specifications
I/O & Electrical
Input current (max)
200 mA
Power loss (typical)
3.3 W
Communication & Power
Transmission procedure
RS-485 (PROFIBUS-DP)
Transmission rates supported
9.6 kbit/s to 12 Mbit/s
Cable length (max)
1 200 m
Interface output current (max)
80 mA
Physical & Environmental
Product weight
0.183 kg
Packaging dimension
8.50 × 12.20 × 6.80 cm
