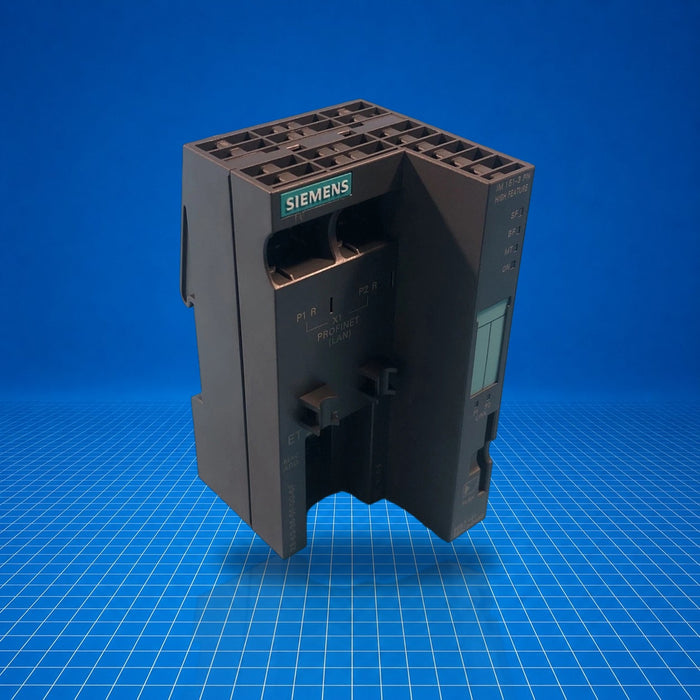

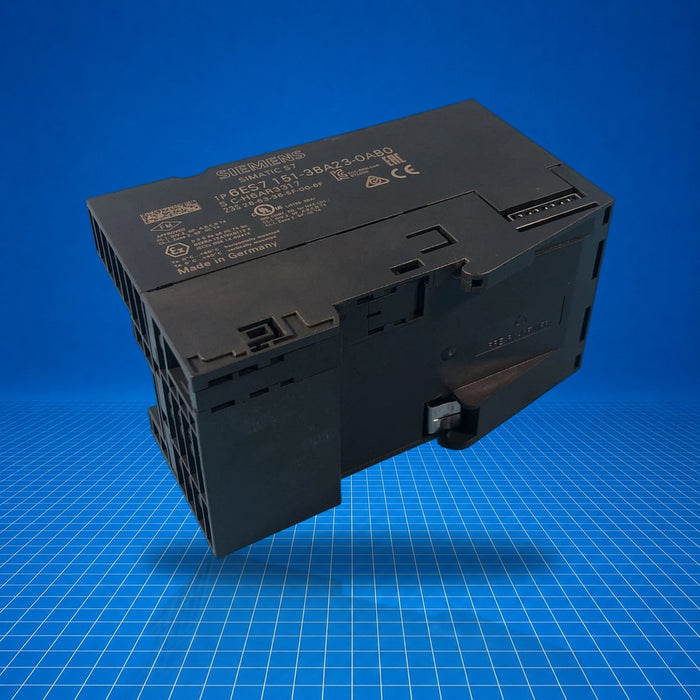

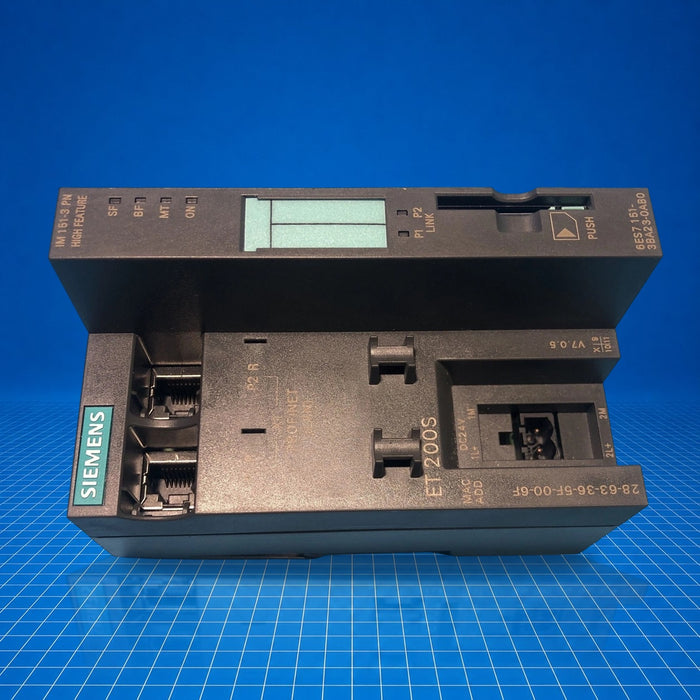

6ES7151-3BA23-0AB0 Siemens
Original price
$384.00
-
Original price
$666.22
Original price
$384.00
$384.00
-
$666.22
Current price
$384.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7151-3BA23-0AB0 is the SIMATIC DP interface module IM 151-3 PN HF designed for the ET 200S distributed I/O system. It provides a PROFINET interface for connecting up to 63 I/O modules over a 2 m distributed bus. The module supports one PROFINET interface at up to 100 Mbit/s via two RJ45 ports (including termination), and includes built-in functionality for IRT, PROFIenergy, prioritized startup, and shared device modes. The module's stored energy time supports up to 20 ms buffering in case of supply voltage interruption. 6ES7151-3BA23-0AB0.
Best Suited For
- Extending ET 200S I/O in PROFINET networks
- Applications requiring real-time (IRT) communication
- Energy-optimized systems using PROFIenergy
- Redundant or prioritized startup configurations
- Shared-device PROFINET architectures
PROFINET speed
100 Mbit/s
Max I/O modules
63 (up to 2 m width)
Supply buffering
20 ms
Power loss (typ.)
3.3 W
Input current (max)
200 mA
Technical Specifications
I/O & Electrical
Supply buffering time
20 ms
Input current (from supply voltage 1L+, max.)
200 mA
Power loss, typ.
3.3 W
Communication & Power
PROFINET interface
2× RJ45 ports
Transmission rate, max.
100 Mbit/s
Autonegotiation
Yes
Autocrossing
Yes
Protocols supported
PROFINET IO, SNMP, LLDP, ping, ARP, PROFIenergy, IRT, prioritized startup, shared device
Physical & Environmental
Dimensions (B)
60 mm
Weight
≈ 150 g
