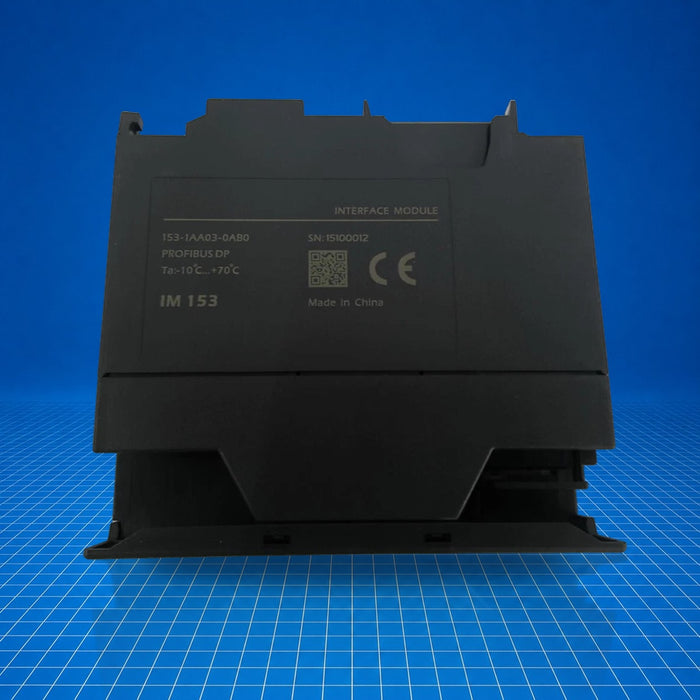

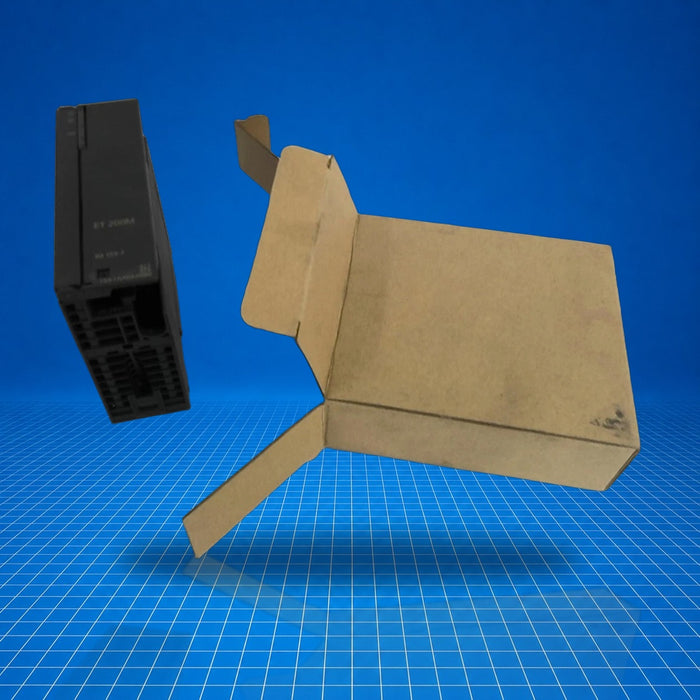

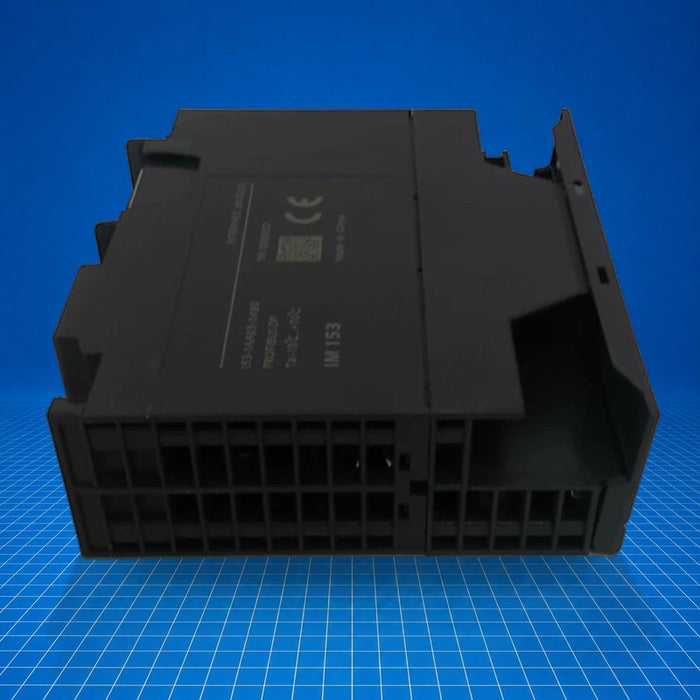

6ES7153-1AA03-0XB0 Siemens

Name: 6ES7153-1AA03-0XB0 Siemens
Brand: Siemens
SKU: 6ES7153-1AA03-0XB0
Price: 345.0 USD
Availability: InStock

$345.00 - $1,111.00

$345.00

$345.00 - $1,111.00

$345.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7153-1AA03-0XB0 is a SIMATIC IM 153-1 DP ST interface module (spare-part designation) for the ET 200M distributed I/O system. It functions as a PROFIBUS DP slave interface that connects up to eight S7-300 I/O modules to a controlling PROFIBUS DP master. It transfers I/O data to and from the distributed modules. Typical applications include modular machine control, remote I/O extension in cabinet-mounted or on-machine installations, and service/replacement in existing ET 200M installations.

Best Suited For

Expanding ET 200M station with PROFIBUS DP communication
Modular S7-300 I/O integration
Field replacement for legacy distributed I/O stations
Compact cabinet or machine-mounted I/O backbone

Supply voltage

24 V DC

Max. modules

8 S7-300 modules

Interface

PROFIBUS DP RS-485

Power loss

3 W (typ.)

Technical Specifications

I/O & Electrical

Supply voltage range

20.4 V to 28.8 V DC

Current consumption (max.)

350 mA at 24 V DC

Inrush current (typ.)

2.5 A

I²t

0.1 A²·s

Backplane bus output (5 V)

Output current max. 1 A

Communication & Power

Transmission rate

up to 12 Mbit/s

Connection

9-pin Sub-D, RS-485

Auto-baud detection

Yes

Physical & Environmental

Dimensions (W×H×D)

40 mm × 125 mm × 117 mm

Weight

≈ 360 g

Ambient temperature (operating)

0 °C to 60 °C (horizontal); 0 °C to 40 °C (vertical)

Protection rating

IP20

Isolation test voltage

500 V

Certifications

UL, EU and UK Declaration of Conformity, China RoHS, ATEX, FM, IECEx, maritime approvals (ABS, BV, DNV, LR, RINA, CCS)
