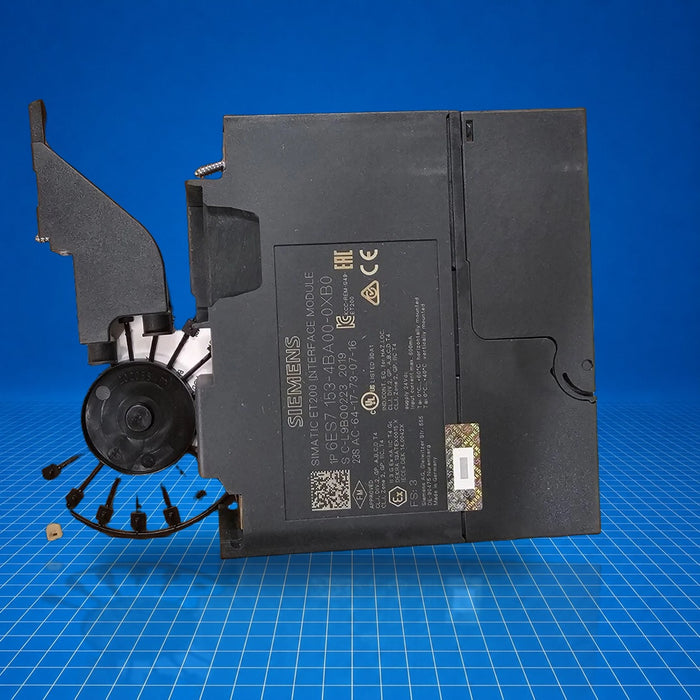

6ES7153-4BA00-0XB0 Siemens

Name: 6ES7153-4BA00-0XB0 Siemens
Brand: Siemens
SKU: 6ES7153-4BA00-0XB0
Price: 1168.75 USD
Availability: InStock

$1,100.00 - $1,168.75

$1,168.75

$1,100.00 - $1,168.75

$1,168.75

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

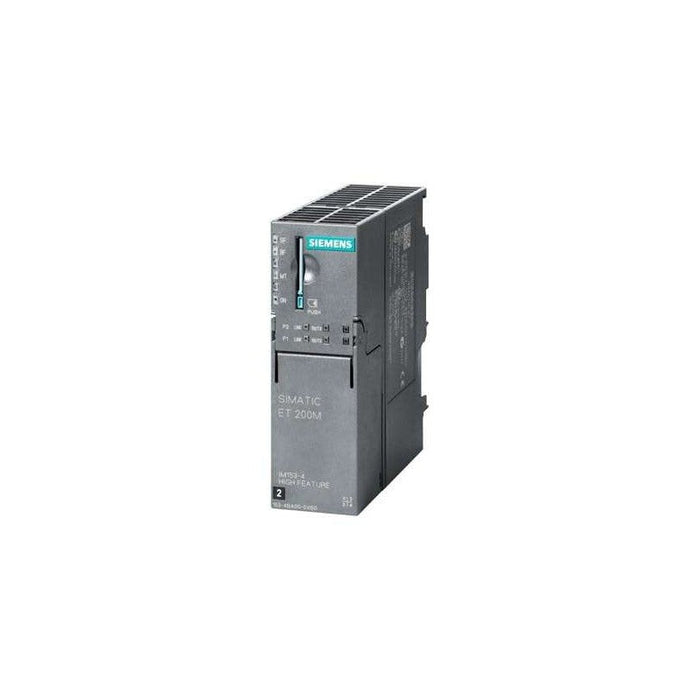

The 6ES7153-4BA00-0XB0 is the IM 153-4 PN HF interface module for the SIMATIC ET 200M distributed I/O system. It serves as the PROFINET IO Device interface in S7-300/400 environments, supporting redundancy features (shared device, prioritized startup, IRT) and HART and fail-safe modules. Typically used in distributed control systems, including redundant S7-400H installations, machine-level I/O distribution, and modular factory automation.

Best Suited For

ET 200M distributed I/O stations
Redundant S7-400H system architectures
HART-enabled module integration
Applications requiring PROFINET I/O with IRT and shared-device support

Supply voltage (DC)

24 V

Max current consumption

600 mA

Communication protocol

PROFINET IO with IRT, shared-device

I/O data (inputs/outputs)

672 byte / 192 byte

Protection rating

IP20

Technical Specifications

I/O & Electrical

Supply voltage rated

24 V DC

Supply voltage range

20.4 V - 28.8 V DC

max. current consumption

600 mA

Inrush current (typ.)

4 A

I²t

0.09 A²·s

Power loss (typ.)

6 W

Backplane 5 V output current

1.5 A

Communication & Power

PROFINET IO Device with IRT

Yes

Shared-device support

Yes; up to 2 controllers

Prioritized startup

Yes

PROFIenergy

No

Protocols supported

TCP/IP, SNMP, LLDP, ping, ARP

Redundancy support

PROFINET system redundancy (S2), MRP

Physical & Environmental

Protection rating

IP20

Ambient operating temperature

0 °C to 60 °C

Max altitude

2000 m

Dimensions (W × H × D)

40 mm × 125 mm × 118 mm

Weight (approx.)

215 g

Certifications

ULCE (EU Declaration of Conformity)UK Declaration of ConformityKCRCMEACATEXFMIECExABSBVDNVLRRINACCS

Certifications include UL, EU and UK Declarations of Conformity, KC, RCM, EAC, ATEX, FM, IECEx, ABS, BV, DNV, LR, RINA, CCS; PROFINET IO Device certified per conformance classes and LLDP, SNMP etc.
