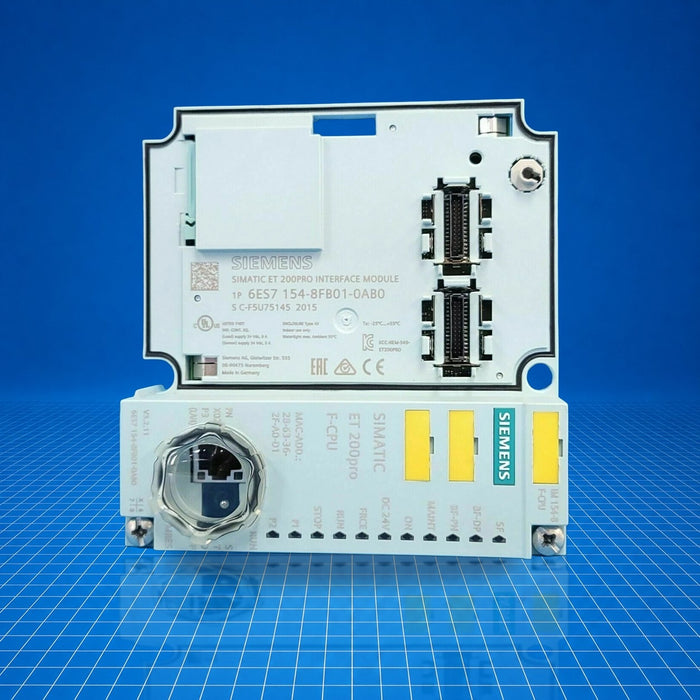

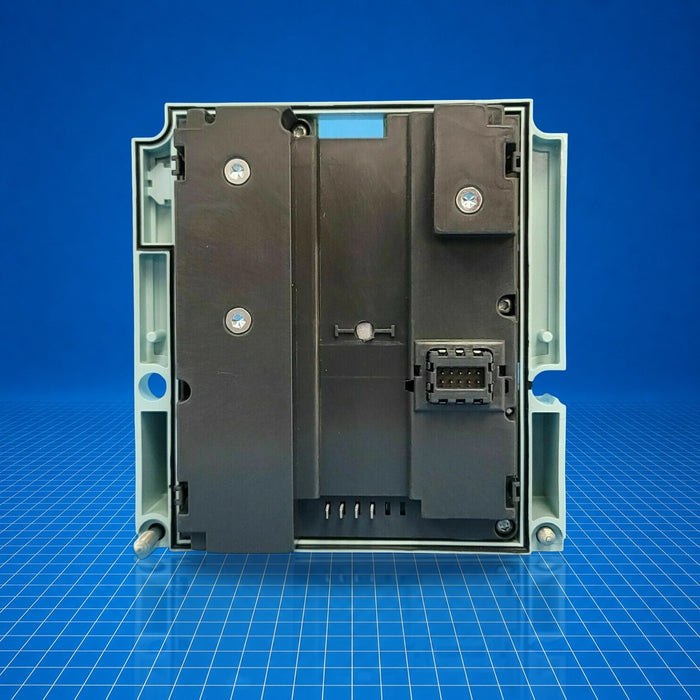

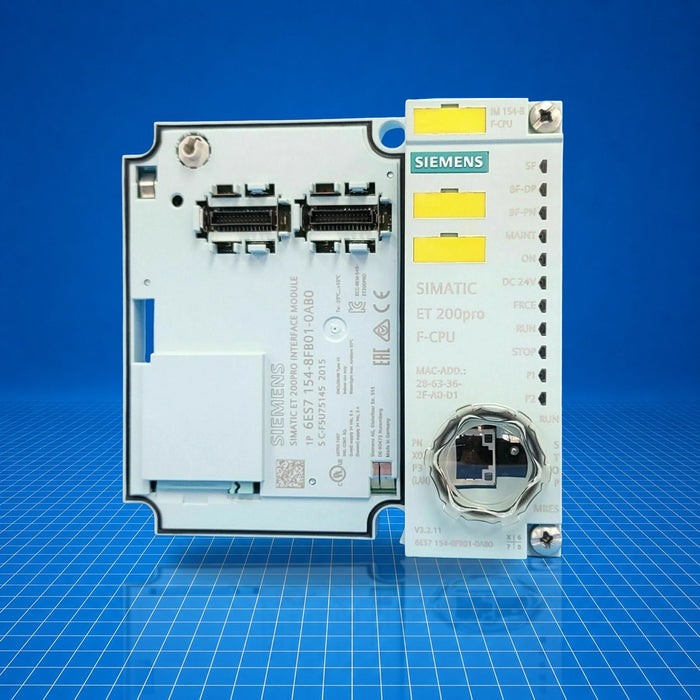

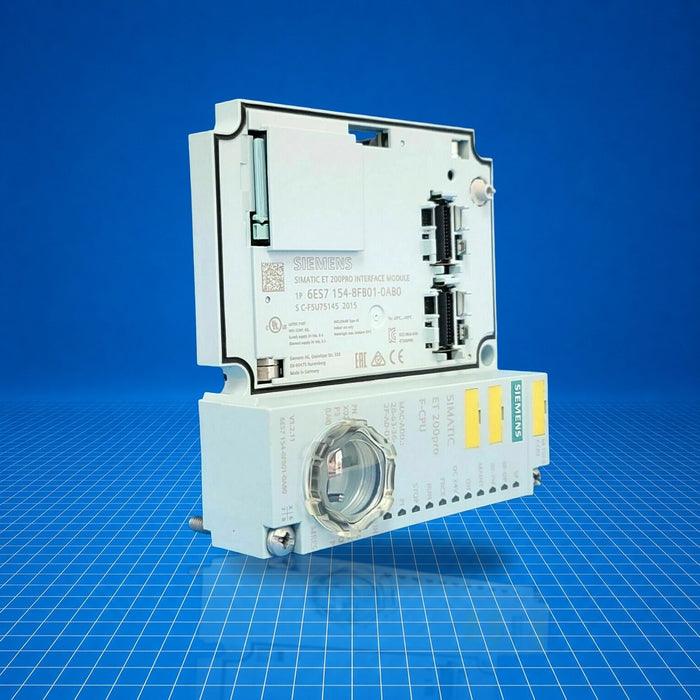

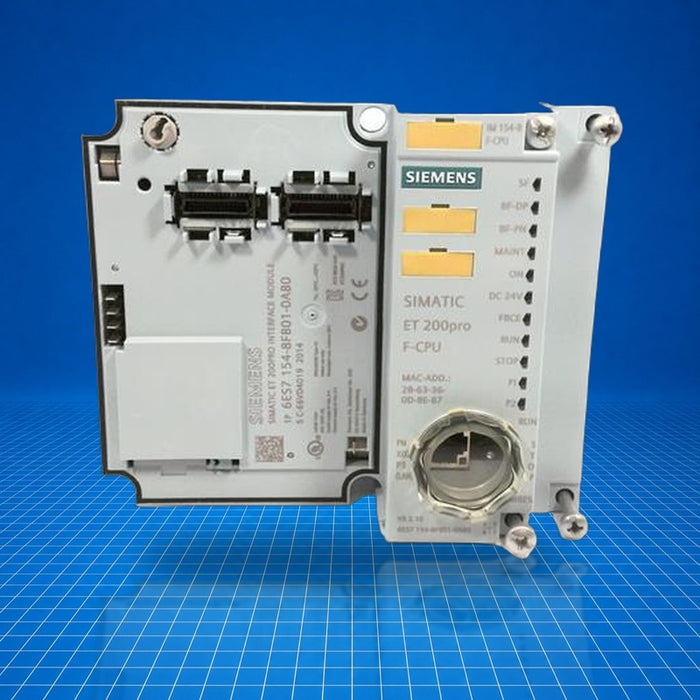

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7154-8FB01-0AB0 Siemens
Original price
$1,264.70
-
Original price
$2,290.75
Original price
$1,264.70
$1,264.70
-
$2,290.75
Current price
$1,264.70
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The SIMATIC DP IM 154-8F PN/DP CPU (Siemens part number 6ES7154-8FB01-0AB0) is a fail-safe distributed I/O processing module in the ET 200 PRO family. It serves as a compact CPU with integrated PROFINET and PROFIBUS DP master/slave interfaces, providing 512 KB work memory and up to 8 MB Micro Memory Card capacity. Designed for applications combining standard and safety-related control tasks, it is suited to machine safety and burner control systems in industrial automation.
Best Suited For
- Distributed machine-side safety control
- Burner management systems
- ET 200 PRO modular I/O integration
- Applications combining standard and safety logic
Work memory
512 KB integrated
Interfaces
PROFINET + PROFIBUS DP master/slave
Protection rating
IP65/67
Micro Memory Card max
8 MB
Technical Specifications
I/O & Electrical
Supply voltage (rated)
24 V DC
Supply voltage range
20.4 - 28.8 V DC
Reverse-polarity protection
Yes
Current consumption (typical)
350 mA
No-load current (typical)
250 mA (CPU in STOP)
Inrush current (typical)
2 A
Power loss (typical)
8.5 W
Communication & Power
Work memory (integrated)
512 KB, 128 KB retentive
MMC capacity (max)
8 MB
MMC data retention (min)
10 years
Safety-program backup
Yes, without battery via MMC
CPU bit op time (typical)
0.05 µs
CPU word op time (typical)
0.09 µs
Fixed-point op time (typical)
0.12 µs
Interfaces
Integrated PROFINET; PROFIBUS DP master/slave
Physical & Environmental
Degree of protection
IP65/67
Mounting
ET 200 PRO rack
