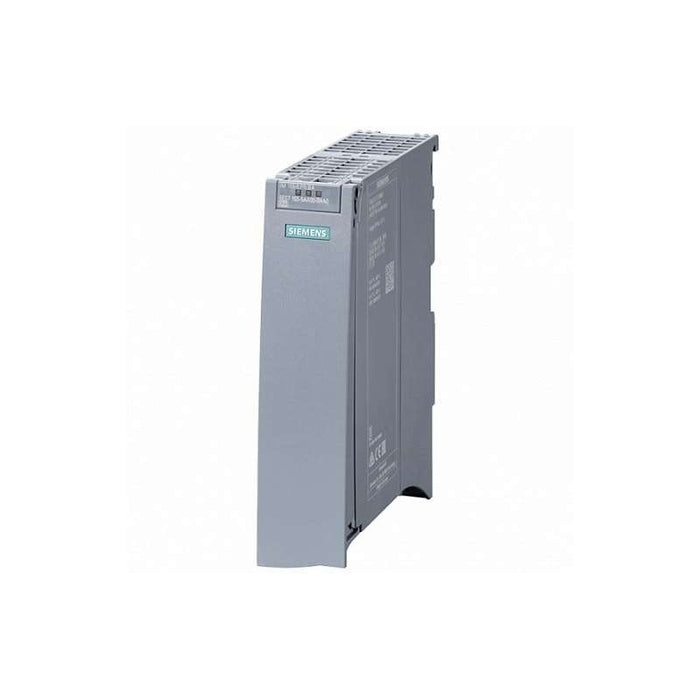

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7155-5AA01-0AB0 Siemens

Name: 6ES7155-5AA01-0AB0 Siemens
Brand: Siemens
SKU: 6ES7155-5AA01-0AB0
Price: 600.0 USD
Availability: InStock

$600.00 - $1,695.00

$600.00

$600.00 - $1,695.00

$600.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC ET 200MP Interface Module IM 155-5 PN ST (6ES7155-5AA01-0AB0) is a Profinet IO-Device interface module designed for the ET 200MP distributed I/O system. It manages communication between a Profinet network and up to 12 ET 200MP I/O modules without an external power supply-or up to 30 with additional shared power segments. It includes isochronous and IRT operation modes, media redundancy, and supports I&M level 0-3 and FSU with 500 ms. Typical industrial use includes distributed machine control, synchronized motion applications, and mid-size automation stations. 6ES7155-5AA01-0AB0 integrates seamlessly into TIA Portal environments.

Best Suited For

Distributed ET 200MP I/O installations via Profinet
Applications requiring isochronous/IRT communication
Systems needing media redundancy (MRP)
Motion-synchronized automation tasks
Projects implemented in TIA Portal environments

Backplane bus power (available)

14 W

Max I/O modules supported

30 (with additional PS)

Profinet ports

2 (integrated switch)

Current consumption (rated)

0.2 A at 24 V DC

Typical power loss

4.5 W

Technical Specifications

I/O & Electrical

Supply voltage (DC)

24 V (19.2 ... 28.8 V DC)

Reverse-polarity protection

Yes

Short-circuit protection

Yes

Mains buffering energy time

10 ms

Current consumption (rated)

0.2 A at 24 V DC

Current consumption (max)

1.2 A

Inrush current (max)

9 A

I²t

0.09 A²·s

Communication & Power

Backplane bus power provided

14 W

Power consumption from backplane (separate PS)

2.3 W

Typical power loss

4.5 W

PROFINET ports

2 × RJ-45, 100 Mbit/s full-duplex

Media redundancy (MRP)

Yes

Isochronous mode / IRT

Yes

Physical & Environmental

Weight

0.280 kg

Packaging dimensions

15.10 × 15.10 × 4.70 cm

Certifications

RoHSWEEE
