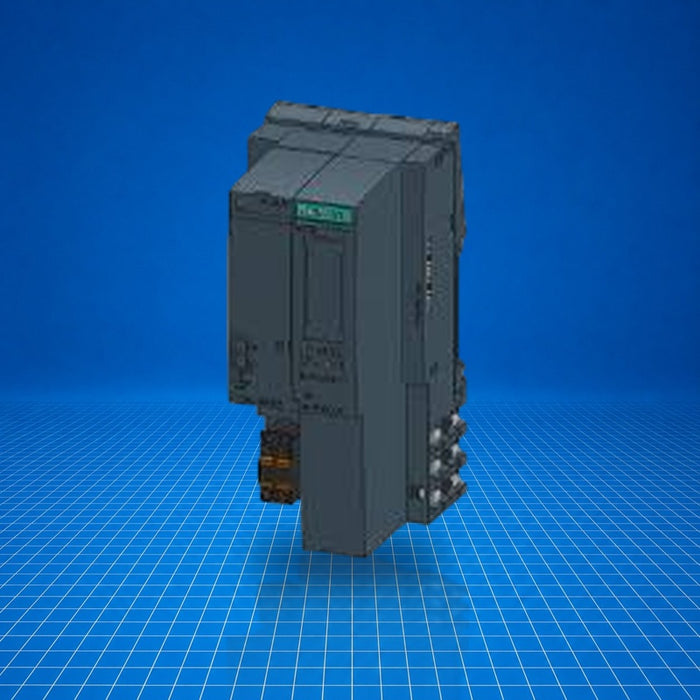

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7155-6AA00-0BN0 Siemens
Original price
$0.00
-
Original price
$2,132.36
Original price
$2,132.36
$0.00
-
$2,132.36
Current price
$2,132.36
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7155-6AA00-0BN0 is a SIMATIC ET 200SP PROFINET interface module (IM 155-6 PN ST) from Siemens, configured as a bundle that includes the interface module, a server module, and a BA 2x RJ45 BusAdapter. It serves as the PROFINET communication gateway, facilitating connection of up to 32 ET 200SP I/O modules or 16 ET 200AL modules in distributed automation architectures. It supports single-module hot swapping and I&M data, and integrates with STEP 7 (TIA Portal) for configuration.
Best Suited For
- Distributed I/O expansion in PROFINET-based control systems
- Applications requiring modular I/O scalability (up to 32 ET 200SP or 16 ET 200AL)
- Systems needing on-the-fly module replacement (hot swapping)
- Configuration and diagnostics via I&M data in STEP 7 environments
Max I/O modules
32 ET 200SP / 16 ET 200AL
Hot-swap capability
Single-module hot swapping
PROFINET interface
IM 155-6 PN ST bundle
I&M diagnostic data
I&M0 to I&M3
Technical Specifications
Communication & Power
Supply voltage (rated)
24 V DC
Supply voltage (range)
19.2 V - 28.8 V DC
Reverse-polarity protection
Yes
Short-circuit protection
Yes
Mains buffering (stored energy)
10 ms
Current consumption (typ.)
450 mA
Current consumption (max.)
550 mA
Inrush current, max.
3.7 A
I²t
0.09 A²·s
Power loss (typ.)
1.9 W
