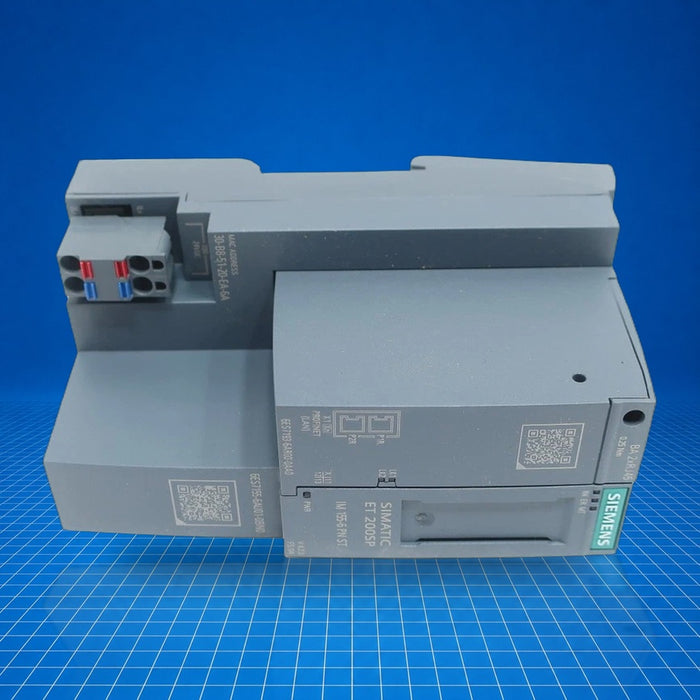

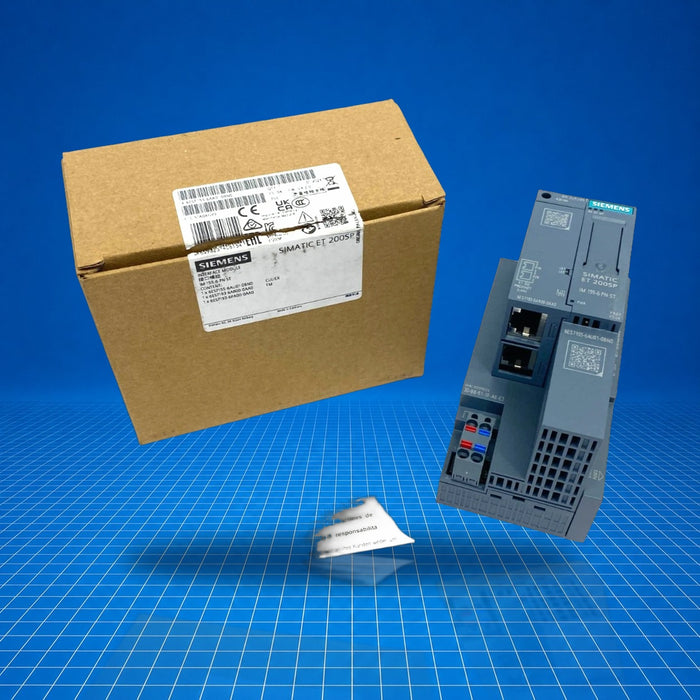

6ES7155-6AA01-0BN0 Siemens
Original price
$0.00
-
Original price
$584.97
Original price
$584.97
$0.00
-
$584.97
Current price
$584.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

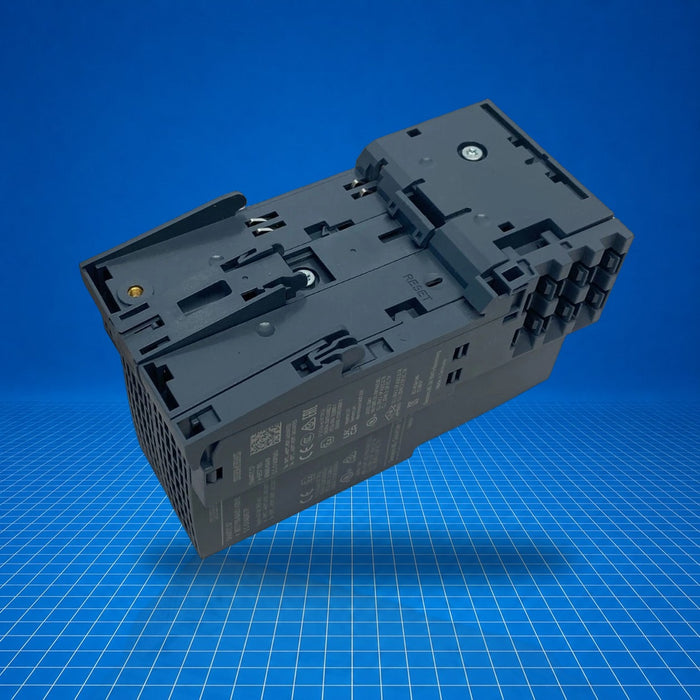

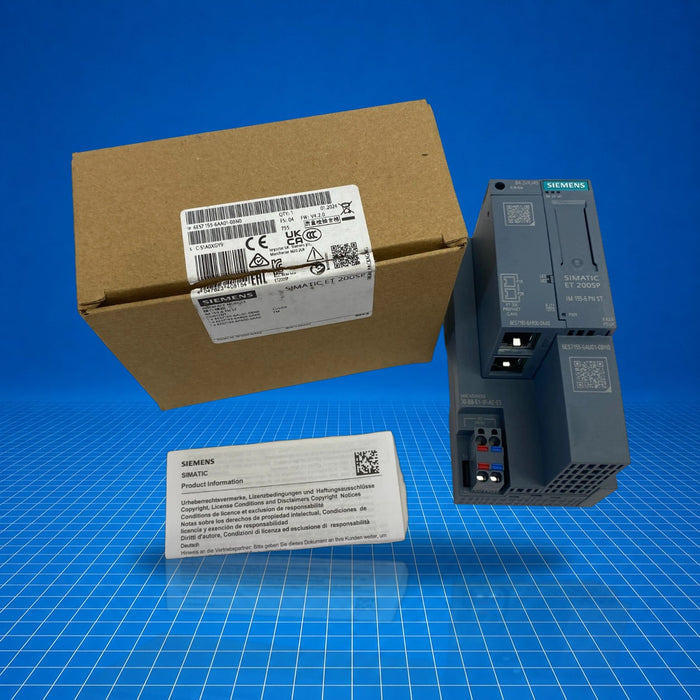

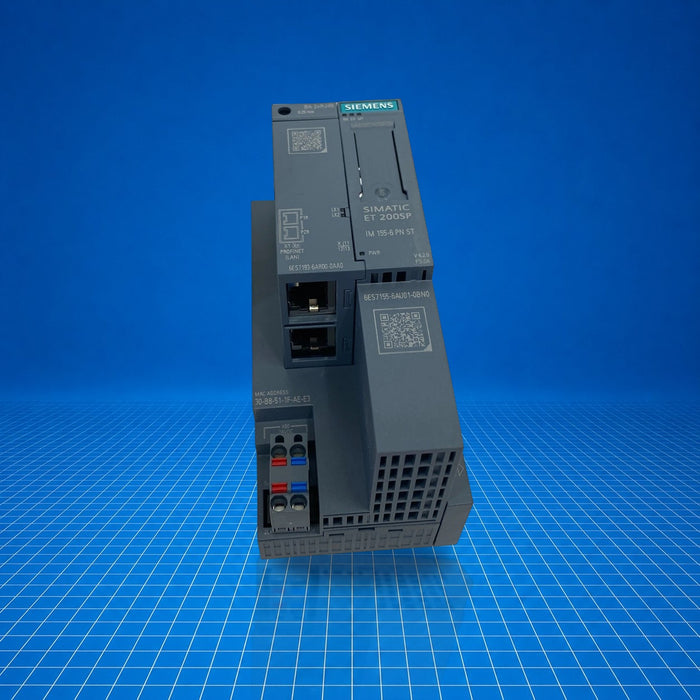

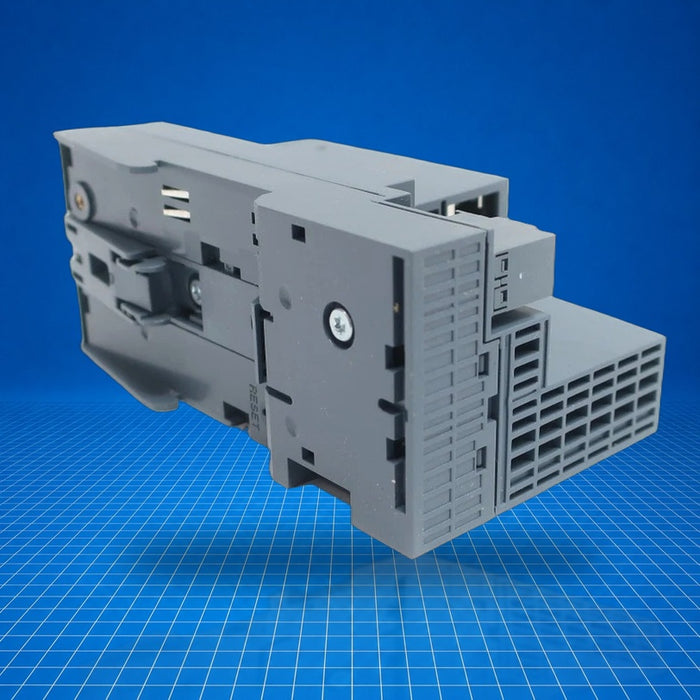

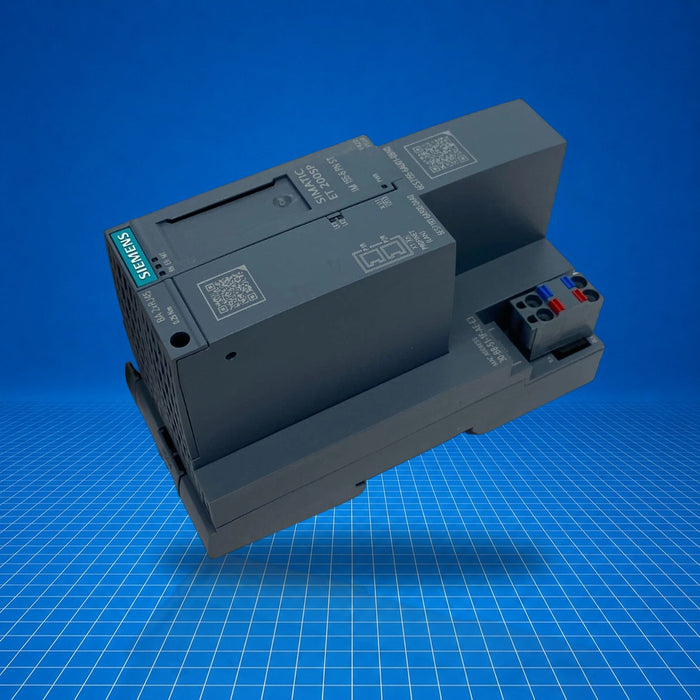

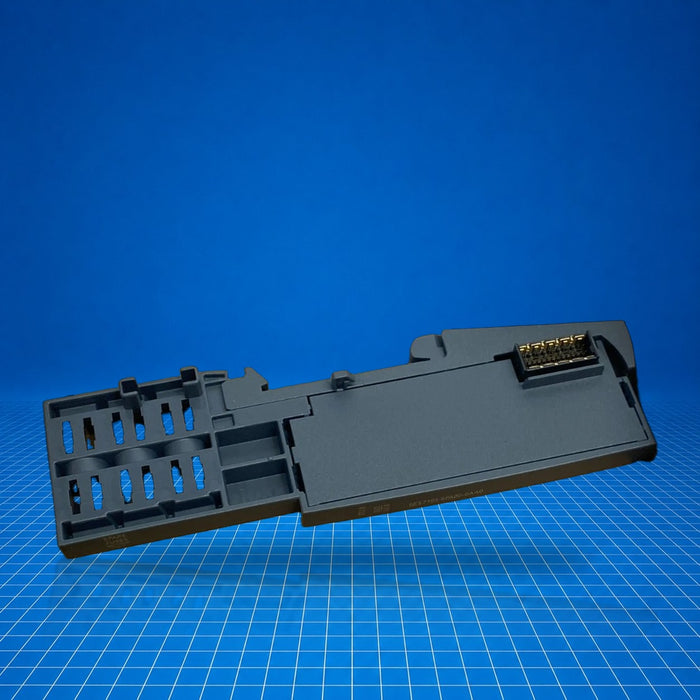

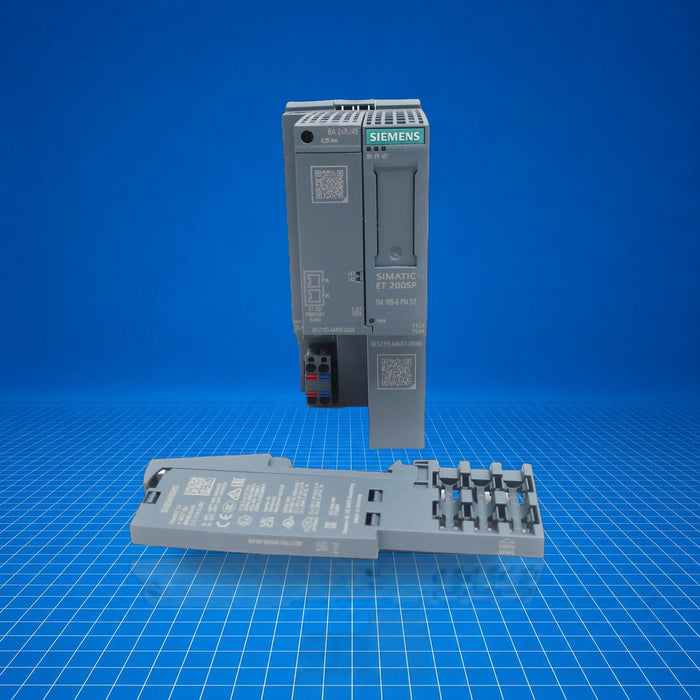

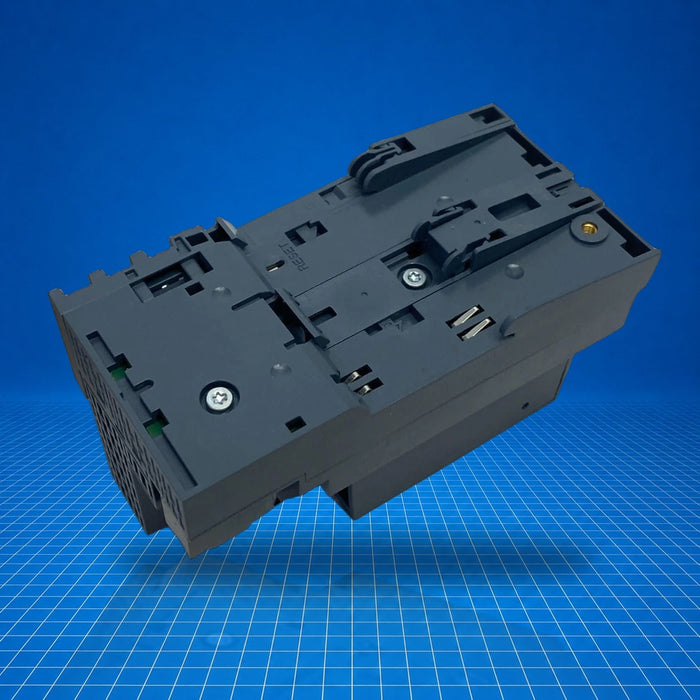

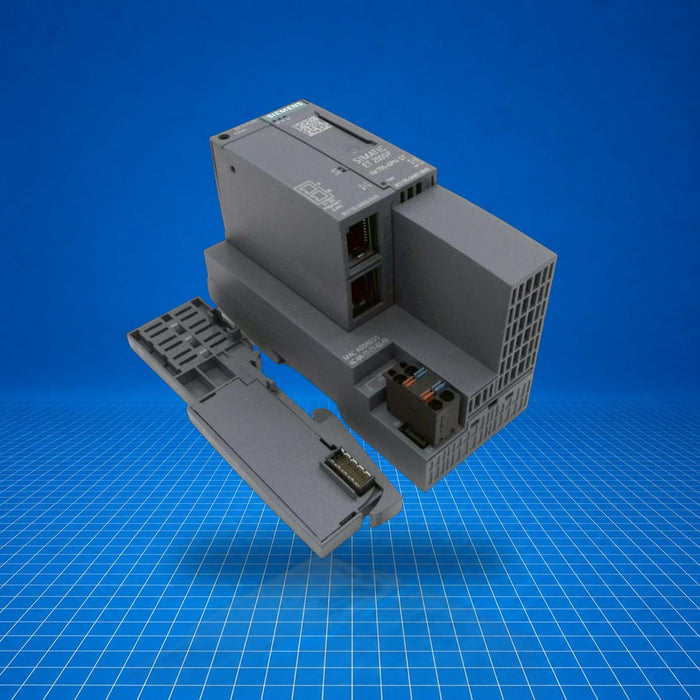

The Siemens part 6ES7155-6AA01-0BN0 is a SIMATIC ET 200SP PROFINET interface module bundle (IM 155-6PN ST) that includes the interface module (6ES7155-6AU01-0BN0), the server module (6ES7193-6PA00-0AA0), and the BusAdapter BA with two RJ45 connectors (6ES7193-6AR00-0AA0). It functions as the communication interface in a distributed I/O system, enabling connection and control of up to 32 ET 200SP peripheral modules or 16 ET 200AL modules via PROFINET. It supports single-module hot-swapping and integrates into TIA Portal-based engineering environments.
Best Suited For
- Distributed I/O applications via PROFINET
- Systems requiring hot-swap capability for ET 200SP modules
- Configurations up to 32 ET 200SP or 16 ET 200AL modules
- TIA Portal engineering environments (V14 or later)
Max peripheral modules
32 ET 200SP / 16 ET 200AL
Hot-swap capability
Single-module hot swapping
Supply voltage
24 V DC (19.2 - 28.8 V)
Current consumption (typ./max)
450 mA / 550 mA
Technical Specifications
I/O & Electrical
Supply voltage (rated)
24 V DC
Supply voltage (permissible range)
19.2 V - 28.8 V DC
Reverse-polarity protection
Yes
Short-circuit protection
Yes
Current consumption (typical)
450 mA
Current consumption (maximum)
550 mA
Inrush current (maximum)
3.7 A
I²t
0.09 A²·s
Power loss (typical)
1.9 W
Communication & Power
Communication interface
PROFINET IM 155-6PN ST (with BusAdapter BA 2×RJ45)
Firmware version
V4.2
Firmware update
Yes
Engineering support
TIA Portal from V14; STEP 7 from V5.5 SP4
Address space per module (max)
256 bytes for input and output data each
Address space per station (max)
512 bytes
Physical & Environmental
Max modules (ET 200SP)
32
Max modules (ET 200AL)
16
Hot-swap
Single-module hot swapping
