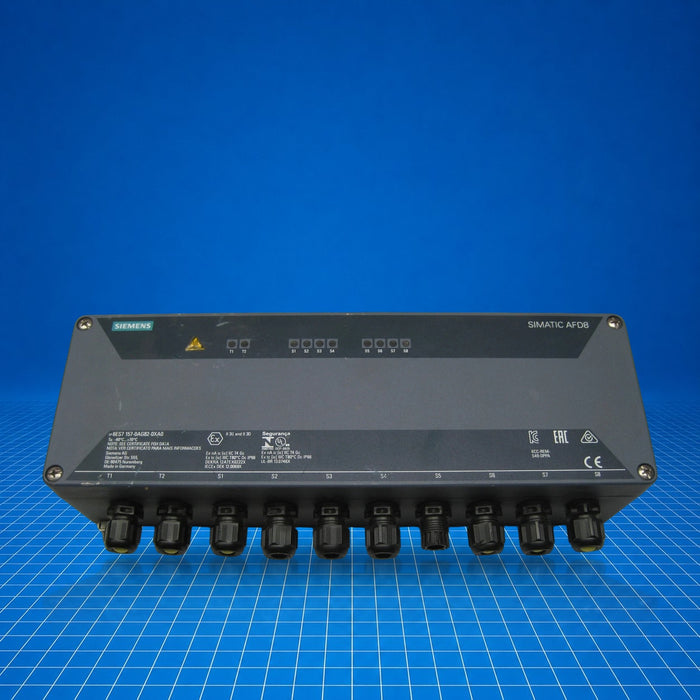

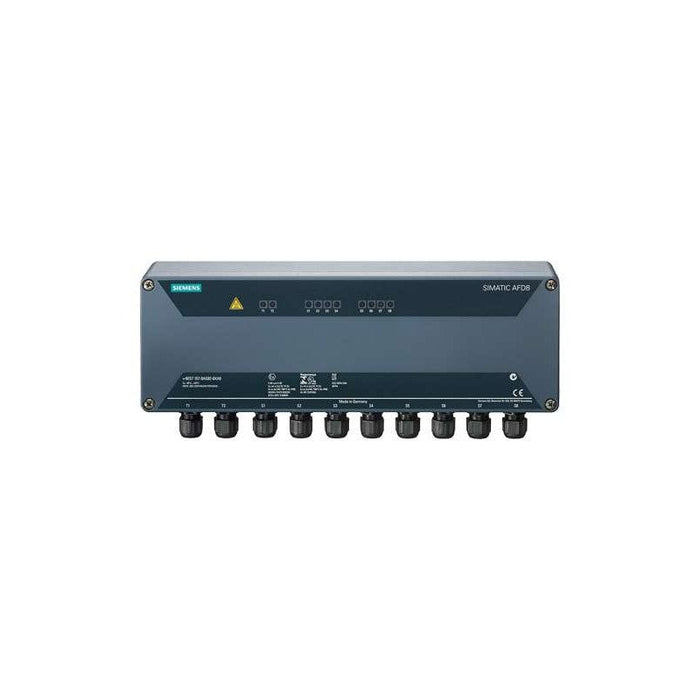

6ES7157-0AG82-0XA0 Siemens
Original price
$0.00
-
Original price
$3,375.00
Original price
$3,375.00
$0.00
-
$3,375.00
Current price
$3,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Siemens 6ES7157-0AG82-0XA0 is an AFD8 active field distributor for PROFIBUS PA and FOUNDATION Fieldbus H1 networks. It provides eight short-circuit-proof spur lines with bounce-protection logic and automatic bus termination, supporting line and ring topologies in extended temperature environments. The device draws power from the bus (no auxiliary supply) and delivers spur-line power to field devices, serving to distribute and condition fieldbus signals and power in process automation and hazardous area installations. Its IP66 enclosure permits installation in harsh industrial environments.
Best Suited For
- Integration of PROFIBUS PA and FOUNDATION Fieldbus H1 networks
- Fieldbus spur-line power distribution in Class I Zone 2 / Div 2 areas
- Line or ring topology fieldbus installations
- Environments requiring IP66 protection and extended temperature operation
Spur lines
8
Supply voltage (bus)
16 V - 32 V DC
Degree of protection
IP66
Output ports
PROFIBUS PA & Fieldbus H1
Operating temp range
-40 °C to 70 °C
Technical Specifications
I/O & Electrical
Spur-line count
8
Current per spur line (max)
60 mA
Total current output (max)
480 mA
Short-circuit proof
Yes
Bounce-protection logic
Yes
Communication & Power
Interfaces/protocols
PROFIBUS PA, FOUNDATION Fieldbus H1
Supply voltage (bus)
16 V - 32 V DC
Polarity reversal protection
Yes (with FDC 157)
Power consumption (no-load)
34 mA
Additional power at EOL
30 mA
Max current output per spur
514 mA
Power loss (min)
544 mW
Power loss (max)
4.1 W
Physical & Environmental
Dimensions (W × H × D)
360 × 120 × 83 mm (without cable gland)
Mounting dimensions
344 × 82 mm
Weight
3000 g
Operating temperature
-40 °C to 70 °C
Storage/transport temperature
-40 °C to 85 °C
Relative humidity (max)
95 % (non-condensing)
Degree of protection
IP66
Hazardous area rating
Class I Zone 2 / Div 2; Class II, III Div 2
Certifications
ATEX Zone 2FM Class I Division 2IECExEU Declaration of ConformityUK Declaration of ConformityChina RoHSRCMEACIECExInmetroEPD Type II
