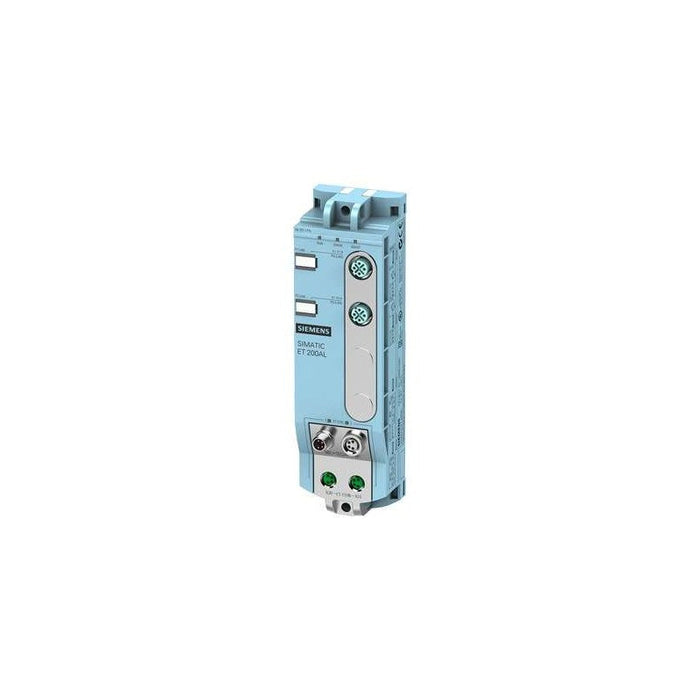

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6ES7157-1AB00-0AB0 Siemens

Name: 6ES7157-1AB00-0AB0 Siemens
Brand: Siemens
SKU: 6ES7157-1AB00-0AB0
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 6ES7157-1AB00-0AB0 is a SIMATIC ET 200AL PROFINET interface module (IM 157-1 PN) providing a PROFINET IO Device connection for distributed I/O systems. It enables module-level networking within SIMATIC ET 200AL architectures and supports I&M data (I&M 0 to I&M 4) and IRT (Isochronous Real Time) communication. The module integrates into TIA Portal (from STEP 7 V13 SP1 or V5.5 SP4 Hotfix 3) and accepts GSDML V2.3.1, facilitating engineering and configuration. Typical applications include remote distributed I/O installations in harsh environments, machine-level decentralization, and mobile or washdown scenarios.

Best Suited For

SIMATIC ET 200AL distributed I/O networks
PROFINET IO Device connectivity
Applications requiring I&M data and IRT support
Environments requiring IP67-rated modules

Supply voltage

24 V DC

Load voltage range

20.4 … 28.8 V DC

Current consumption

100 mA

Power loss (typ.)

2.9 W

Weight

263 g

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC

Voltage range, lower limit

20.4 V DC

Voltage range, upper limit

28.8 V DC

Reverse polarity protection

Yes; against destruction

Current consumption

100 mA

Max unswitched load current (1L+)

4 A

Max load current 2L+

4 A

Power loss (typ.)

2.9 W

Communication & Power

Interfaces

2× M12 D-coded PROFINET ports (integrated switch)

PROFINET IO Device support

Yes

IRT support

Yes

I&M data levels

I&M0 to I&M4

Physical & Environmental

Degree of protection

IP67

Dimensions (W × H × D)

45 mm × 159 mm × 40 mm

Weight (approx.)

263 g

Certifications

RoHSREACH
