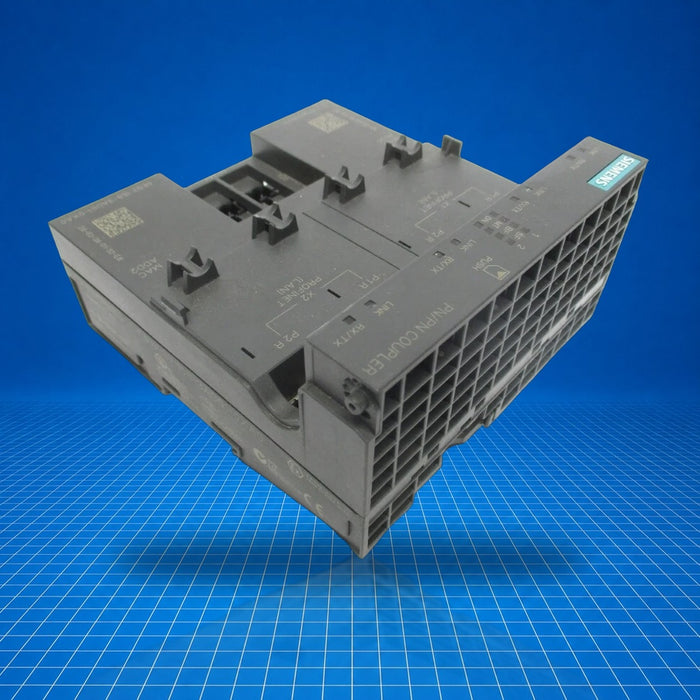

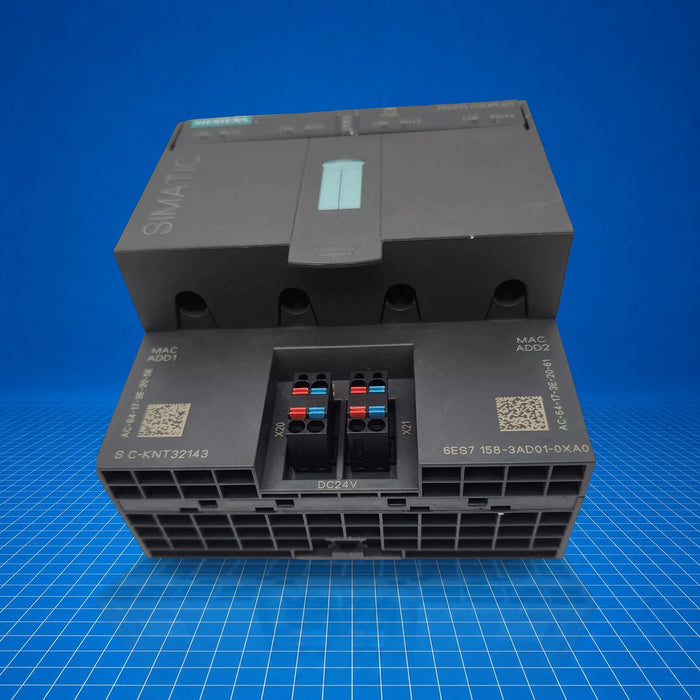

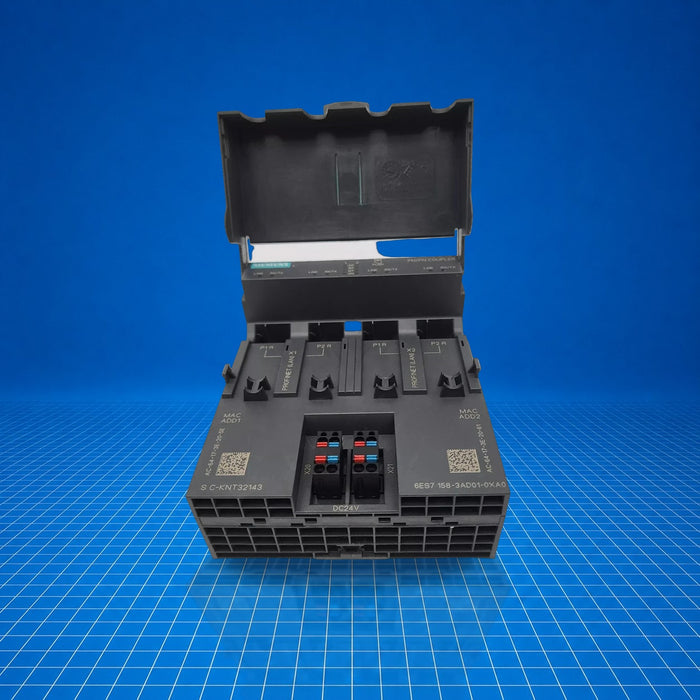

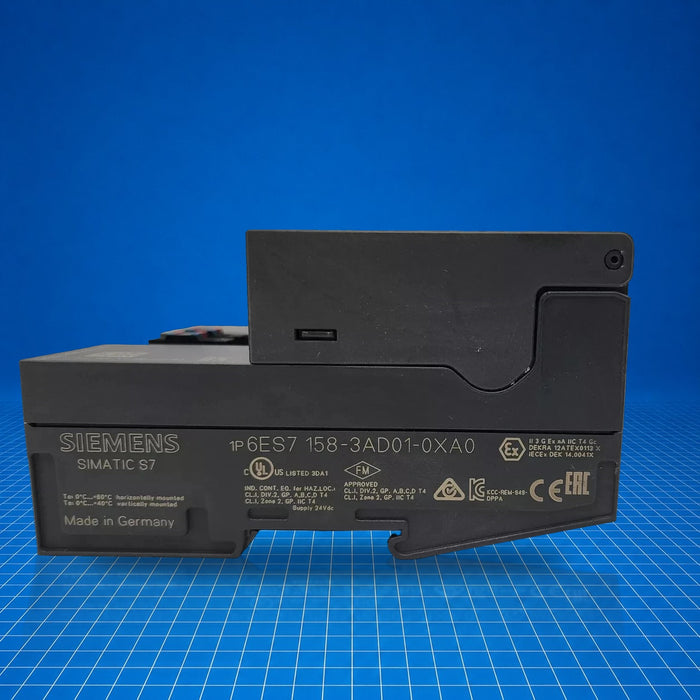

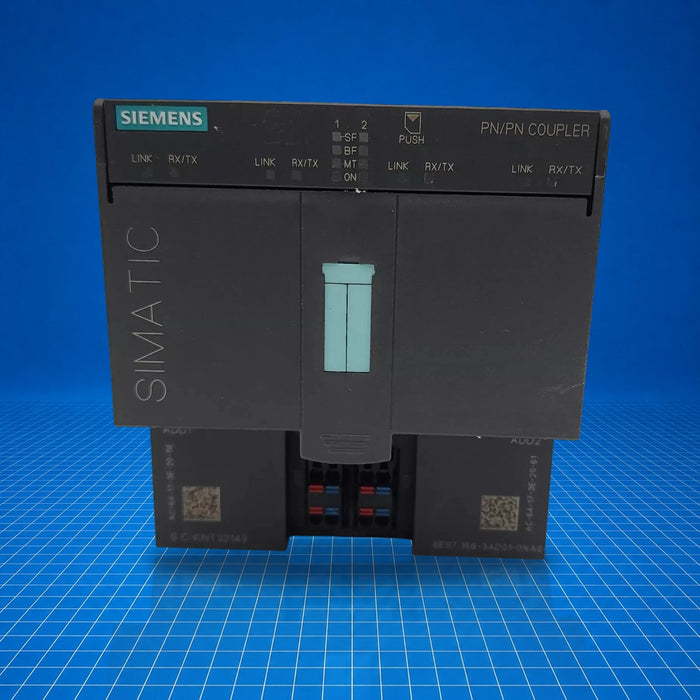

6ES7158-3AD01-0XA0 Siemens

Name: 6ES7158-3AD01-0XA0 Siemens
Brand: Siemens
SKU: 6ES7158-3AD01-0XA0
Price: 309.39 USD
Availability: InStock

$309.39 - $3,937.50

$309.39

$309.39 - $3,937.50

$309.39

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6ES7158-3AD01-0XA0 is a SIMATIC PN/PN coupler module used to link two PROFINET networks within automation systems. It functions as a network gateway with internal switching capability, supporting data exchange between controllers over PROFINET IO. Typical installations include distributed control systems where isolating or segmenting real-time Ethernet subnets is required, such as machine-to-machine communication, line segmentation, or redundant network topologies. The part number 6ES7158-3AD01-0XA0 appears in project documentation and compatibility discussions with successor variants.

Best Suited For

Linking two PROFINET IO subnets
Network segmentation in distributed automation
Machine-to-machine Ethernet coupling
Legacy integration where successor models aren't available

Ethernet ports

4× RJ45

Dimensions (W×H×D)

120×132×75 mm

Weight

282 g

Rated supply voltage

DC 24 V (20.4 V…28.8 V)

PROFINET transfer rate

100 Mbit/s full-duplex

Technical Specifications

I/O & Electrical

Rated supply voltage

DC 24 V (20.4 V … 28.8 V)

Reverse-polarity protection

Yes

Power-failure bypass

Min. 5 ms

Communication & Power

Transfer rate

10 Mbit/s (Ethernet services); 100 Mbit/s full-duplex (PROFINET IO)

Transmission method

100BASE-TX

Autonegotiation

Yes

Auto crossing

Yes

Internal switch

Yes

Supported Ethernet services

ping, LLDP, arp, Net diagnostics (SNMP) / MIB-2

Max record length

8192 bytes

Send cycle (IRT high performance)

250 µs to 4 ms in 125-µs increments

Send cycle (IRT high flexibility/RT)

250 µs, 500 µs, 1 ms (plus up to 4 ms for RT)

Physical & Environmental

Dimensions (W×H×D)

120×132×75 mm

Weight

282 g
