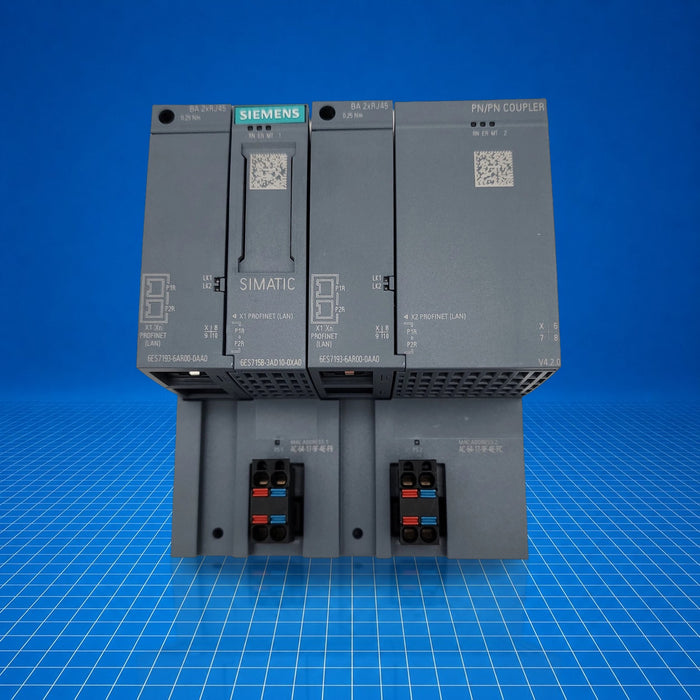

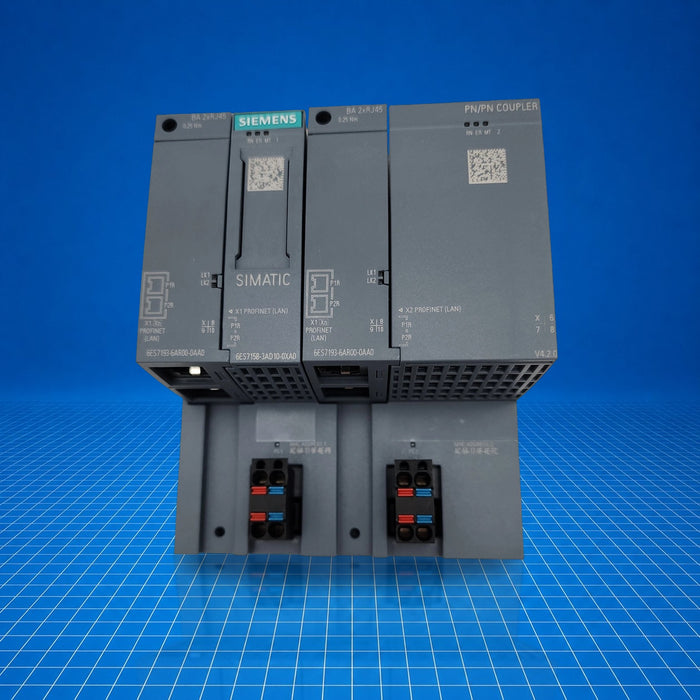

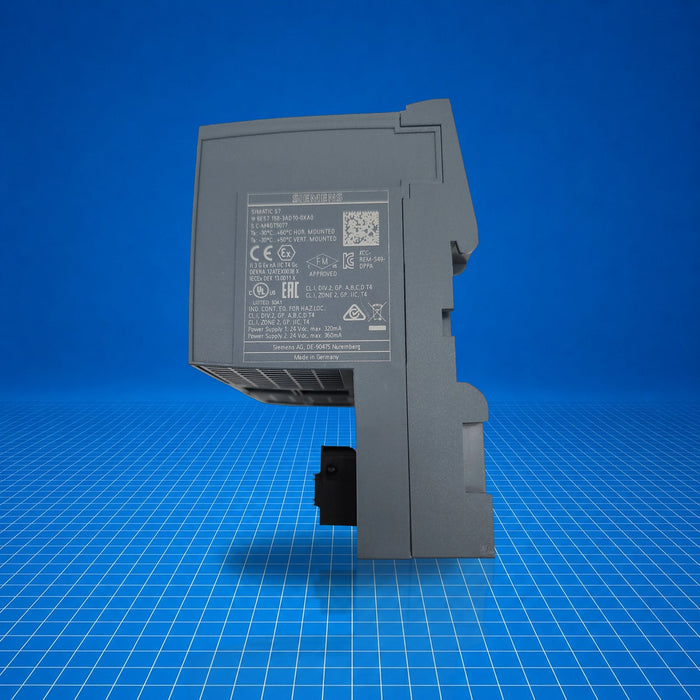

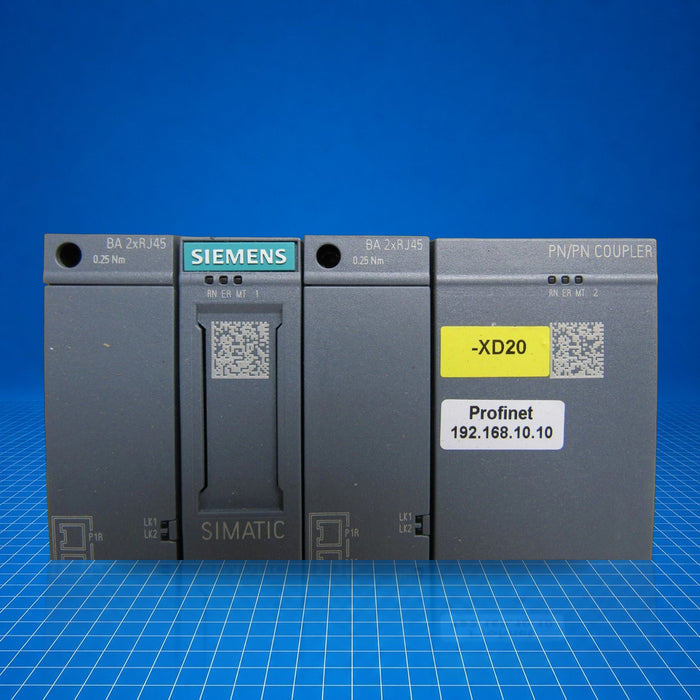

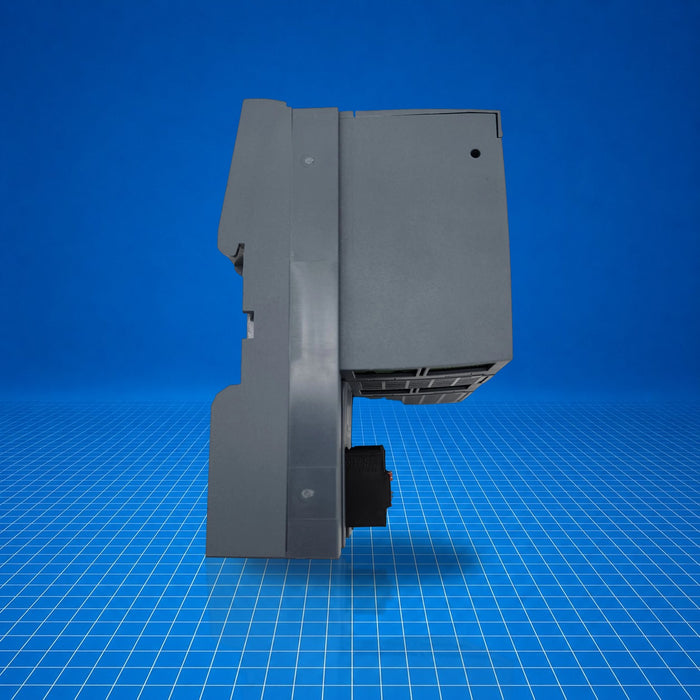

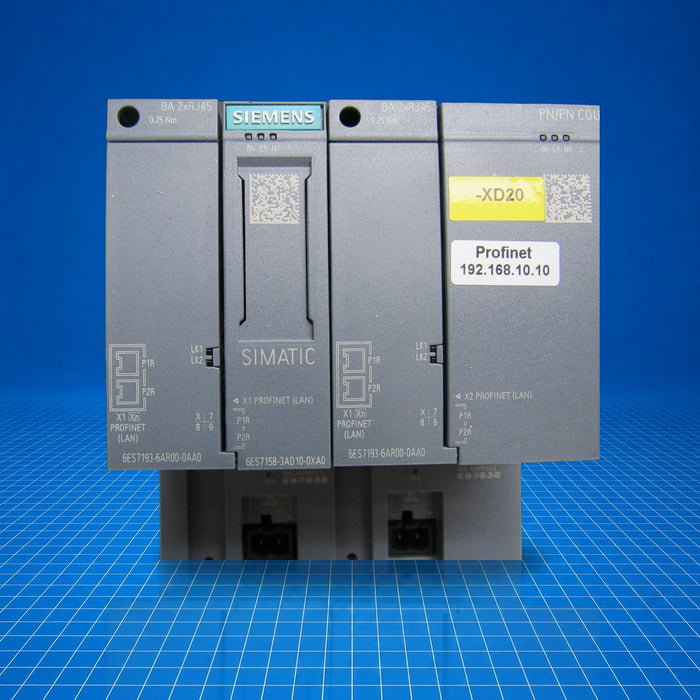

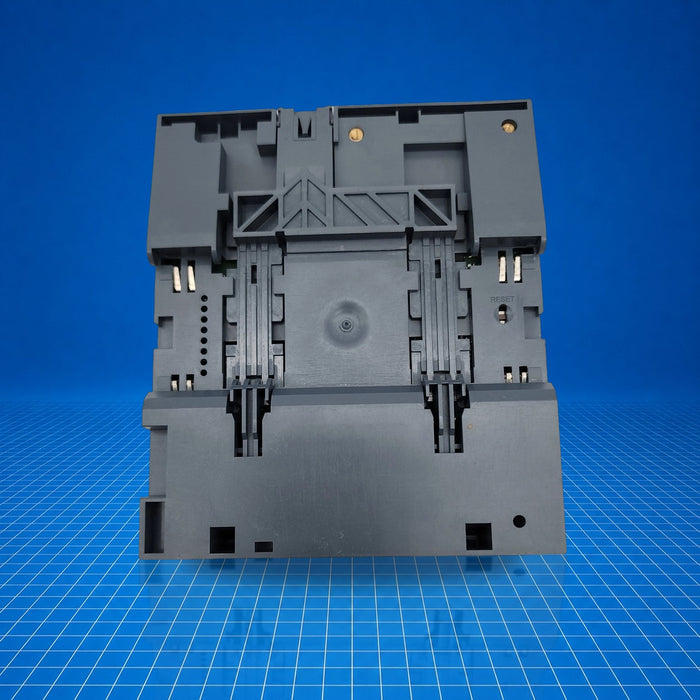

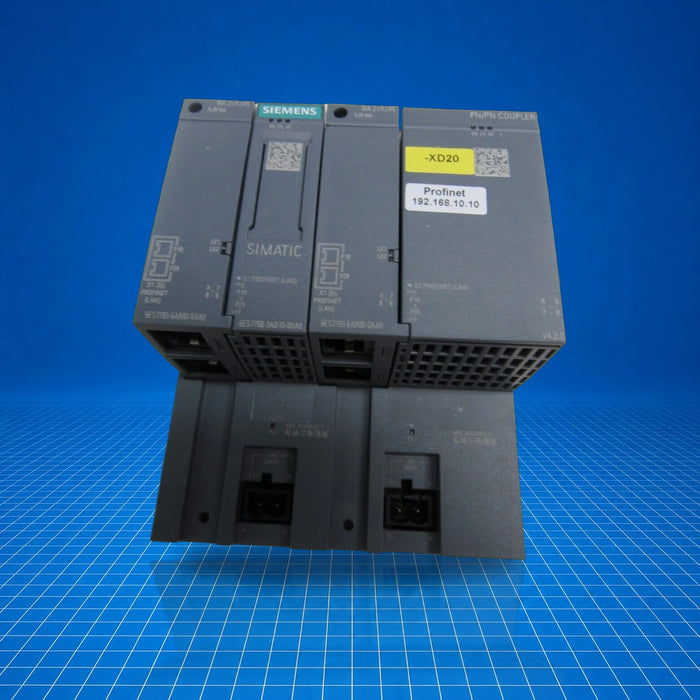

Product image is representative; revision or series may vary.
Contact us to request a specific version.

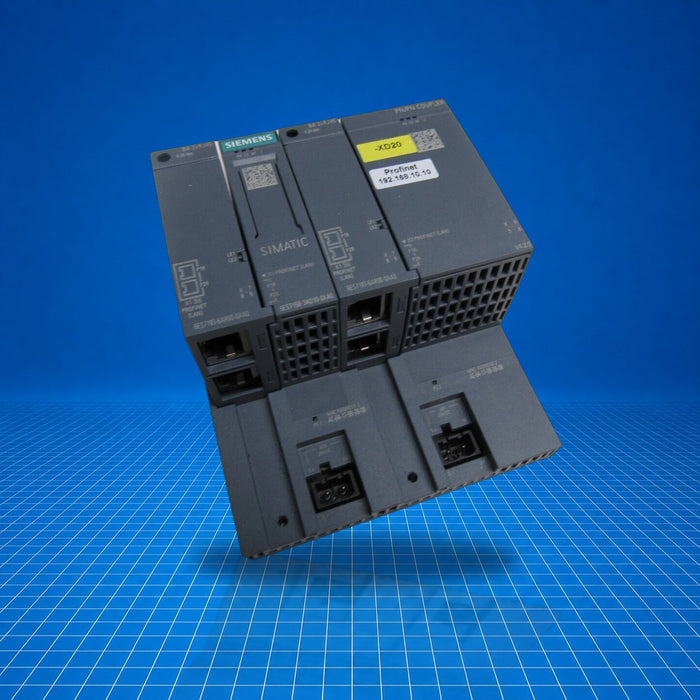

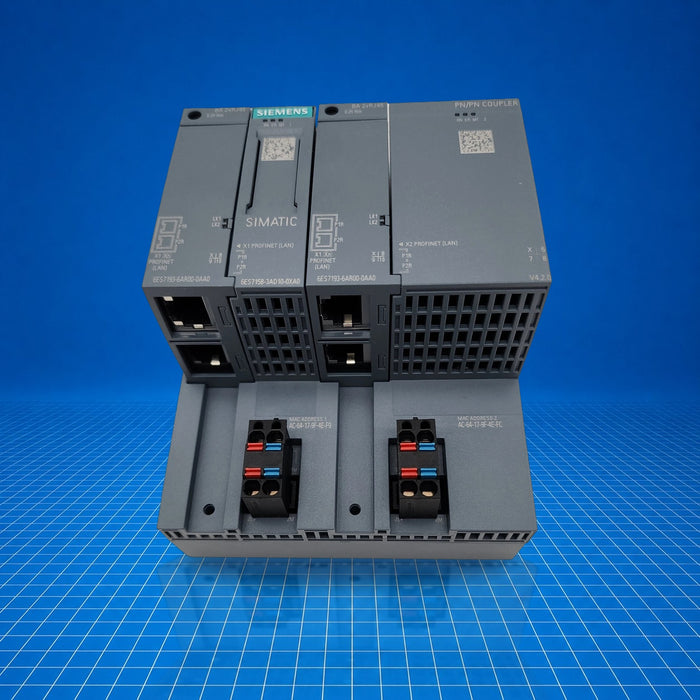

6ES7158-3AD10-0XA0 Siemens

Name: 6ES7158-3AD10-0XA0 Siemens
Brand: Siemens
SKU: 6ES7158-3AD10-0XA0
Price: 600.0 USD
Availability: InStock

$525.00 - $600.00

$600.00

$525.00 - $600.00

$600.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (3) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC PN/PN Coupler 6ES7158-3AD10-0XA0 is a fieldbus gateway that enables deterministic data exchange between up to four PROFINET-controller subnets or from subnet to subnet. It also supports PROFIsafe data exchange and communication of I/O data, data records, MSI and MSO messages. The module supports redundant power supply using SIMATIC BusAdapters (not included) and integrates with STEP 7/TIA Portal for configuration. Typical applications include inter-subnet bridging in distributed control systems, safety data exchange, and data logging in industrial automation.

Best Suited For

Bridge multiple PROFINET-controller subnets
Implement PROFIsafe data exchange
Transfer I/O and data record communication across networks
Use in modular automation architectures

Power supply

24 V DC

Max I/O data

1440 byte in/out

Coupling modules (non-isochronous)

16 modules

Isochronous mode cycle time

500 µs

PROFINET interfaces per side

2 (via BusAdapter)

Technical Specifications

I/O & Electrical

Rated voltage

24 V DC

Permissible range

19.2 - 28.8 V DC

Reverse-polarity protection

Yes

Max current consumption

360 mA (at 19.2 V including 2× BA 2× LC)

Inrush current

1.6 A

Stored energy time at voltage failure

10 ms

Communication & Power

PROFINET interfaces

2 per line side (via BusAdapter)

Transmission rate

100 Mbit/s full-duplex (100BASE-TX)

Protocols supported

PROFINET IO, Open IE, MRP/MRPD (media redundancy mode, up to 50/30 devices), TCP/IP, SNMP, LLDP, ping

Physical & Environmental

Mounting

Top-hat rail 7.5 mm and 15 mm

Weight

0.258 kg

Packaging dimensions

13.30 × 13.40 × 8.50 cm

Certifications

RoHS
