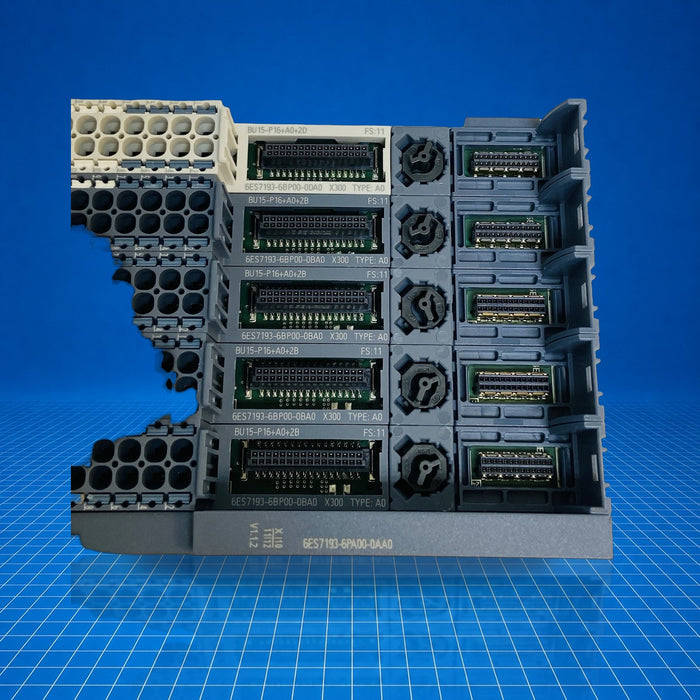

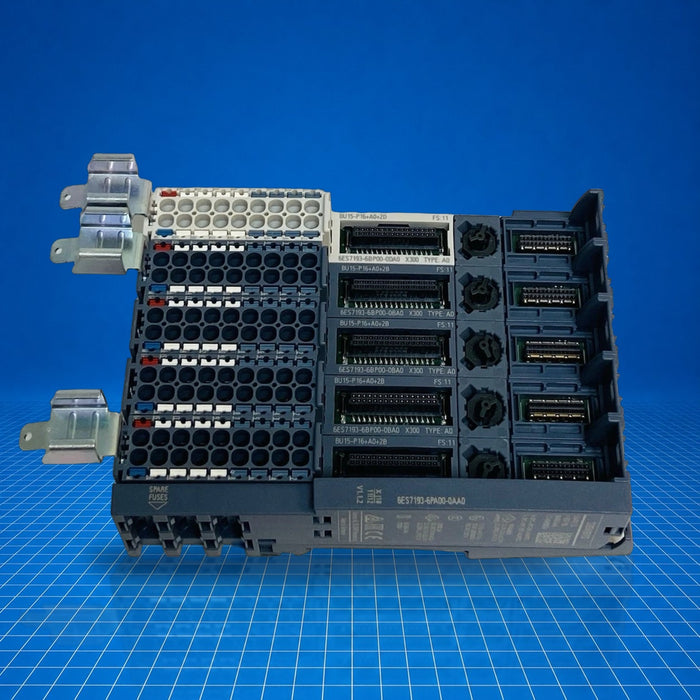

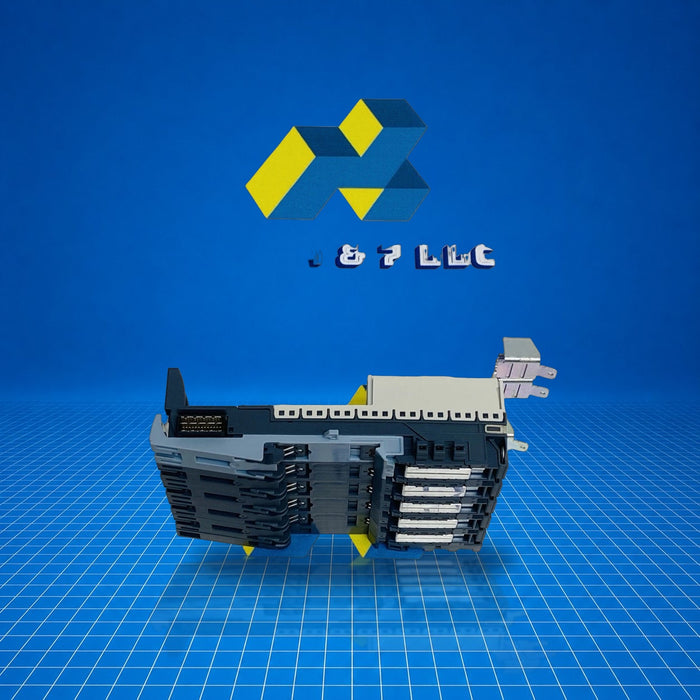

6ES7193-6BP00-0BA0 Siemens
Original price
$400.00
-
Original price
$1,306.25
Original price
$1,306.25
$400.00
-
$1,306.25
Current price
$1,306.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

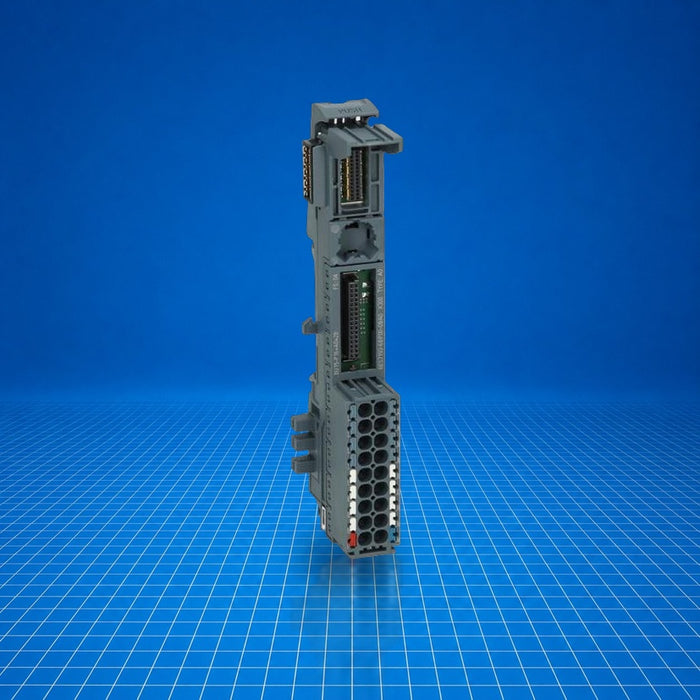

The Siemens 6ES7193-6BP00-0BA0 is a SIMATIC ET 200SP BaseUnit (BU) of type A0. It provides a foundation module for ET 200SP I/O systems, enabling mounting of a single I/O module and supplying the shared P1/P2 backplane bus. This BaseUnit includes push-in terminals and is designed for use without auxiliary (AUX) terminals. It is positioned at the left side of an I/O station and is used in distributed control systems in manufacturing and process automation, supporting compact and modular on-machine or cabinet-mounted installations. The part number 6ES7193-6BP00-0BA0 is used to identify this specific configuration.
Best Suited For
- Distributed I/O systems in STAINLESS GENERAL ET 200SP architectures
- Left-most module in an ET 200SP I/O station
- On-machine installation requiring compact base module
- Modular expansion of control systems in cabinet or field mounting
Requires supply voltage
24 V DC
Supports I/O module slots
1 slot (type A0)
Backplane current capacity
P1/P2 bus 10 A, process terminals 2 A
Operating temperature range
-30 °C to 60 °C (horizontal), -30 °C to 50 °C (vertical)
Technical Specifications
I/O & Electrical
Supply voltage (rated value)
24 V DC
External protection required
24 V DC/10 A miniature circuit breaker, type B or C
Backplane bus current capacity (P1/P2)
10 A
Process terminal current capacity
2 A
Physical & Environmental
Slot count
1 (type A0)
Automatic encoding
Yes
Isolation test voltage
707 V DC
Operating temperature (horizontal)
-30 °C to 60 °C
Operating temperature (vertical)
-30 °C to 50 °C
Max installation altitude
5 000 m
