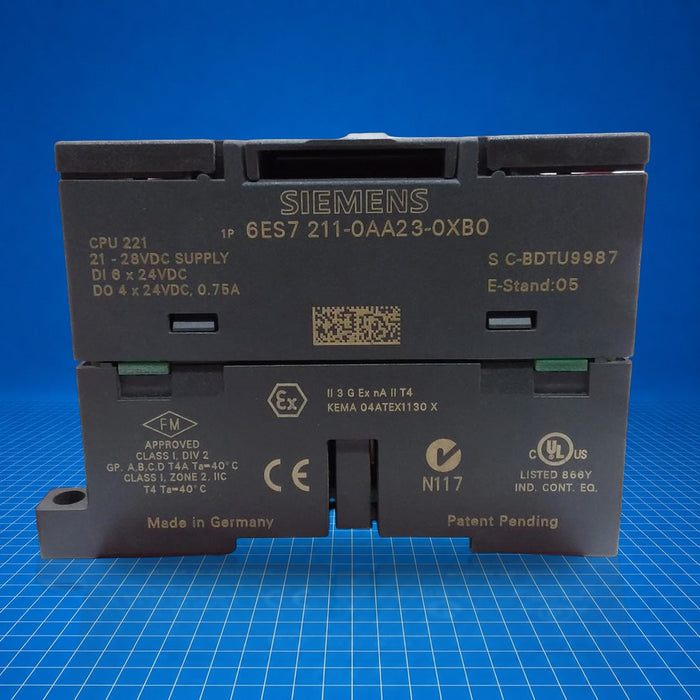

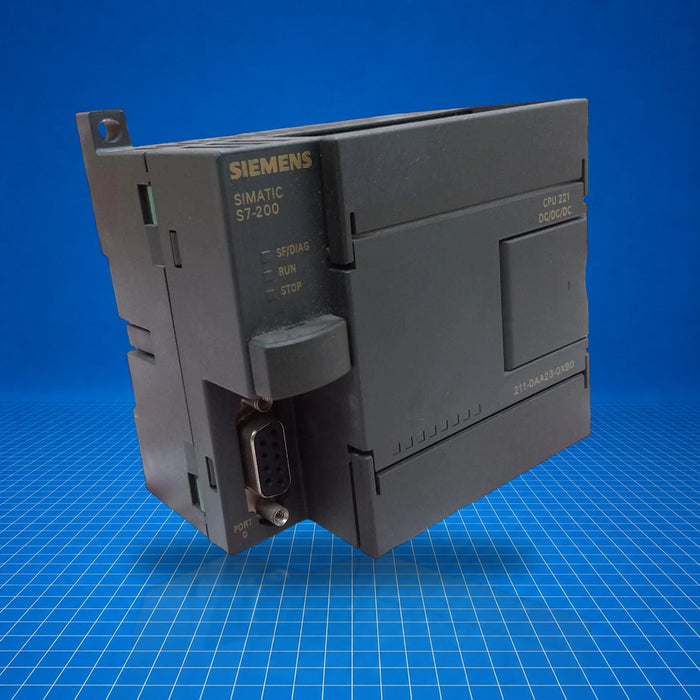

6ES7211-0AA23-0XB0 Siemens
Original price
$419.97
-
Original price
$483.42
Original price
$419.97
$419.97
-
$483.42
Current price
$419.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-200 CPU 221 Compact (6ES7211-0AA23-0XB0) is a micro PLC in the S7-200 family, providing 6 digital inputs and 4 digital outputs with integrated program and data memory. It functions as a standalone controller in compact automation tasks such as small machine control, sequential logic, and encoder interfacing. With built-in MPI/PPI serial communications and high-speed counting, it is designed for localized control on machines or modular systems requiring CPU-level logic processing.
Best Suited For
- Small machine control (stand-alone applications)
- Sequential logic and timing tasks
- High-speed counting or pulse output up to 20 kHz
- Encoder interface via 2-wire sensors
- Systems leveraging MPI/PPI serial communication
Program memory
4 kbyte
Data memory
2 kbyte
Digital inputs
6
Digital outputs
4
High-speed counters
4 at 30 kHz
Technical Specifications
I/O & Electrical
Input voltage
24 V DC (permissible 20.4 V to 28.8 V)
Input current (supply)
80 to 450 mA
Inrush current
10 A (at 28.8 V)
Digital inputs
6 sourcing/sinking
Input current per "1"
2.5 mA (typical)
Digital outputs (transistor)
4
Output switching capacity (resistive)
0.75 A per output
Output switching capacity (lamp)
5 W
Output current per group
3 A (up to 40 °C, all mounting positions)
Communication & Power
Power loss
3 W (typical)
Encoder supply voltage
24 V (15.4 V to 28.8 V)
Encoder supply current
180 mA (max)
RS-485 interface
MPI/PPI serial
MPI speed
19.2 to 187.5 kbit/s
PPI speeds
9.6/19.2/187.5 kbit/s
ASCII serial data exchange
1.2 to 115.2 kbps
Physical & Environmental
Memory module slot
1 (pluggable)
Backup
EEPROM + high-performance capacitor (optional battery)
Backup time
Typ. 200 days (battery); max 50 h (capacitor at 40 °C)
High-speed counters
4 at 30 kHz
Pulse outputs
2 at 20 kHz
Protection rating
IP20
Ambient temperature (operation)
0 °C to 55 °C (horizontal); 0 °C to 45 °C (vertical)
Air pressure
860 hPa to 1080 hPa
Certifications
ATEXFMBVDNVGLLRNKRMRSCCS
ATEX, FM, BV, DNV, GL, LR, NK, RMRS, CCS
