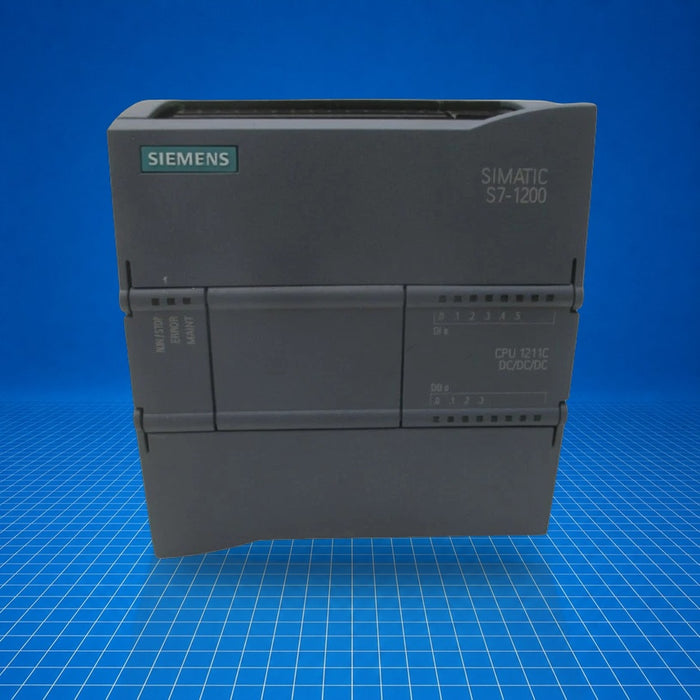

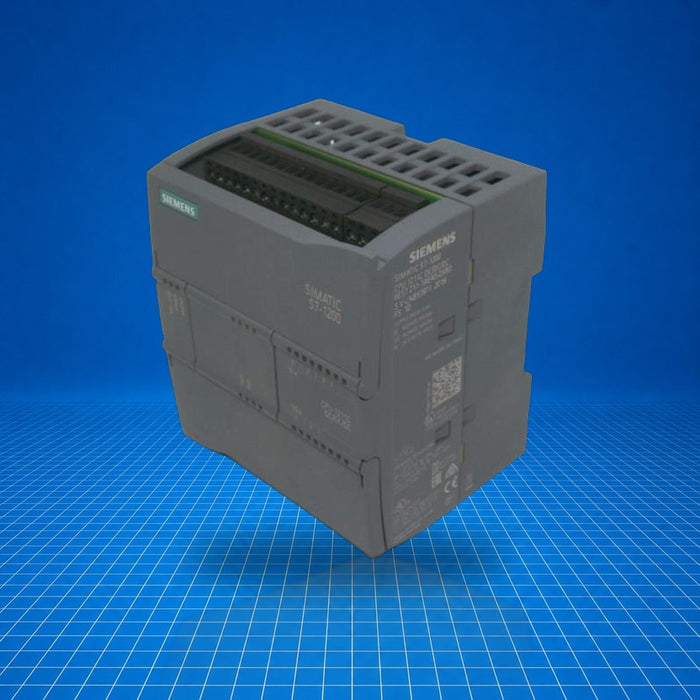

6ES7211-1AE40-0XB0 Siemens
Original price
$687.47
-
Original price
$1,405.00
Original price
$687.47
$687.47
-
$1,405.00
Current price
$687.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7211-1AE40-0XB0 is a SIMATIC S7-1200 CPU 1211C compact controller with DC/DC/DC configuration (integrated 24 V DC power supply, digital and analog I/O). It includes 6 digital inputs, 4 digital outputs, and 2 analog inputs (0-10 V DC), with 75 kB of program/data memory. Based on standard Siemens STEP 7 engineering, it serves as a central processing unit for mid-level control and automation tasks in discrete manufacturing, material handling, and machine-level control systems. This CPU integrates power supply, processing, and I/O in a compact housing.
Best Suited For
- Standalone machine control in S7-1200 systems
- Discrete manufacturing and conveyor systems
- Small to mid-size process and batch control
- Integration with PROFINET-based networks
On-board I/O
6 DI + 4 DO + 2 AI
Supply voltage range
20.4-28.8 V DC
Program/data memory
75 kB
Typical power loss
8 W
Firmware version
V4.7
Technical Specifications
I/O & Electrical
Digital inputs
6 DI, 24 V DC
Digital outputs
4 DO, 24 V DC
Analog inputs
2 AI, 0-10 V DC
Input current (rated)
300 mA (CPU only)
Current consumption, max
900 mA (with expansion)
Inrush current, max
12 A at 28.8 V DC
Communication & Power
PROFINET interface
1 port, RJ-45, 100 Mbit/s
Backplane bus output current
750 mA at 5 V DC
Firmware engineering package
STEP 7 V20 or higher
Physical & Environmental
Power loss (typical)
8 W
Weight
0.292 kg
Memory (work)
75 kB
Memory (load)
1 Mbyte
Firmware version
V4.7
