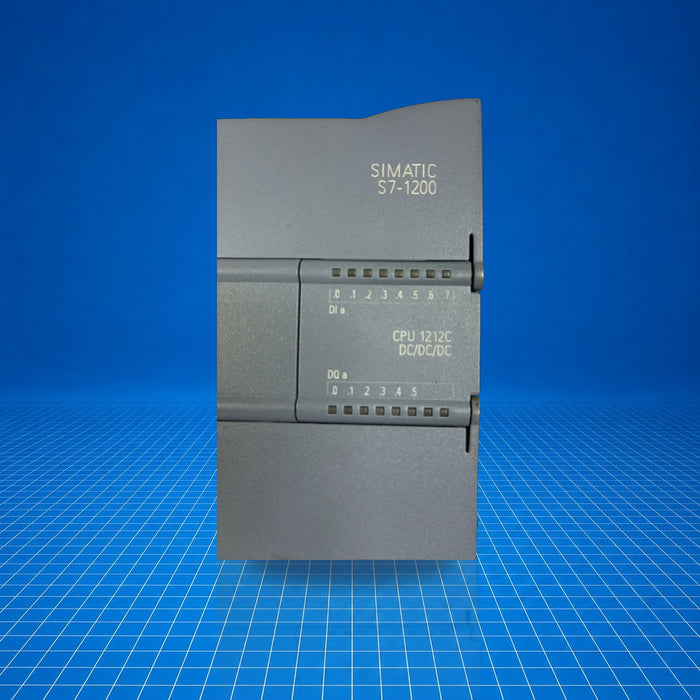

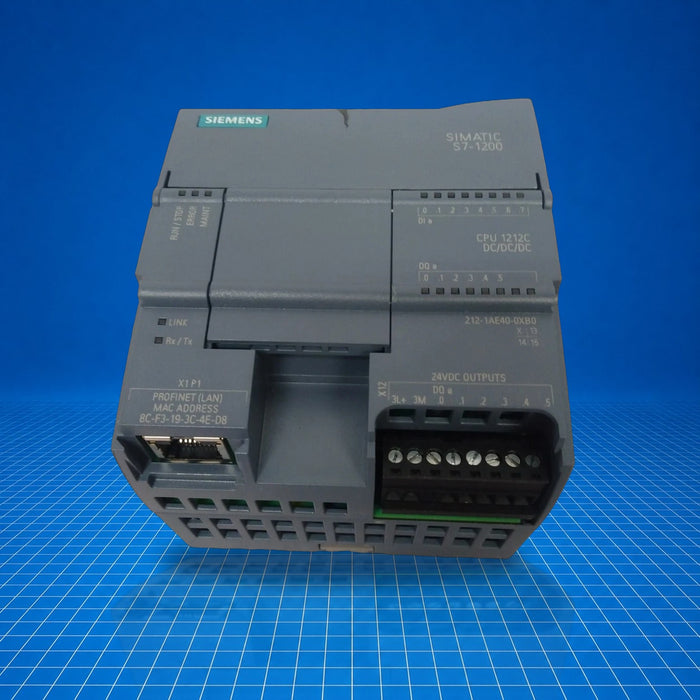

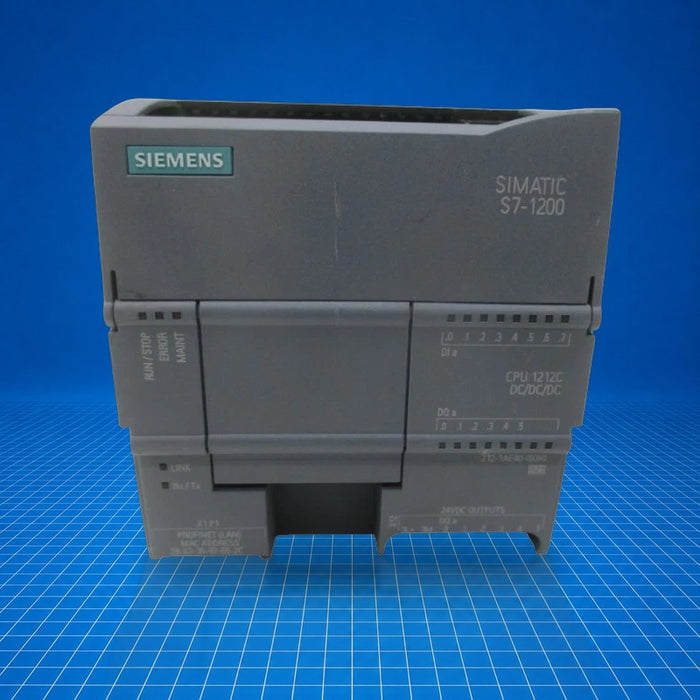

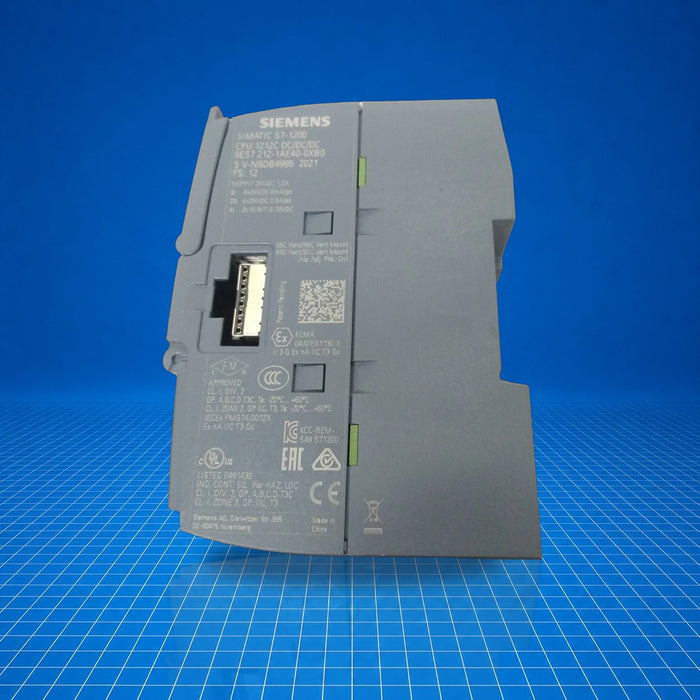

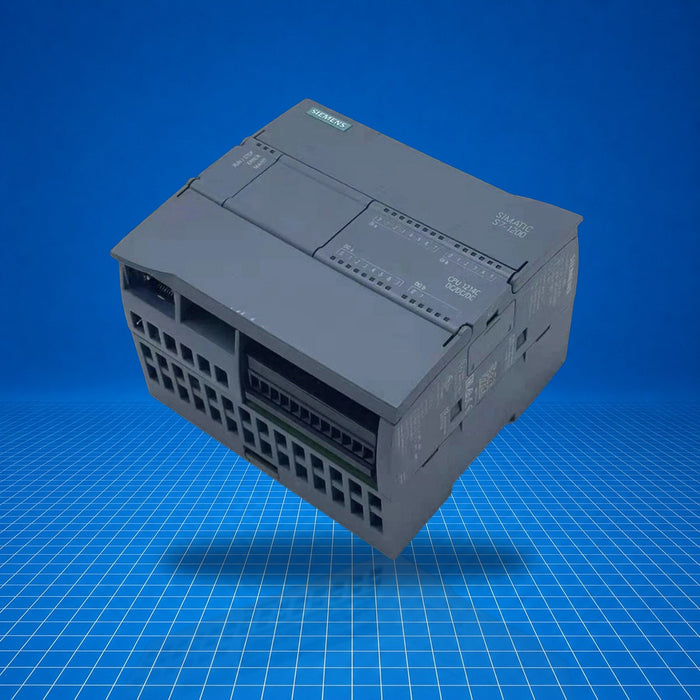

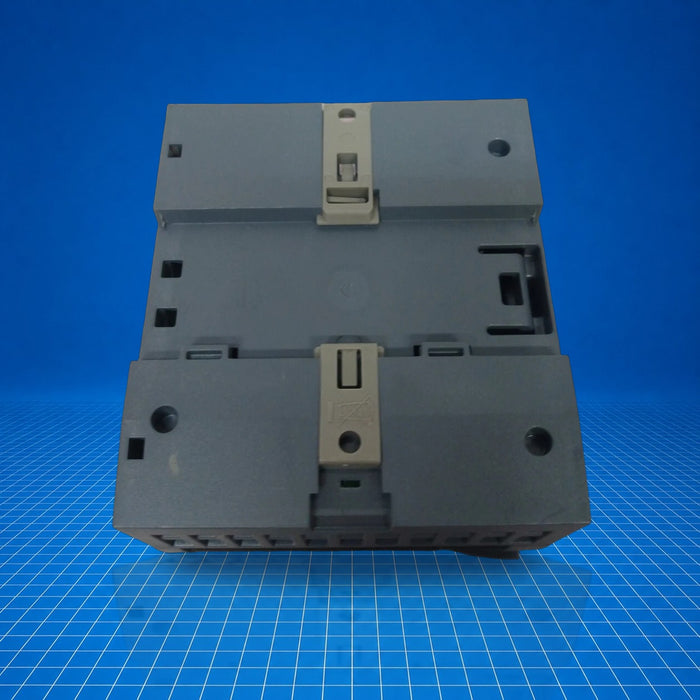

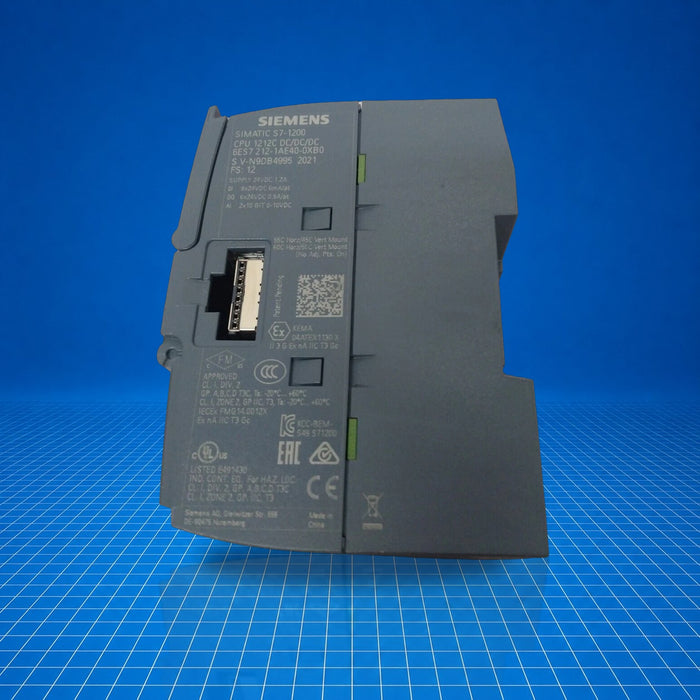

6ES7212-1AE40-0XB0 Siemens
Original price
$593.37
-
Original price
$770.00
Original price
$593.37
$593.37
-
$770.00
Current price
$593.37
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-1200, CPU 1212C (6ES7212-1AE40-0XB0) is a compact central processing unit featuring integrated digital and analog I/O and onboard power supply. The module supports DC power input and delivers integrated I/O handling with program and data memory. It is typically used for small-scale automation, machine control, and standalone logic applications where a compact PLC with onboard I/O and analog interfaces is required. The part number 6ES7212-1AE40-0XB0 identifies this specific DC/DC/DC version with I/O and memory configuration.
Best Suited For
- Standalone machine control with mixed digital and analog processing
- Small-scale process automation with on-board I/O
- Systems requiring compact DIN-rail mounting
- Replacement or retrofit of existing S7-1200 installations
On-board I/O
8 DI, 6 DO, 2 AI
Analog Input Range
0-10 V DC
Program/Data Memory
100 kByte / 2 MByte
Power Supply Range
20.4-28.8 V DC
Technical Specifications
I/O & Electrical
Digital inputs
8 DI, 24 V DC
Digital outputs
6 DO, 24 V DC
Analog inputs
2 AI, 0-10 V DC
Program/data memory
100 kByte work, 2 MByte load
Communication & Power
Supply voltage
DC 20.4-28.8 V
Reverse polarity protection
Yes
Current consumption (rated)
400 mA (CPU only)
Current consumption (max)
1 200 mA (with expansions)
Inrush current (max)
12 A at 28.8 V DC
Physical & Environmental
Weight
0.294 kg
Packaging dimensions
10.10 × 11.00 × 8.50 cm
