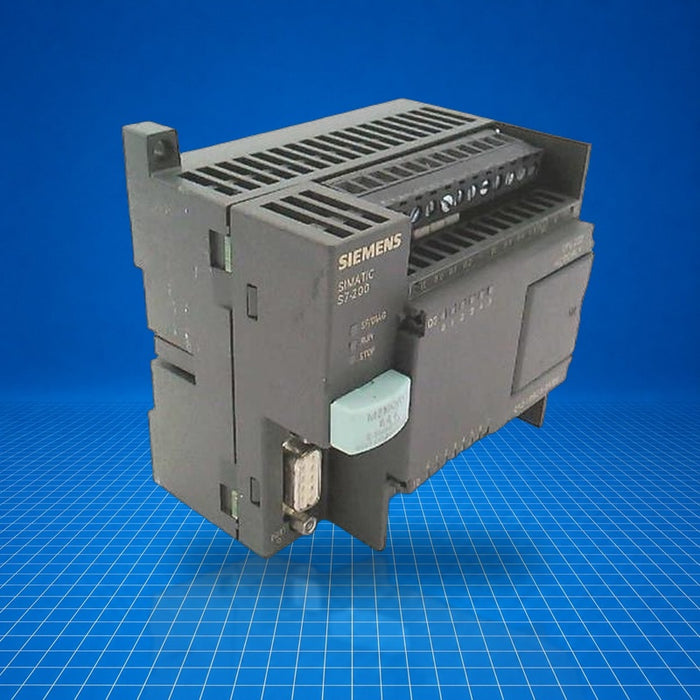

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7212-1BB23-0XB0 Siemens
Original price
$0.00
-
Original price
$360.00
Original price
$360.00
$0.00
-
$360.00
Current price
$360.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7212-1BB23-0XB0 is a SIMATIC S7-200 CPU 222 Compact unit with integrated AC power supply, 8 digital inputs (DC) and 6 relay outputs. It includes 4 KB program memory and 2 KB data memory. The CPU supports MPI/PPI communications and is expandible via PROFIBUS DP. This CPU serves as the control core in small-scale automation systems for tasks such as machine control, simple process sequences, and data collection within S7-200 based environments.
Best Suited For
- Compact machine control with moderate I/O counts
- Legacy S7-200 system upgrades or maintenance
- Applications requiring AC power input
- Simple logic and counting operations
Digital inputs
8 (DC)
Digital outputs
6 (relay)
Program/Data memory
4 KB / 2 KB
Power supply
120/230 V AC
Communication interfaces
MPI / PPI / RS-485
Technical Specifications
I/O & Electrical
Digital input voltage (rated)
24 V DC
Digital input current (typical)
2.5 mA
Digital outputs
6 relay outputs, resistive load max. 2 A, lamp load DC 30 W / AC 200 W
Total output current (up to 40 °C)
6 A
Communication & Power
Supply voltage (AC)
120 V AC or 230 V AC
Input current (at 120 V)
40 to 140 mA
Inrush current (max)
20 A at 264 V
Encoder supply output
24 V, 180 mA, short-circuit protected at 600 mA
Power loss (typical)
7 W
Physical & Environmental
Dimensions (W×H×D)
90 × 80 × 62 mm
Weight (approx.)
310 g
Protection degree
IP20
Ambient temp. (operation)
0 to 55 °C horizontal; to 45 °C vertical
Relative humidity (operation)
5 to 95 % (RH class 2)
Certifications
EU-DeclarationChina RoHSFMBVDNVGLLRNKRMRSCCS
Approvals include EU Declaration of Conformity, China RoHS, FM, and classification society approvals (BV, DNV, GL, LR, NK, RMRS, CCS).
