6ES7215-1AF40-0XB0 Siemens

Name: 6ES7215-1AF40-0XB0 Siemens
Brand: Siemens
SKU: 6ES7215-1AF40-0XB0
Price: 961.65 USD
Availability: InStock

$961.65 - $2,421.00

$961.65

$961.65 - $2,421.00

$961.65

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

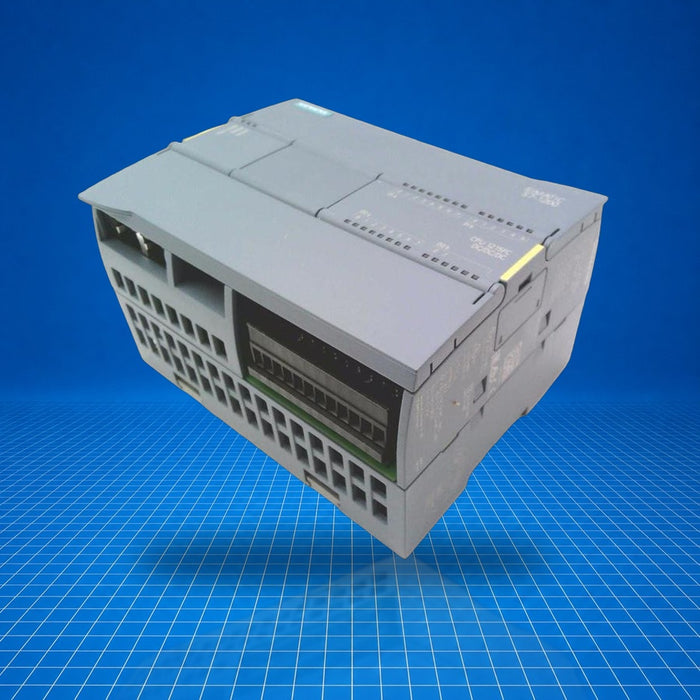

The Siemens 6ES7215-1AF40-0XB0 is a SIMATIC S7-1200F CPU 1215FC compact fail-safe (F) controller with DC/DC/DC power configuration. It integrates a mix of discrete and analog I/O, two PROFINET ports, and onboard memory, suitable for safety-oriented control tasks. Typical applications include safety monitoring in manufacturing lines, machine guarding, and integration into safety control architectures where IEC-compliant safety functions are required. This compact CPU provides central control and safety processing within S7-1200 based systems.

Best Suited For

Safety interlock and guard monitoring
Fail-safe control in small to mid-size automation systems
SIL 3 / PL e functional safety applications
PROFINET-connected compact control cabinets

Digital inputs

14 DI 24 V DC

Digital outputs

10 DO 24 V DC 0.5 A

Analog I/O

2 AI 0-10 V DC; 2 AO 0-20 mA DC

Supply voltage

DC 20.4-28.8 V DC

Technical Specifications

I/O & Electrical

Digital inputs

14 DI 24 V DC

Digital outputs

10 DO 24 V DC, 0.5 A

Analog inputs

2 AI 0-10 V DC

Analog outputs

2 AO 0-20 mA DC

Communication & Power

PROFINET ports

2 (RJ45, 2-port switch, MRP-Client)

Supply voltage (rated)

24 V DC

Supply voltage (permissible range)

20.4-28.8 V DC

Current consumption (rated, CPU)

500 mA

Current consumption (max, with expansions)

1 500 mA

Inrush current, max.

12 A (at 28.8 V DC)

Power loss, typical

12 W

Physical & Environmental

Dimensions (W × H × D)

130 × 100 × 75 mm

Operating temperature, horizontal

0 to +55 °C

Operating temperature, vertical

0 to +45 °C

Installation altitude

up to 5000 m

Weight

0.415 kg

Certifications

SIL 3PL eCEULcULusFMRCMKCMarine

Safety class: SIL 3 per IEC 61508, Performance Level e per EN ISO 13849-1. Approvals: CE-mark, UL, cULus, FM, RCM, KC, Marine approval.
