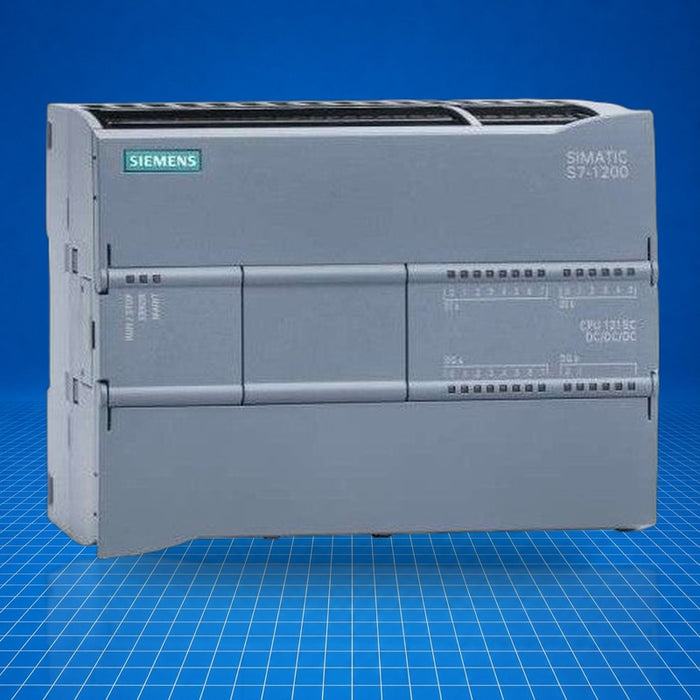

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

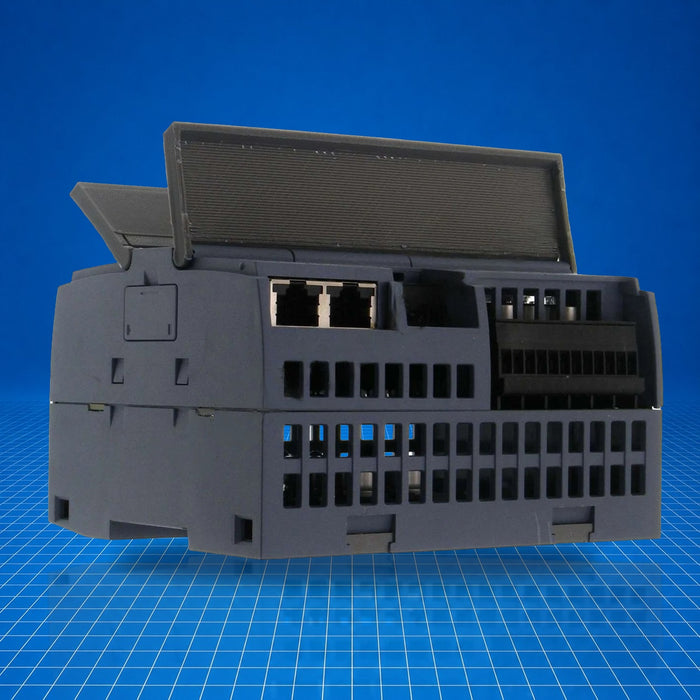

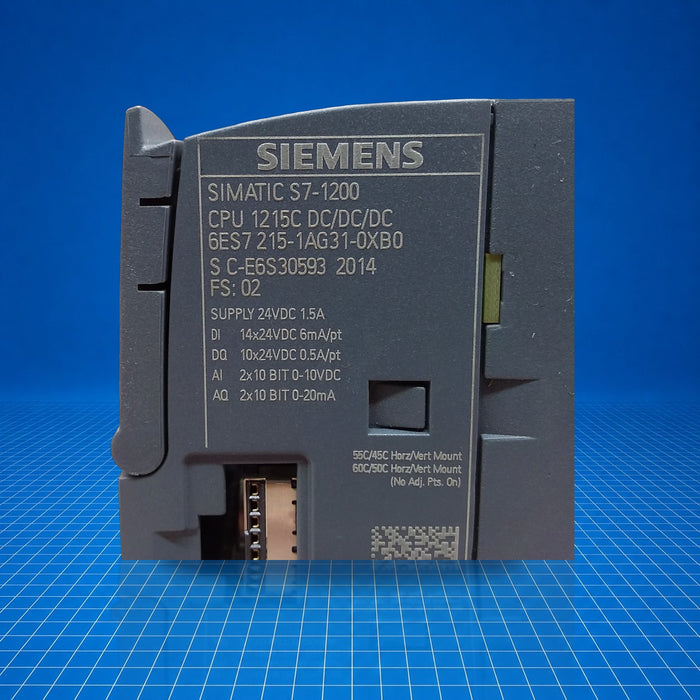

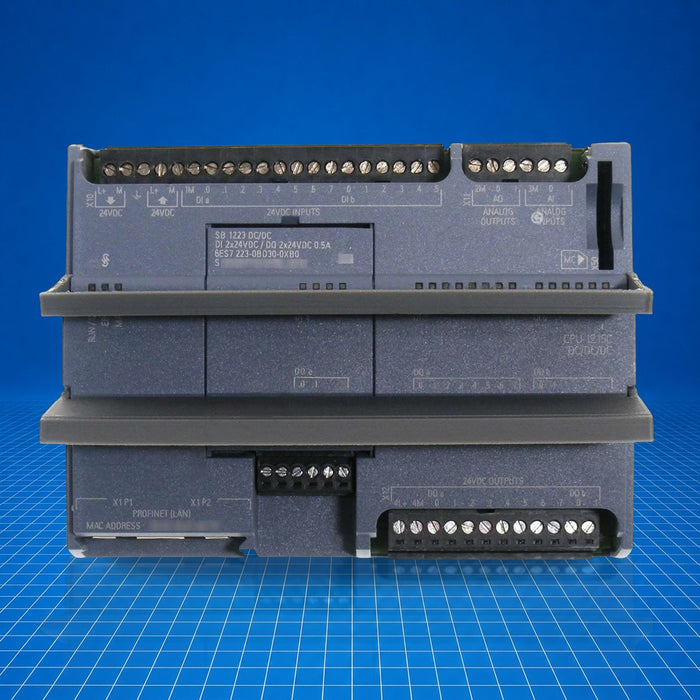

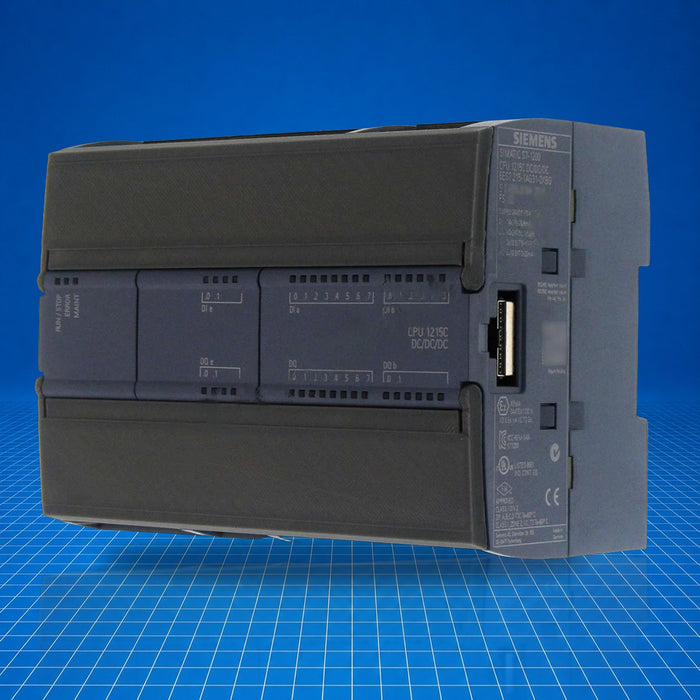

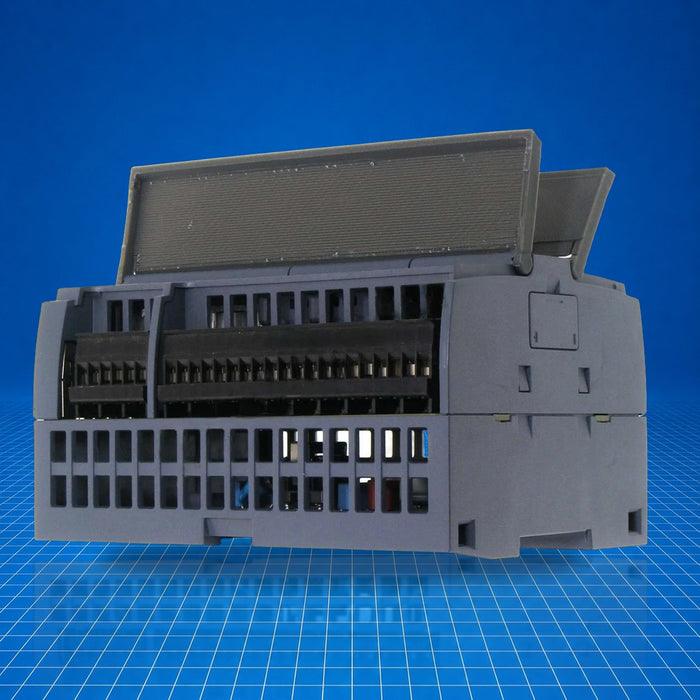

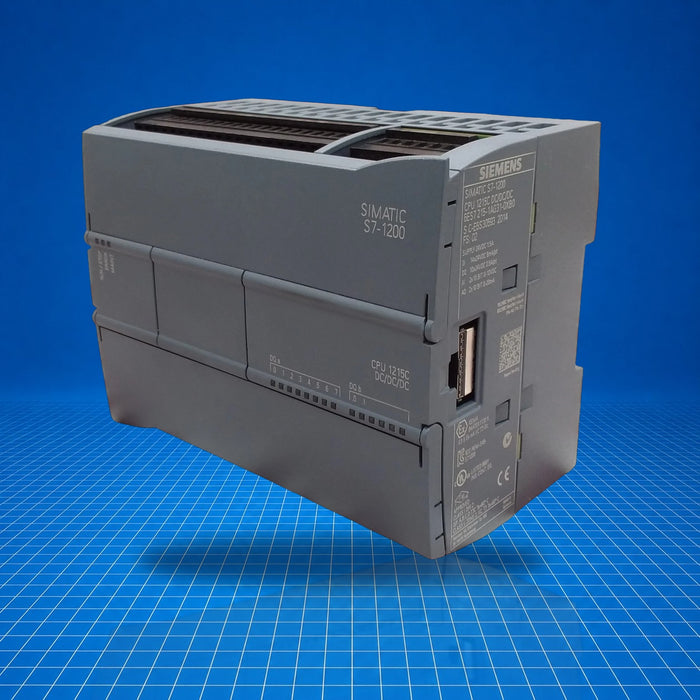

6ES7215-1AG31-0XB0 Siemens
Original price
$0.00
-
Original price
$1,608.23
Original price
$1,608.23
$0.00
-
$1,608.23
Current price
$1,608.23
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6ES7215-1AG31-0XB0 is a SIMATIC S7-1200 series CPU 1215C compact controller module (DC/DC/DC) featuring integrated digital and analog I/O, dual Profinet interfaces, and onboard processing/memory capabilities. Intended for mid-range automation tasks, it serves as the central logic processor in S7-1200 control systems, handling both discrete and analog signals and enabling networked communication. With ample onboard memory and I/O, it is commonly applied in packaging machines, material handling equipment, and other mid-level industrial automation environments. Part number 6ES7215-1AG31-0XB0.
Best Suited For
- Standalone compact PLC applications with mixed signal I/O
- Mid-range machine control (e.g. packaging, conveyors)
- Profinet-based networked automation
- Applications requiring embedded analog inputs/outputs
Integrated I/O
14 DI, 10 DO, 2 AI, 2 AO
Power supply range
DC 20.4-28.8 V
Program/data memory
100 kB work, 4 MB load
Power loss (typ.)
12 W
Communication
2 × PROFINET ports
Technical Specifications
I/O & Electrical
Digital inputs
14 × 24 V DC
Digital outputs
10 × 24 V DC, 0.5 A each
Analog inputs
2 × 0-10 V DC
Analog outputs
2 × 0-20 mA DC
Communication & Power
PROFINET ports
2 × RJ45
Supply voltage
DC 20.4-28.8 V
Current consumption (typ.)
500 mA at 24 V DC
Current consumption (max.)
1500 mA at 24 V DC
Inrush current (max.)
12 A at 28.8 V DC
Power loss (typ.)
12 W
Physical & Environmental
Integrated memory
Work 100 kB; Load 4 MB
Backup memory
Yes, maintenance-free, battery-less
CPU processing (bit op)
0.085 µs/instruction
CPU processing (word op)
1.7 µs/instruction
CPU processing (floating point)
2.5 µs/instruction
