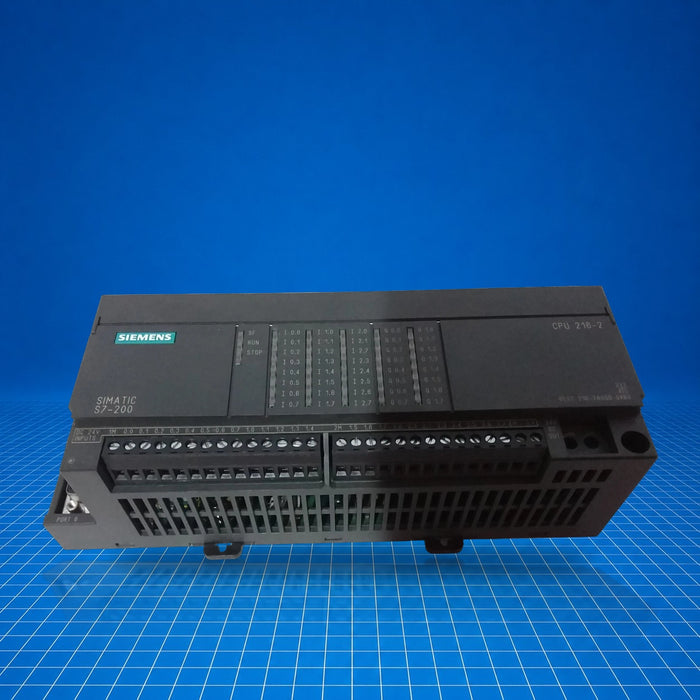

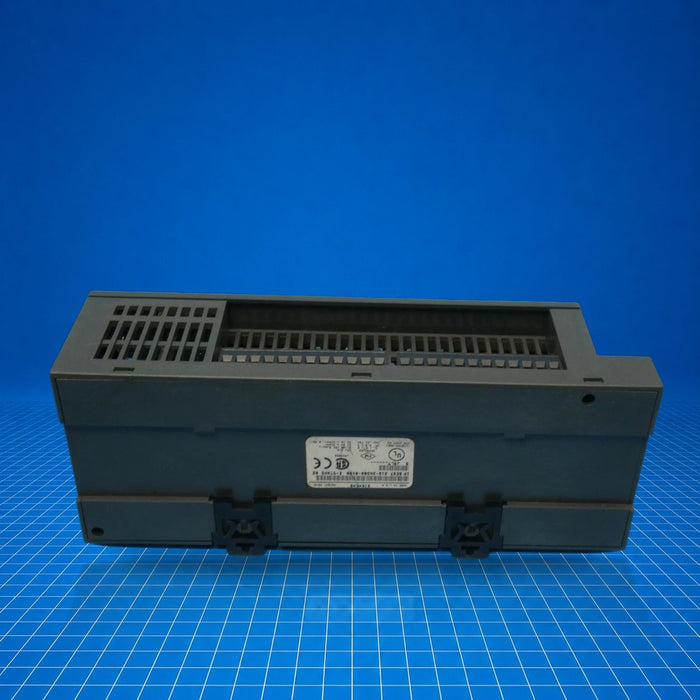

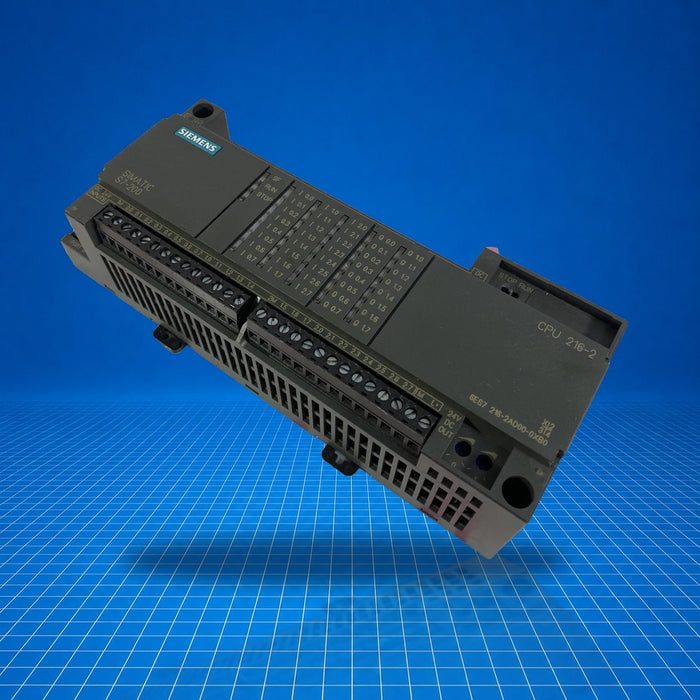

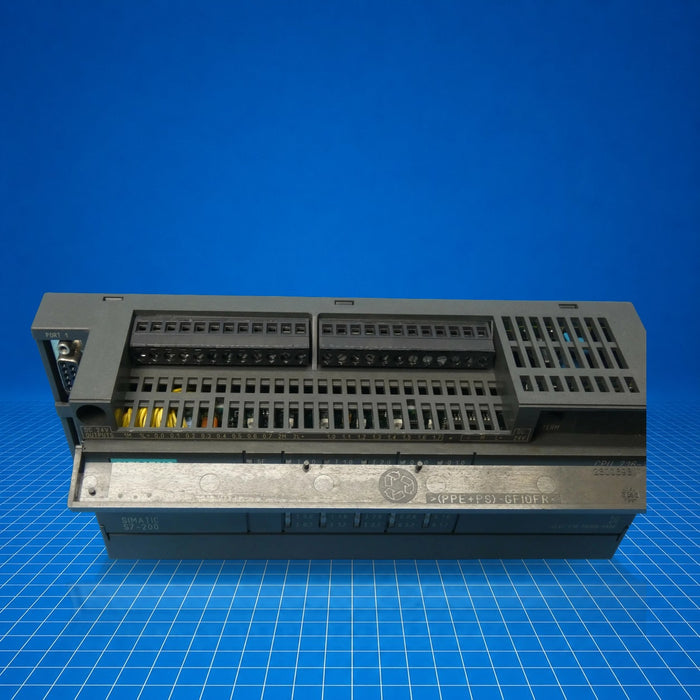

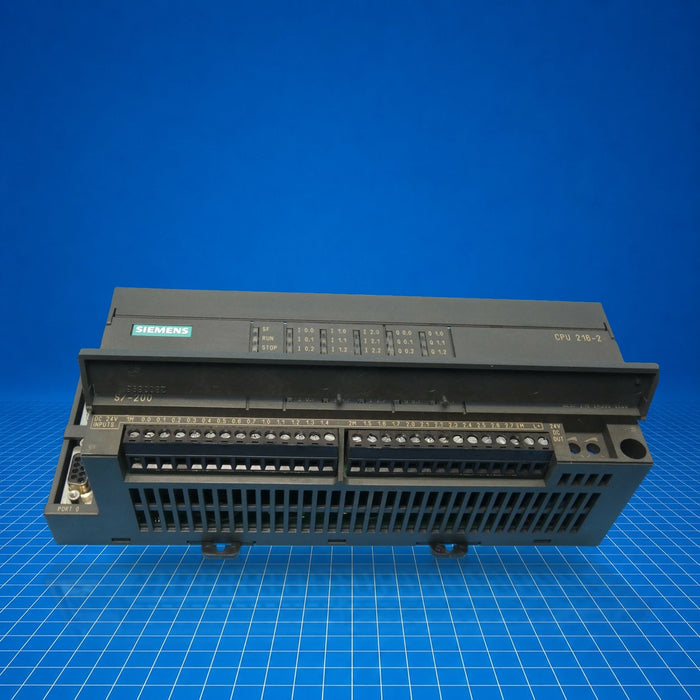

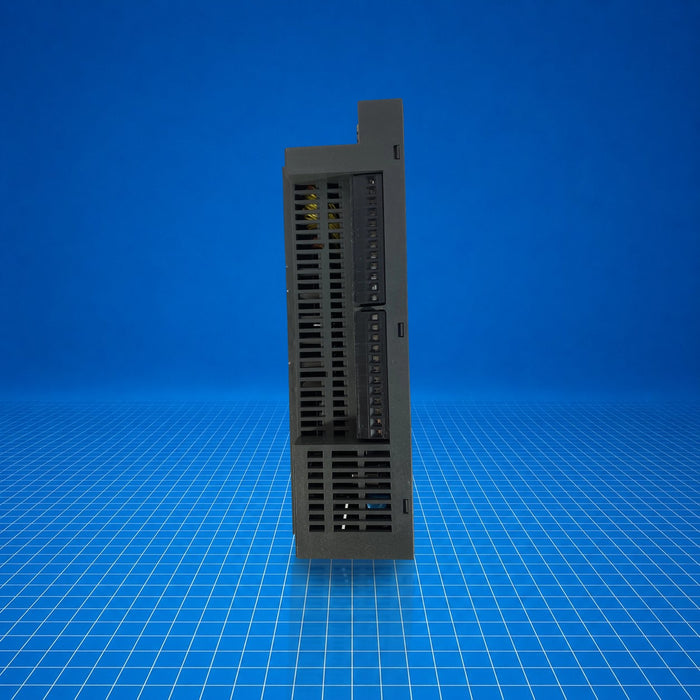

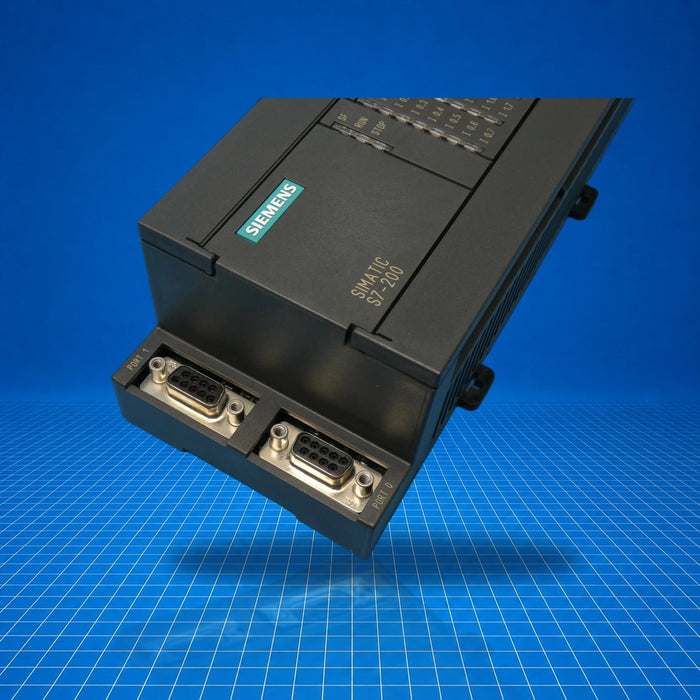

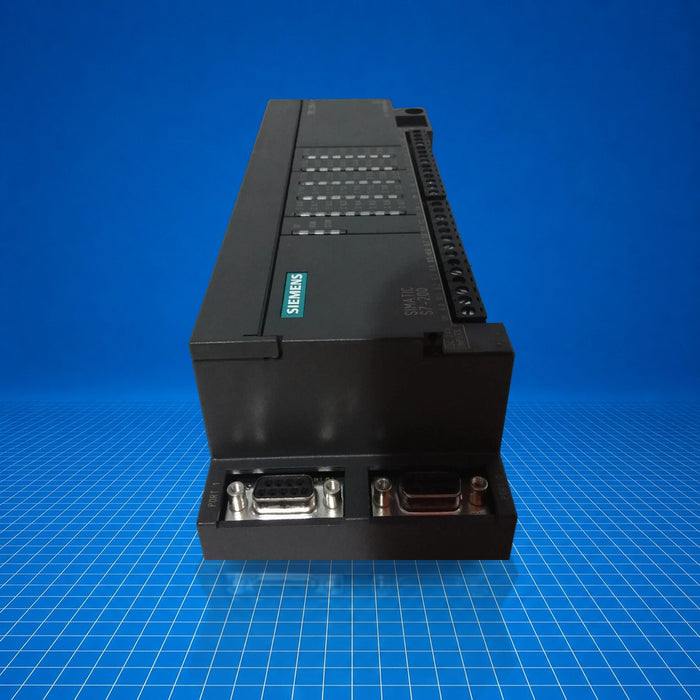

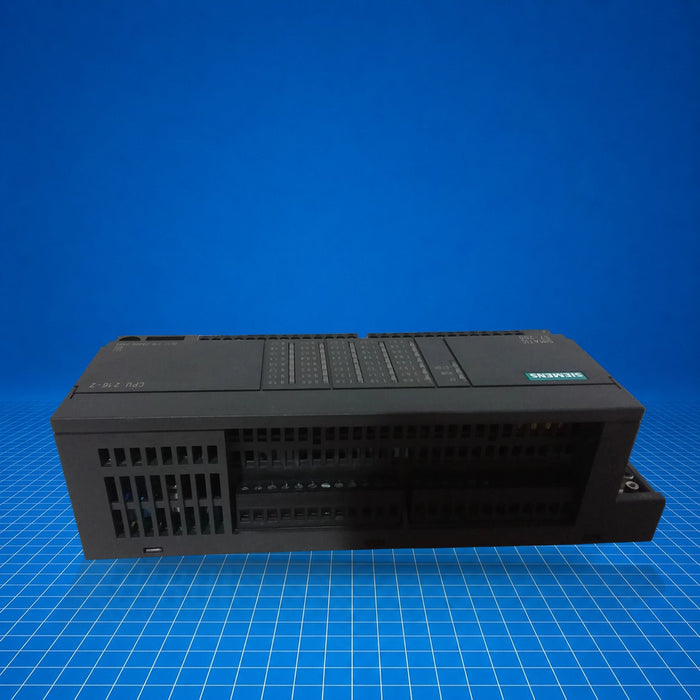

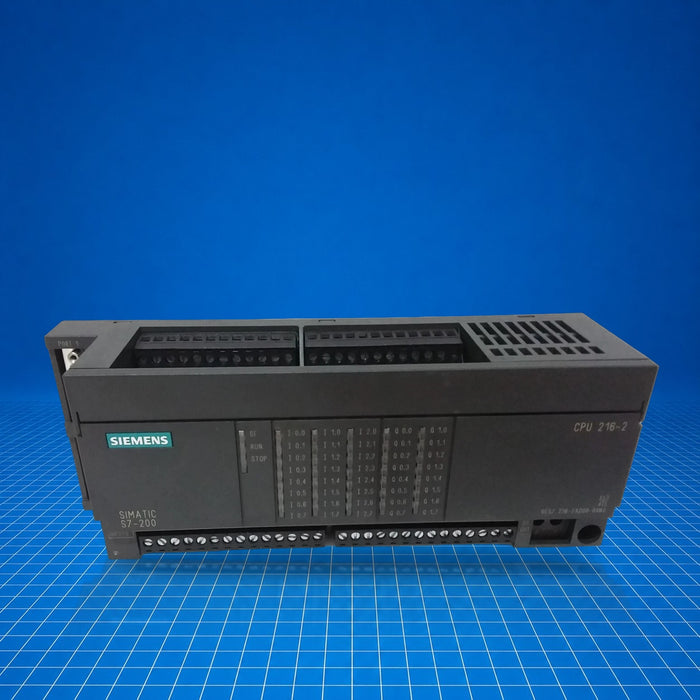

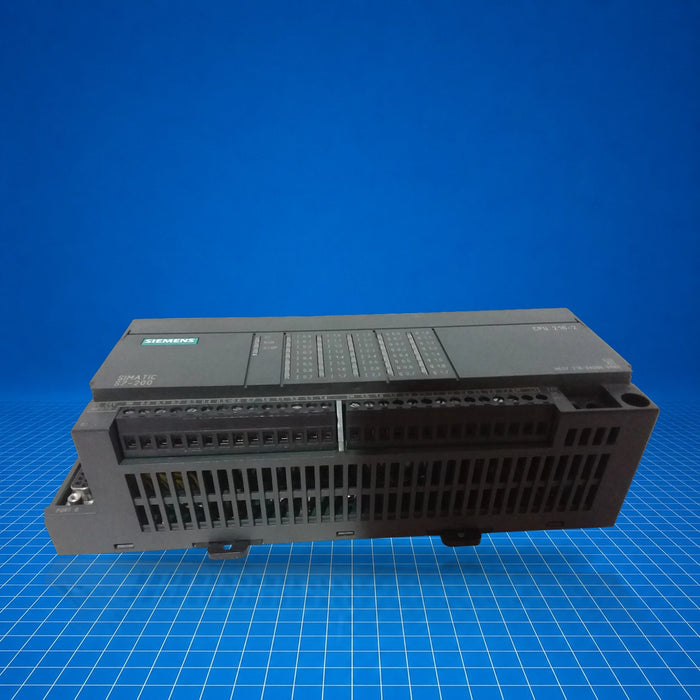

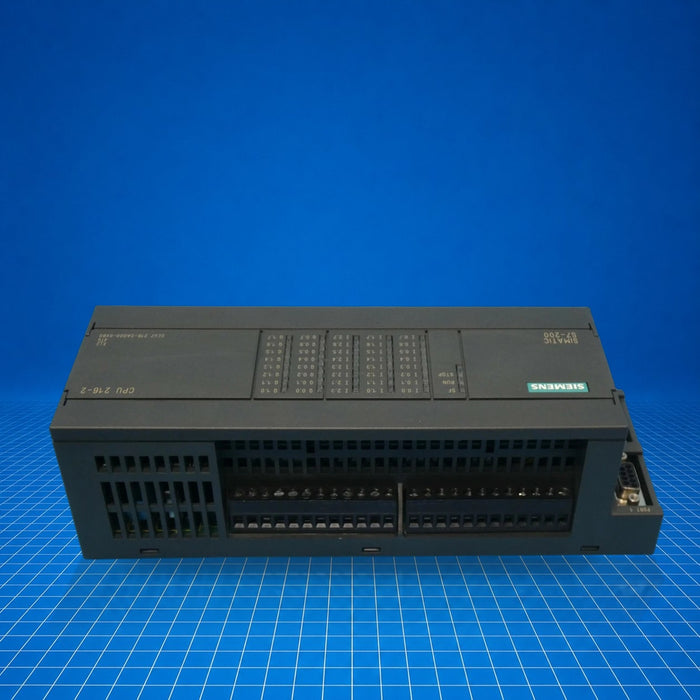

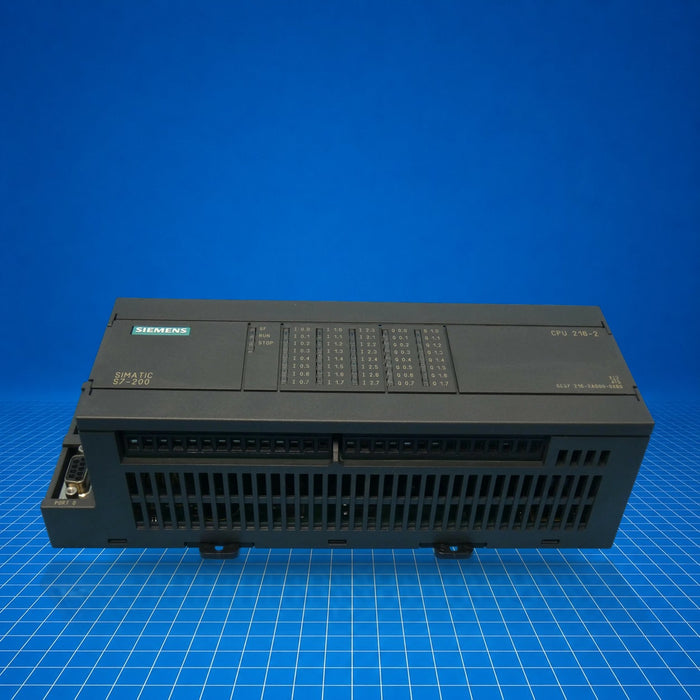

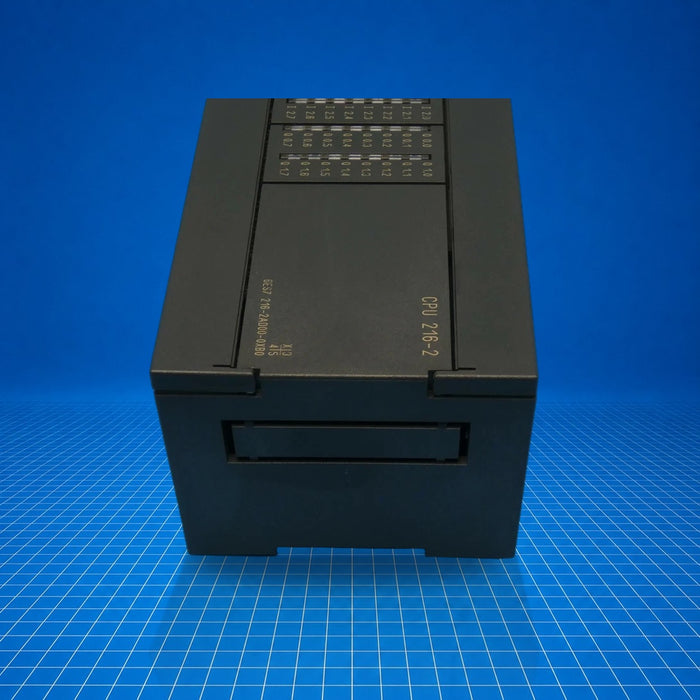

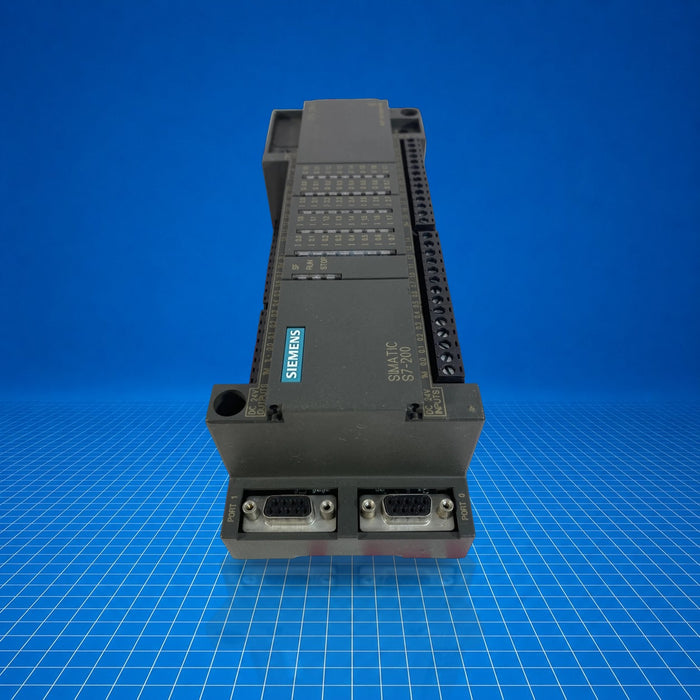

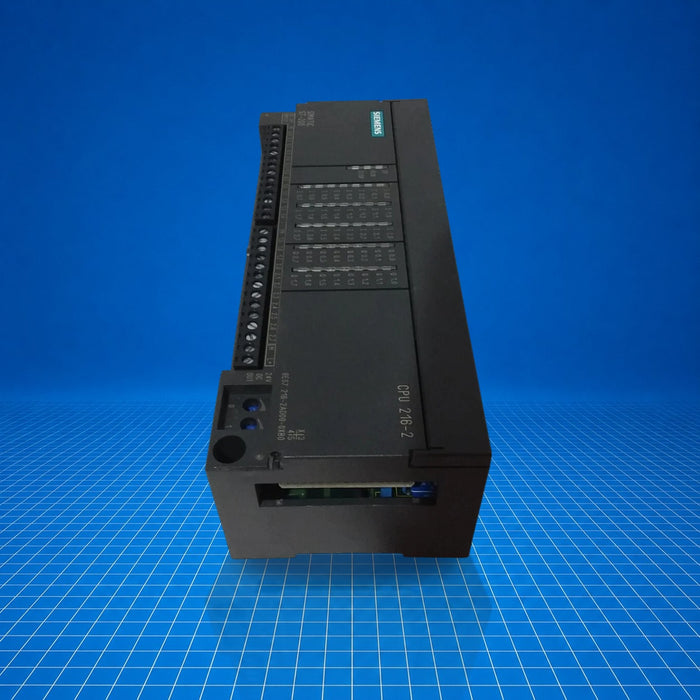

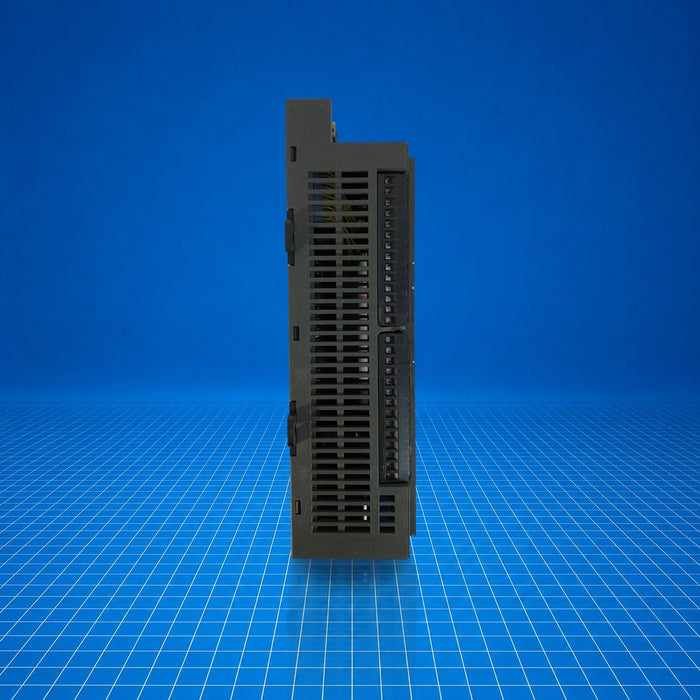

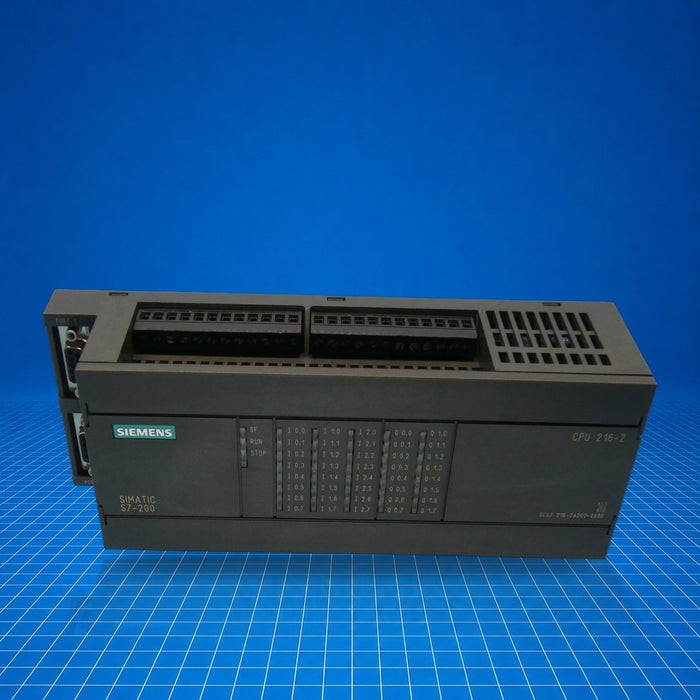

6ES7216-2AD00-0XB0 Siemens
Original price
$0.00
-
Original price
$449.85
Original price
$449.85
$0.00
-
$449.85
Current price
$449.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part 6ES7216-2AD00-0XB0 is a SIMATIC S7-200 series compact CPU intended for small to medium industrial control tasks. It provides integrated digital inputs and outputs, program and data memory, and serial interfaces (MPI and PPI or similar). It typically serves as the central logic controller in machine automation, OEM equipment, or distributed I/O systems. The compact form factor fits panel-mount applications where discrete control and limited I/O count suffices.
Best Suited For
- Small-scale machine logic control
- OEM embedded panel controllers
- Expansion of distributed S7-200 systems
- Budget-constrained or space-limited installations
Digital I/O
24 DI / 16 DO (DC) (based on 2AD23 variant)
Memory (program/data)
16/24 KB program; 10 KB data
Serial Interfaces
MPI and PPI via RS-485 (up to 187.5 kbit/s)
Supply voltage range
24 V DC (20.4 … 28.8 V)
Technical Specifications
I/O & Electrical
Digital inputs
24 DI (sourcing/sinking optionally)
Digital outputs
16 DO (transistor, DC)
Communication & Power
Supply voltage
24 V DC (20.4 … 28.8 V)
Inrush current, max.
10 A at 28.8 V
Expansion-bus 5 V output current
Up to 1 050 mA
Serial interfaces
Integrated RS-485 MPI/PPI, 1.2…115.2 kbps ascii, MPI 19.2-187.5 kbit/s, PPI 9.6-187.5 kbit/s
Power loss, typ.
11 W
Physical & Environmental
Dimensions (W×H×D)
196 × 80 × 62 mm (2AD23 CN variant)
Certifications
CEChina RoHSEACBV (maritime)
EU Declaration of Conformity, China RoHS, EAC, Bureau Veritas maritime approval
