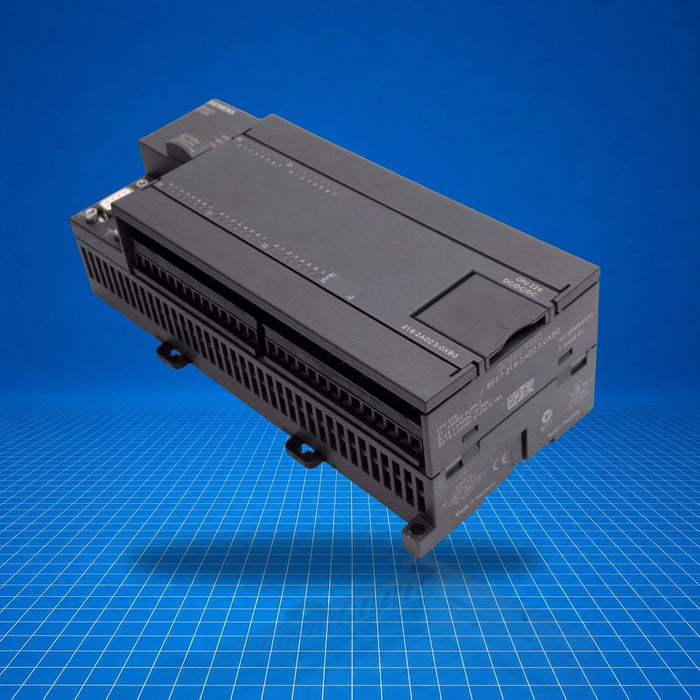

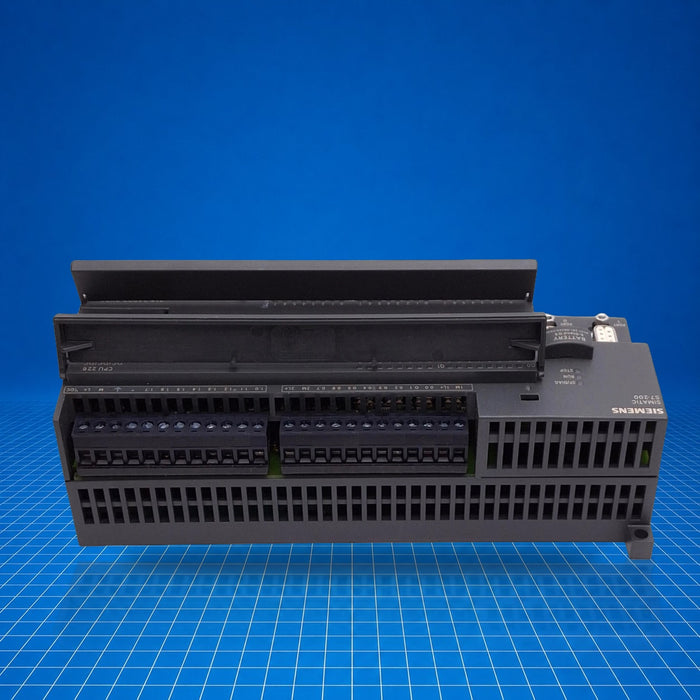

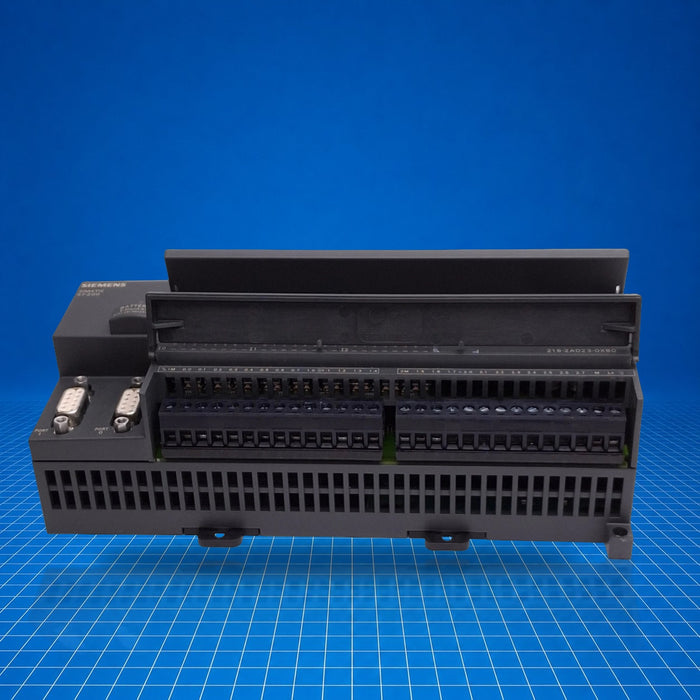

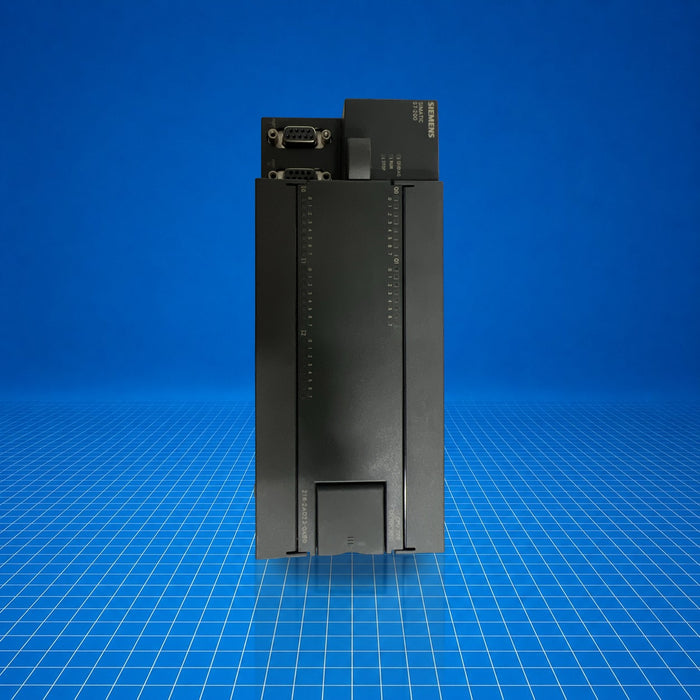

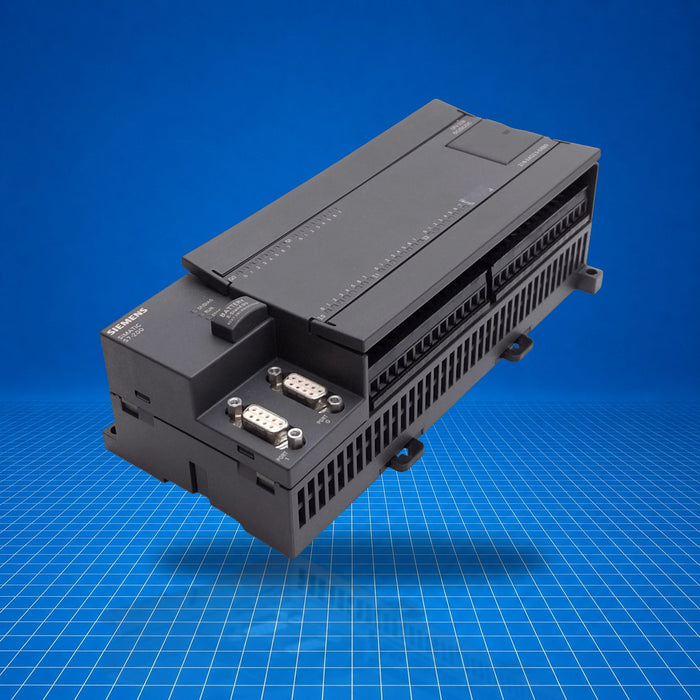

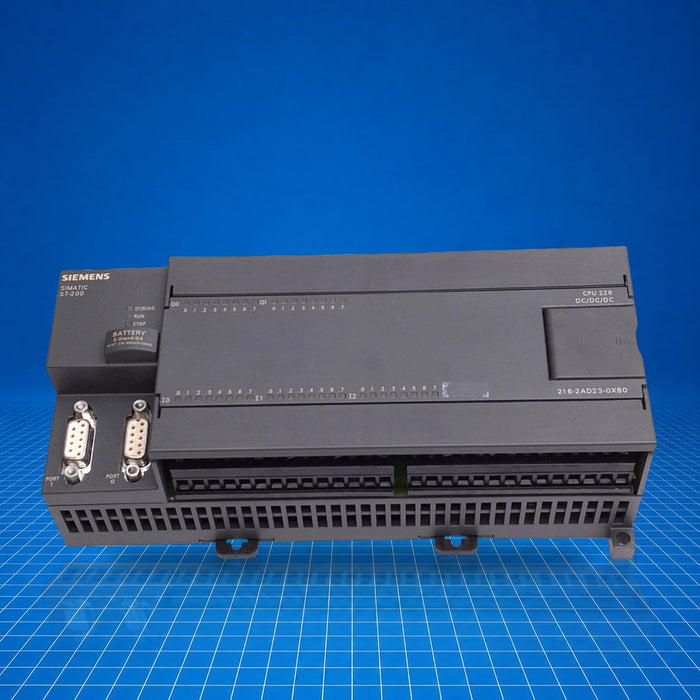

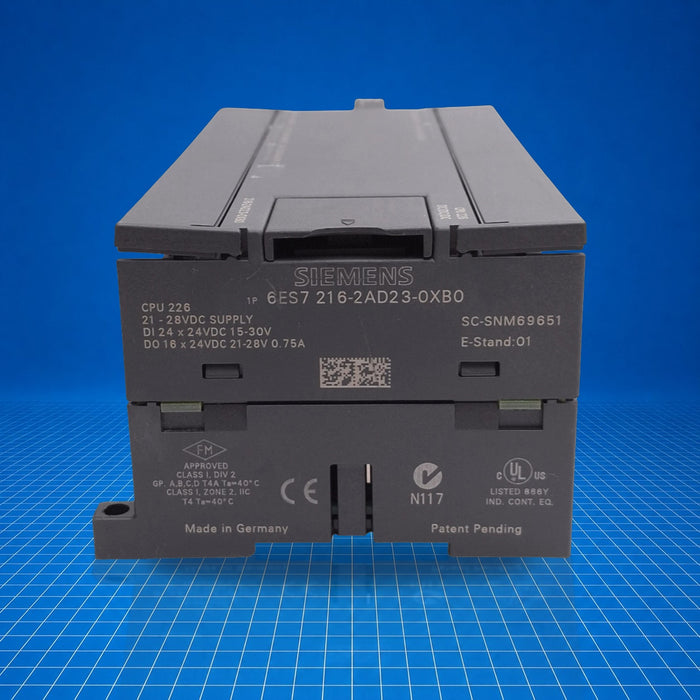

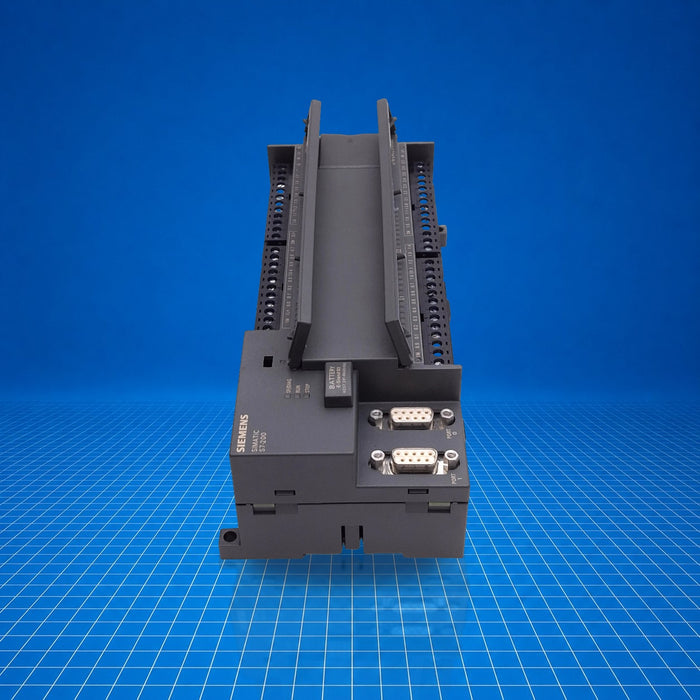

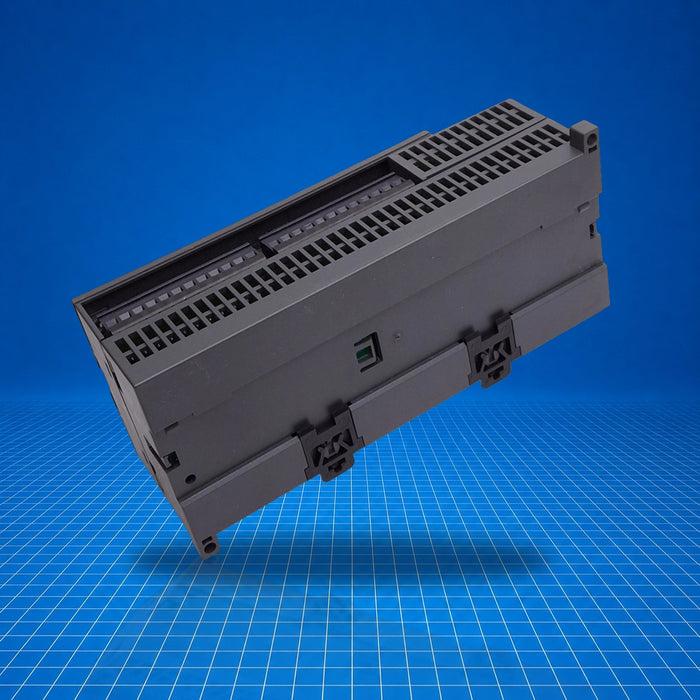

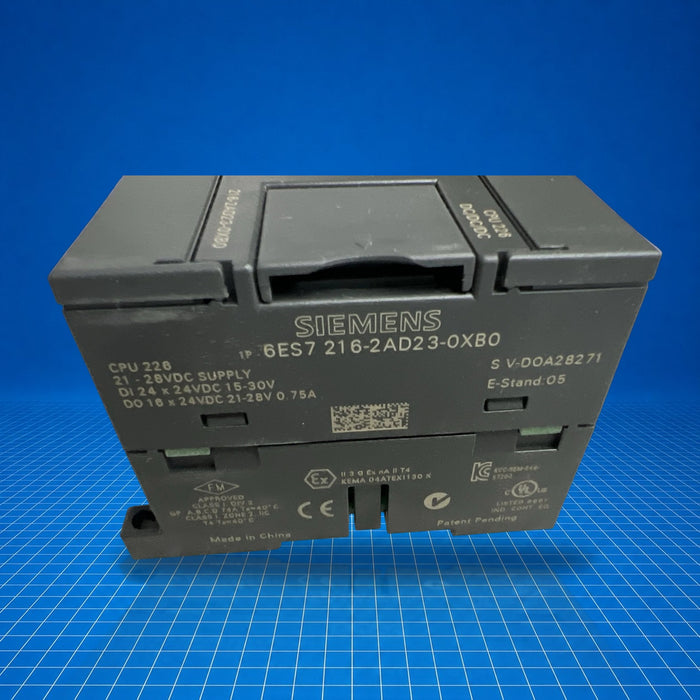

6ES7216-2AD23-0XB0 Siemens

Name: 6ES7216-2AD23-0XB0 Siemens
Brand: Siemens
SKU: 6ES7216-2AD23-0XB0
Price: 313.17 USD
Availability: InStock

$313.17 - $3,011.80

$313.17

$313.17 - $3,011.80

$313.17

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens SIMATIC CPU 226 Compact (6ES7216-2AD23-0XB0) is a discontinued S7-200 series programmable controller featuring built-in 24 digital inputs (DC) and 16 digital transistor outputs (DC), integrated program and data memory, and PPI/MPI interface for programming and communication. It operates on a 24 V DC supply, provides encoder support, and supports up to seven expansion modules. Commonly used in machine control, small automation cells, batch processing, and retrofit applications where a compact, standalone PLC with moderate I/O count is required. 6ES7216-2AD23-0XB0 offers embedded program/data retention and interface flexibility.

Best Suited For

Standalone machine control in compact automation systems
Small-scale packaging or batching equipment
Retrofitting legacy S7-200 installations
Applications requiring integrated encoder counting
On-machine mounting with limited space

Digital I/O

24 DI / 16 DO (transistor)

Program / Data Memory

24 kB prog. / 10 kB data

Power loss (typ.)

11 W

Supply voltage

24 V DC (20.4-28.8 V DC)

Expansion slots

Up to 7 modules

Technical Specifications

I/O & Electrical

Digital inputs

24 inputs, 24 V DC

Digital outputs

16 transistor outputs, 0.75 A max each

Total output current

6 A up to 40 °C

Encoder supply

24 V DC, 400 mA max, short-circuit protected

Input current (signal "1")

2.5 mA (typ.)

Communication & Power

Supply voltage (rated)

24 V DC

Supply permissible range

20.4-28.8 V DC

Inrush current

10 A at 28.8 V

Power loss (typ.)

11 W

Memory (program/data)

24 kB / 10 kB

Backup memory

EEPROM plus high-performance capacitor, optional battery backup

Communication interface

PPI / MPI (integrated RS-485)

Physical & Environmental

Dimensions (W x H x D)

196 mm × 80 mm × 62 mm

Weight

550 g

Degree of protection

IP20

Operating temperature

0-55 °C horizontal, 0-45 °C vertical

Relative humidity

5-95 %

Certifications

CEChina RoHSEACATEXFMBVDNVGLLRNKRMRSCCSEU-Declaration of Conformity
