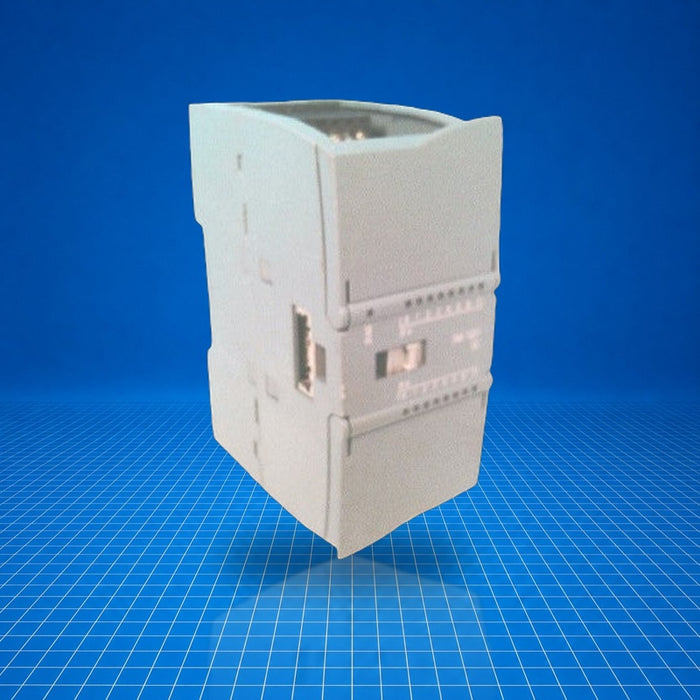

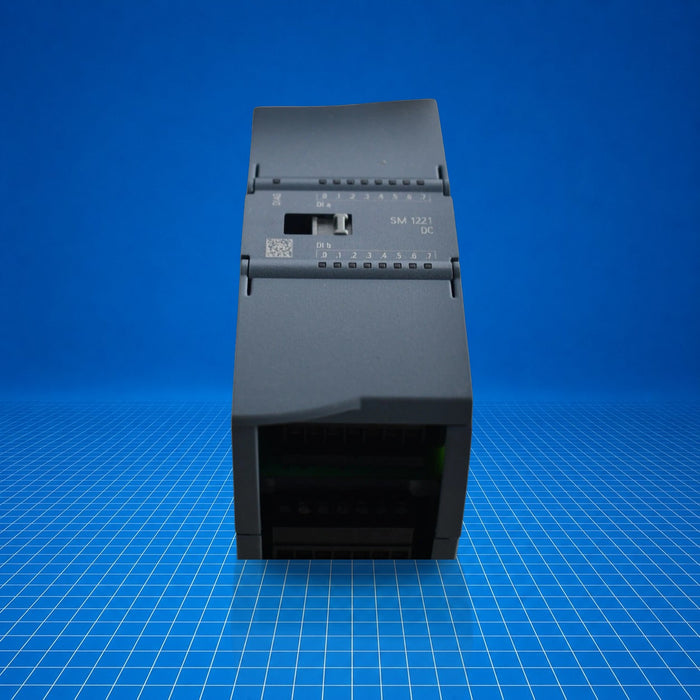

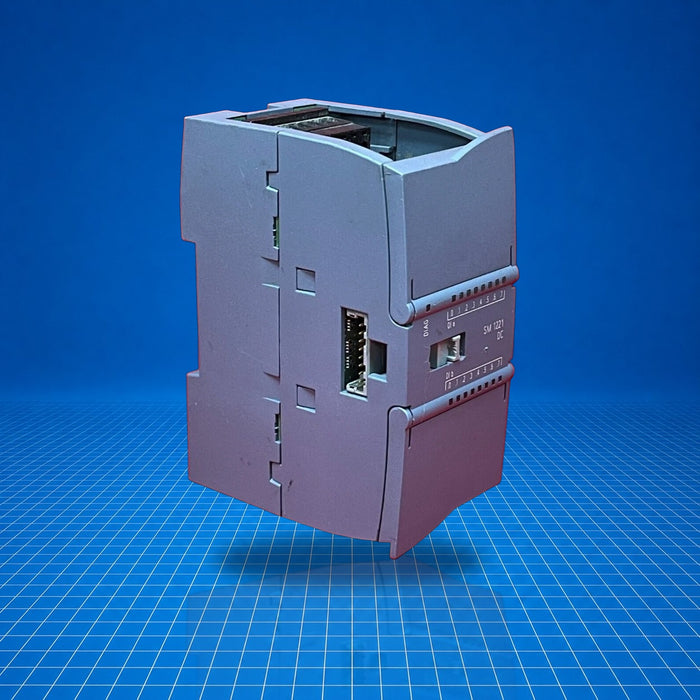

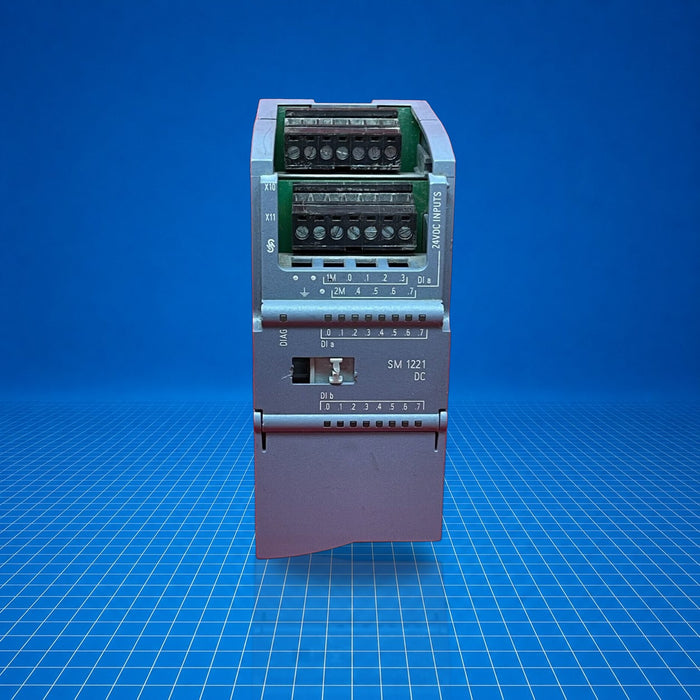

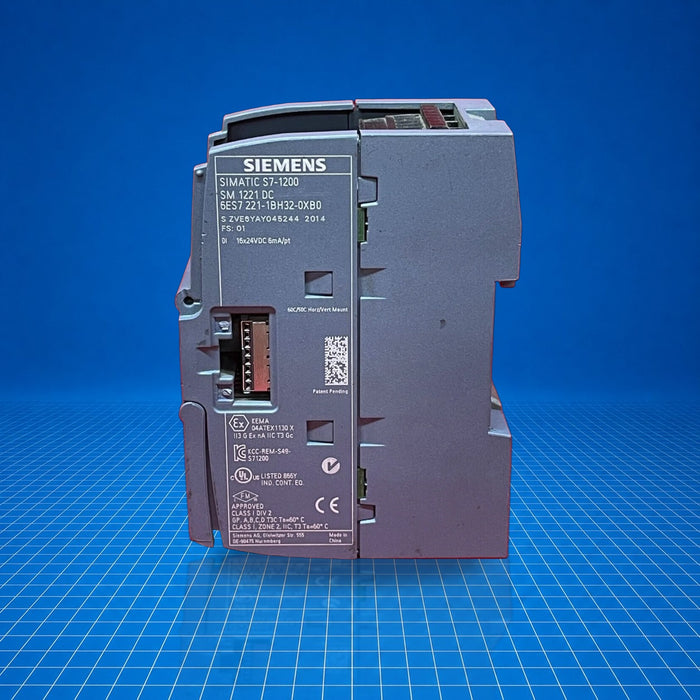

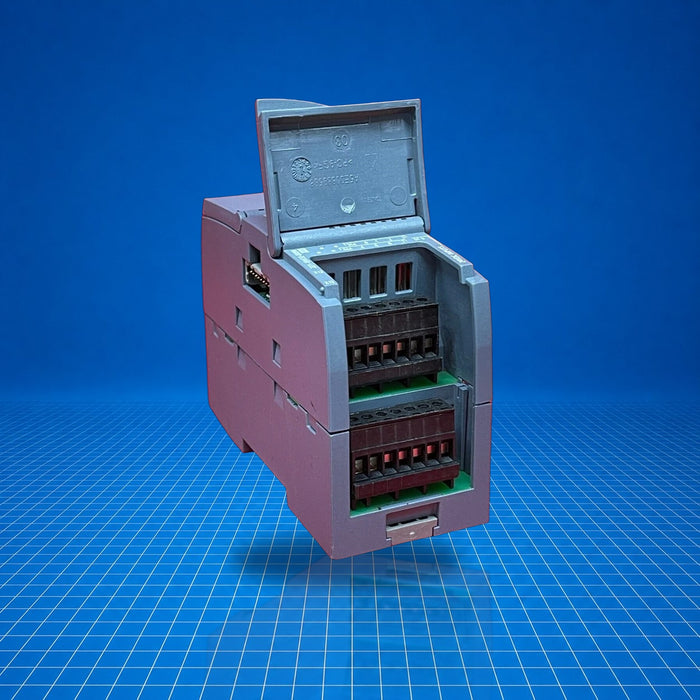

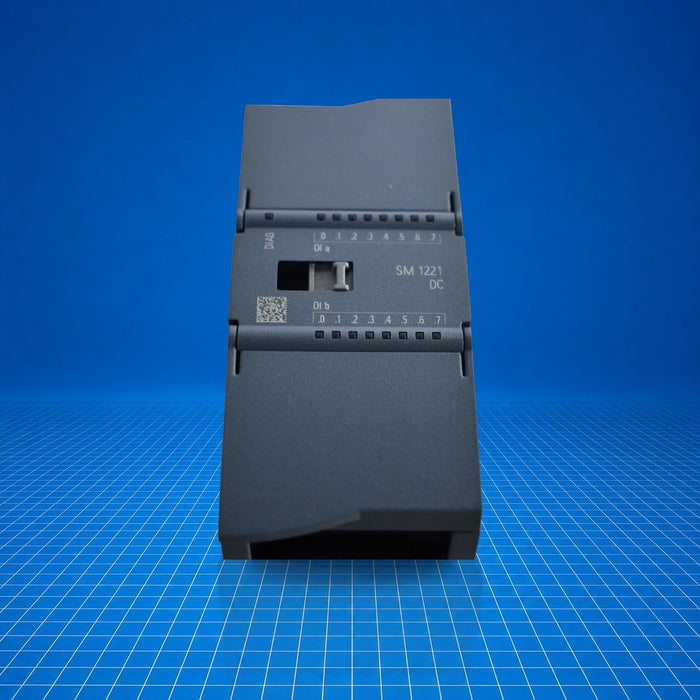

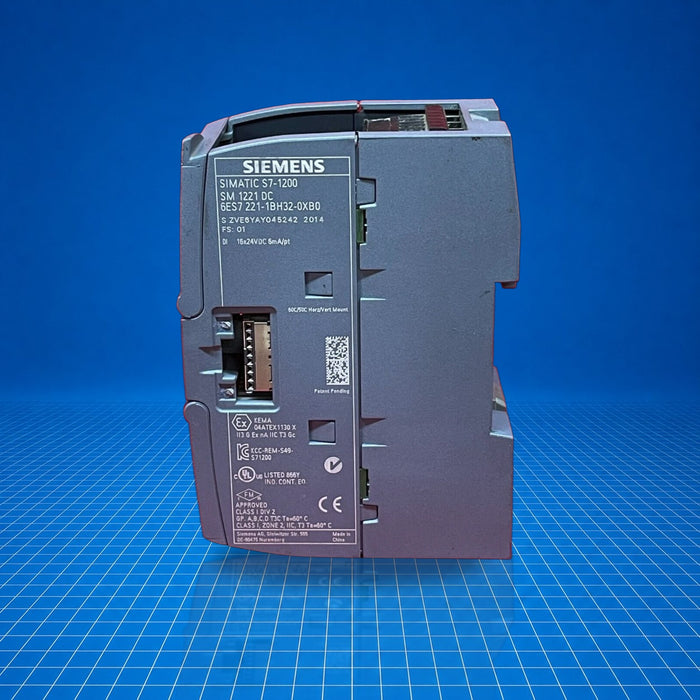

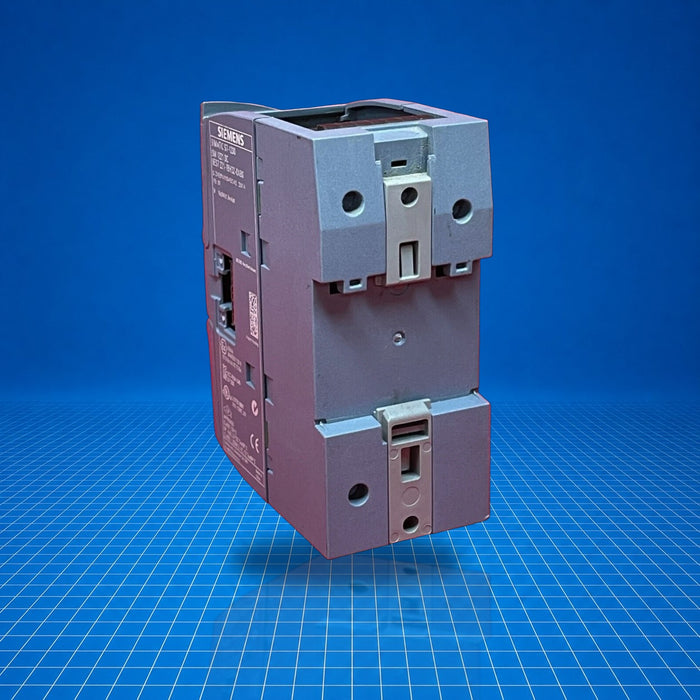

6ES7221-1BH32-0XB0 Siemens
Original price
$350.37
-
Original price
$525.00
Original price
$350.37
$350.37
-
$525.00
Current price
$350.37
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7221-1BH32-0XB0 is a SIMATIC S7-1200 SM 1221 digital input module by Siemens, providing 16 standard digital inputs at 24 V DC with sink/source configuration. It integrates into the S7-1200 modular controller platform, enabling expansion of input channels for machine and process automation systems. In control architectures, it serves as a remote I/O extension, typically deployed in manufacturing lines, small machine control, packaging systems, and OEM equipment where additional discrete signal inputs are required. 6ES7221-1BH32-0XB0 supports interrupt-capable inputs with configurable input delay parameters.
Best Suited For
- SM 1221 I/O extension on S7-1200 controllers
- Discrete 24 V DC sensor interface
- Applications requiring interrupt-capable inputs
- Compact modular control systems
Digital inputs
16
Supply voltage range
20.4 … 28.8 V DC
Power loss (typ.)
2.5 W
Input delay parameterizable
0.2-12.8 ms
Ambient temp. (operating)
-20 °C … 60 °C
Technical Specifications
I/O & Electrical
Digital inputs (number)
16
Input voltage rated
24 V DC
Input voltage range
20.4 … 28.8 V DC
Input current "0" (max)
1 mA
Input current "1" (min)
2.5 mA
Input current "1" (typ)
4 mA
Communication & Power
Power loss (typ.)
2.5 W
Backplane bus current (5 V DC)
130 mA
Input delay parameterizable
0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, 12.8 ms
Physical & Environmental
Operating ambient temperature
-20 °C … 60 °C
Storage temperature
-40 °C … 70 °C
Dimensions (W×H×D)
45 mm × 100 mm × 75 mm
Weight
0.190 kg
Degree of protection
IP20
Certifications
CECSA (cULus)FMRCMKCMarine approval
