6ES7223-1PL30-0XB0 Siemens
Original price
$672.49
-
Original price
$893.75
Original price
$672.49
$672.49
-
$893.75
Current price
$672.49
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

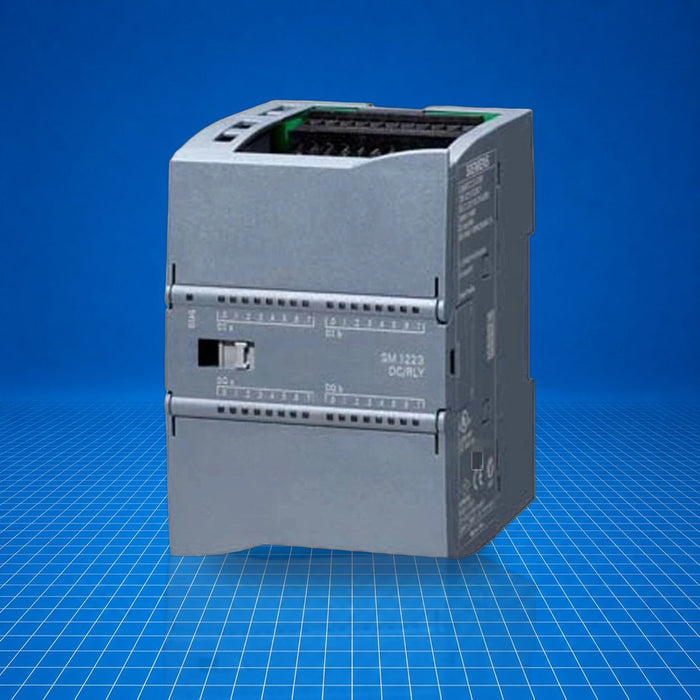

The Siemens SIMATIC S7-1200 SM 1223 signal module, order number 6ES7 223-1PL30-0XB0, is a digital I/O expansion module for S7-1200 PLC systems. It provides 16 discrete inputs and 16 relay outputs at 24 V DC, serving to expand digital interfacing capabilities. It integrates via the SIMATIC backplane bus and is used in industrial control systems for tasks such as discrete control, pilot valve actuation, and status indication within machinery, material handling, and general automation applications. 6ES7223-1PL30-0XB0 conforms to the SM 1223 module family design extended for S7-1200 platforms.
Best Suited For
- Discrete signal expansion for S7-1200 PLCs
- Applications requiring isolation via relay outputs
- Switching loads up to 2 A per output
- General factory automation I/O extension
Digital inputs
16 × 24 V DC
Digital outputs (relay)
16 × relay, 2 A
Supply voltage
24 V DC (20.4 - 28.8 V DC)
Backplane bus current (5 V DC)
180 mA
Typical power loss
10 W
Technical Specifications
I/O & Electrical
Digital inputs
16 (24 V DC)
Digital outputs
16 relay outputs, 2 A each
Communication & Power
Supply voltage (DC)
24 V DC
Permissible supply voltage range
20.4 - 28.8 V DC
Backplane bus current (5 V)
180 mA
Power loss (typical)
10 W
