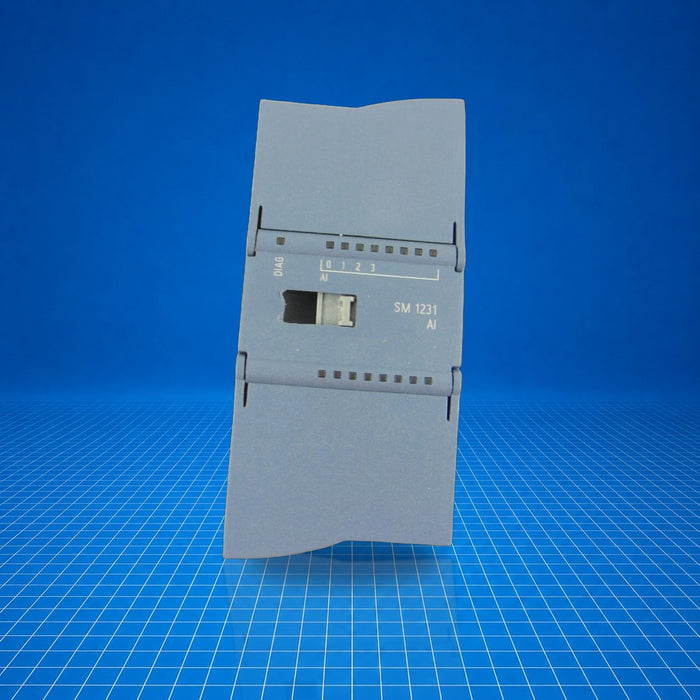

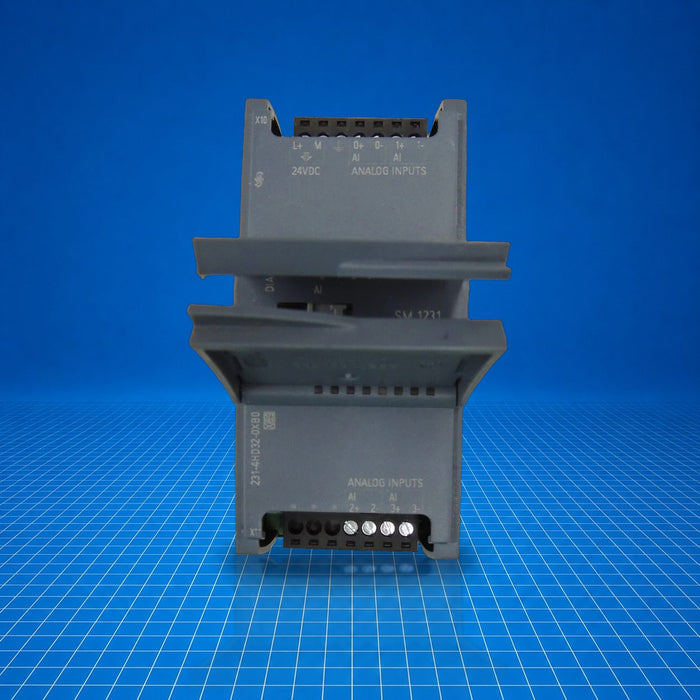

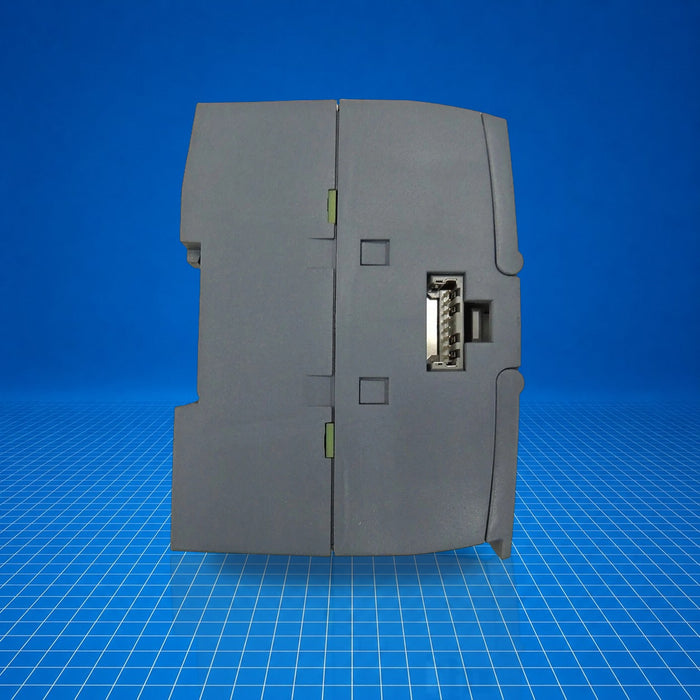

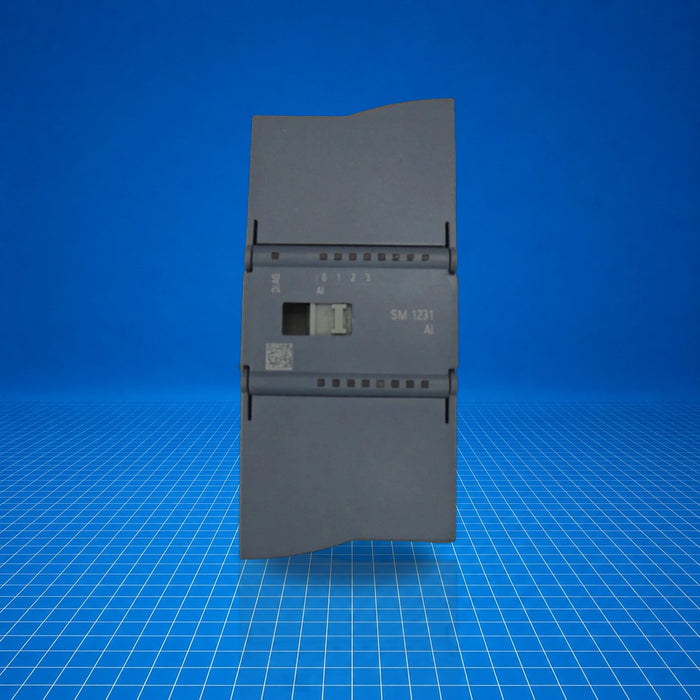

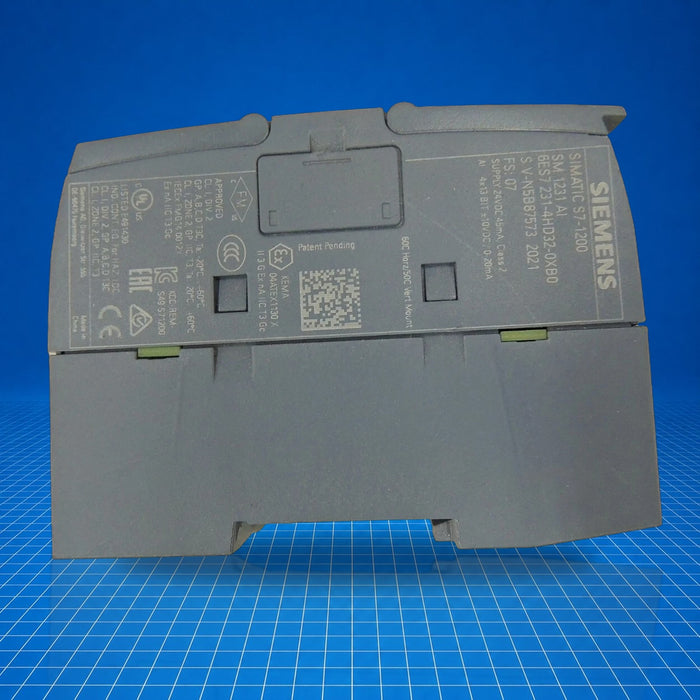

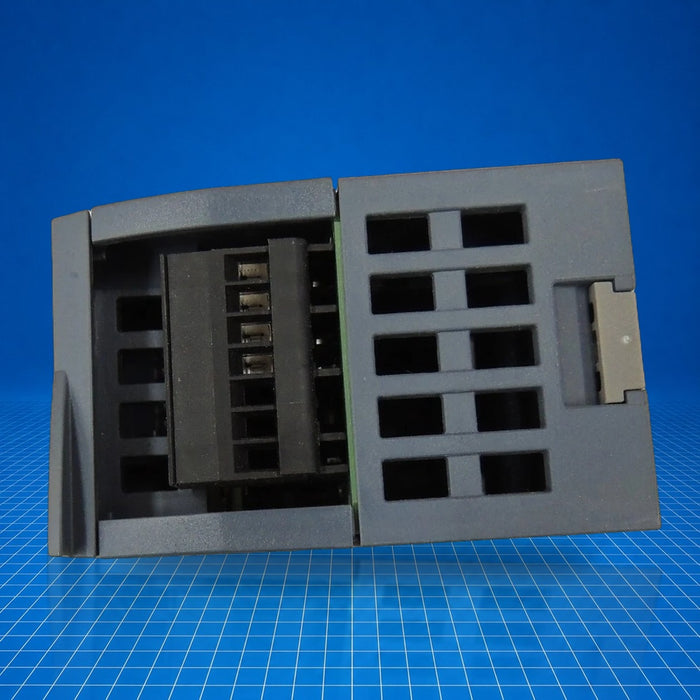

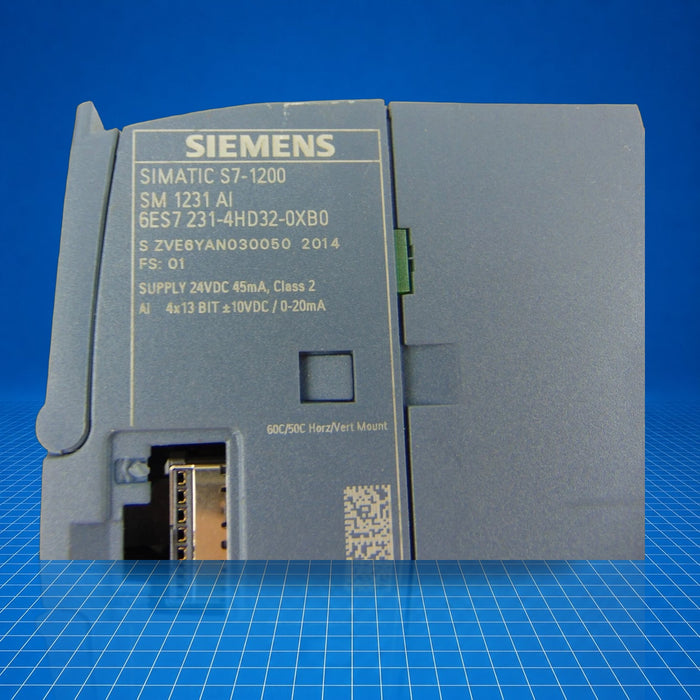

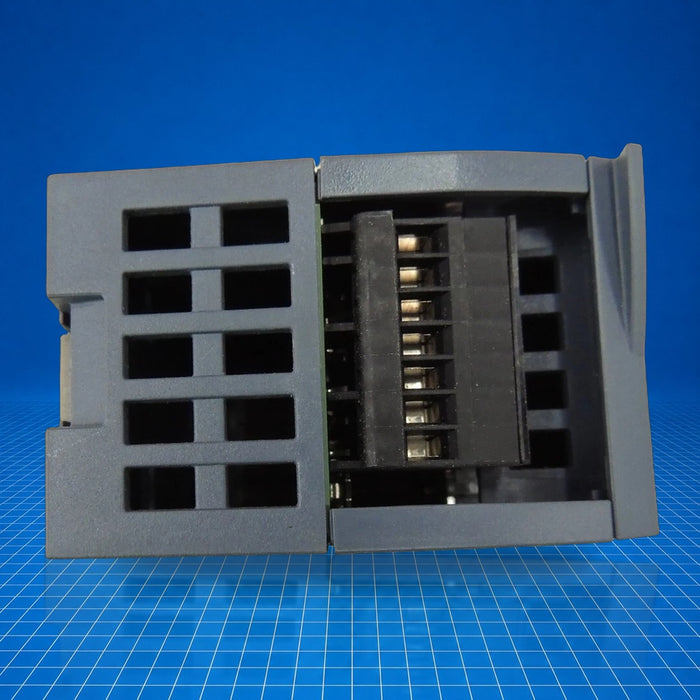

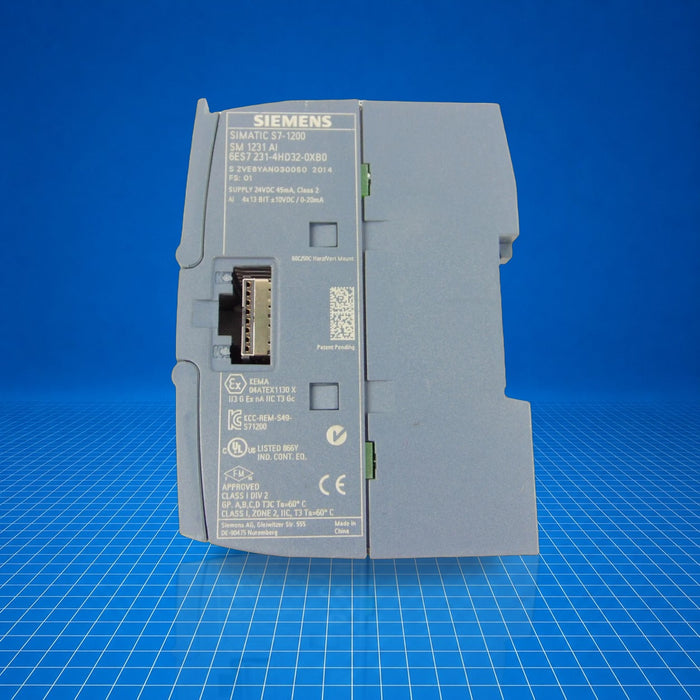

6ES7231-4HD32-0XB0 Siemens
Original price
$359.85
-
Original price
$600.00
Original price
$359.85
$359.85
-
$600.00
Current price
$359.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

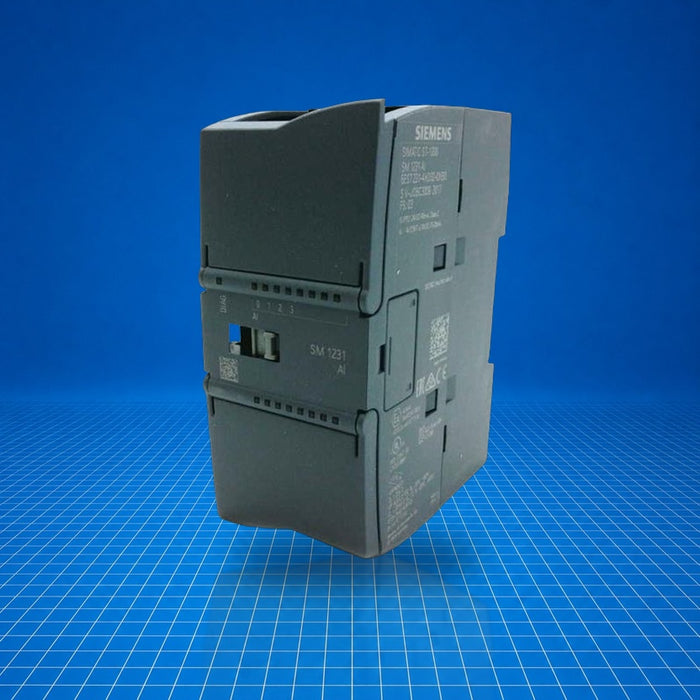

The Siemens 6ES7231-4HD32-0XB0 is an SM 1231 analog input module for the SIMATIC S7-1200 series, providing four differential analog input channels with ±10 V, ±5 V, ±2.5 V voltage ranges and 0-20 mA or 4-20 mA current ranges. It interfaces with S7-1200 controllers via the backplane bus, delivering 12-bit plus sign resolution (13-bit ADC) per channel. It is typically used to acquire analog process signals such as sensor outputs or industrial transducers in mid-level control systems.
Best Suited For
- Acquiring differential analog signals in S7-1200 systems
- Industrial process monitoring (e.g. temperature, pressure, flow via transducers)
- Migration or expansion of existing S7-1200 installations
- Compact control panels requiring analog measurement
Analog channels
4 differential
Input ranges
±10 V, ±5 V, ±2.5 V; 0-20 mA, 4-20 mA
Resolution
12 bit + sign (13-bit ADC)
Supply voltage
24 V DC from backplane
Typical power consumption
45 mA (5 V DC), 1.5 W
Technical Specifications
I/O & Electrical
Number of analog inputs
4 differential
Input ranges (voltage)
±10 V, ±5 V, ±2.5 V
Input ranges (current)
0-20 mA, 4-20 mA
Input resistance (voltage ranges)
≥ 9 MΩ
Input resistance (current ranges)
≈ 280 Ω
Maximum permissible voltage (destruction limit)
35 V
Maximum permissible current (destruction limit)
40 mA
Resolution
12 bit + sign
Cycle time (all channels max)
625 µs
Communication & Power
Supply voltage (backplane)
24 V DC
Current consumption (typical)
45 mA
Power loss (typical)
1.5 W
Physical & Environmental
Width
45 mm
Height
100 mm
Depth
75 mm
Weight (approx.)
180 g
Ambient temperature (operation)
-20 °C to 60 °C
Enclosure material (front)
Plastic
