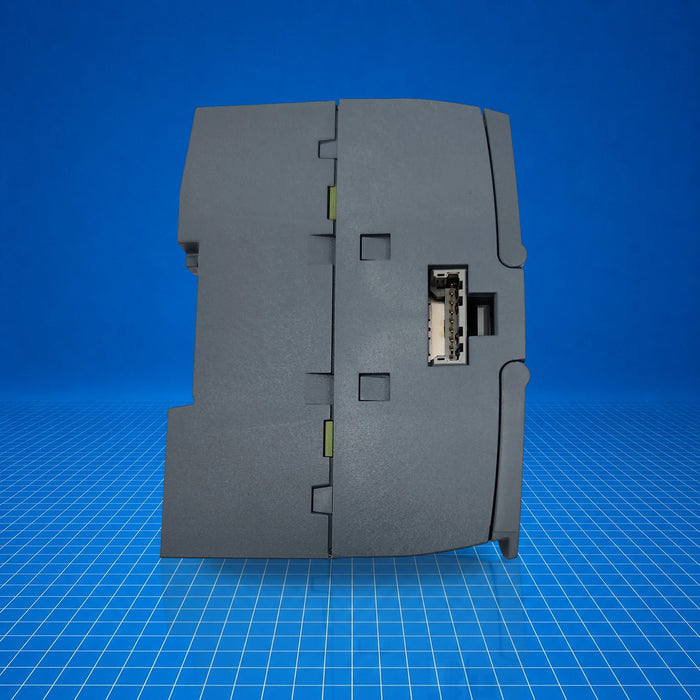

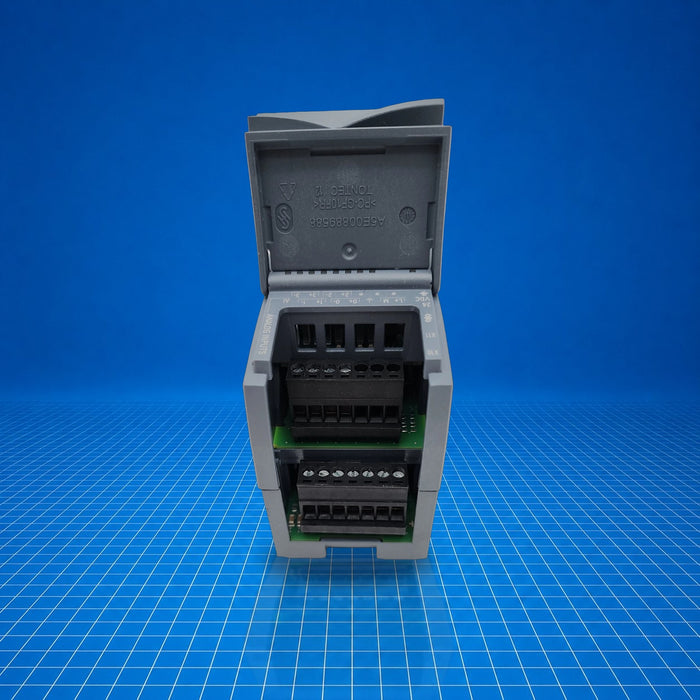

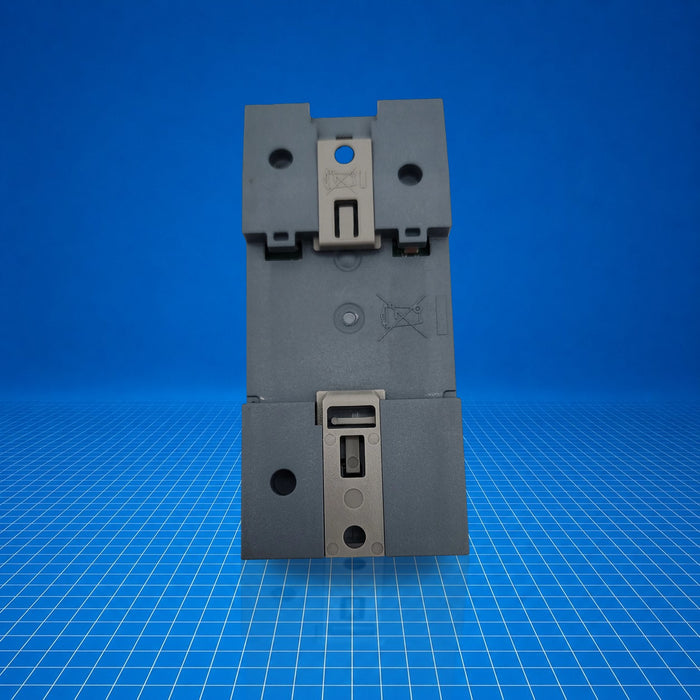

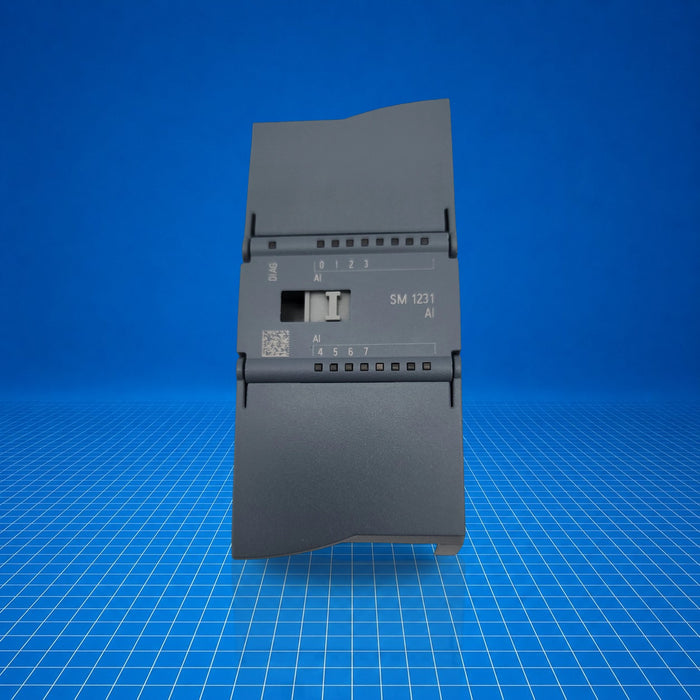

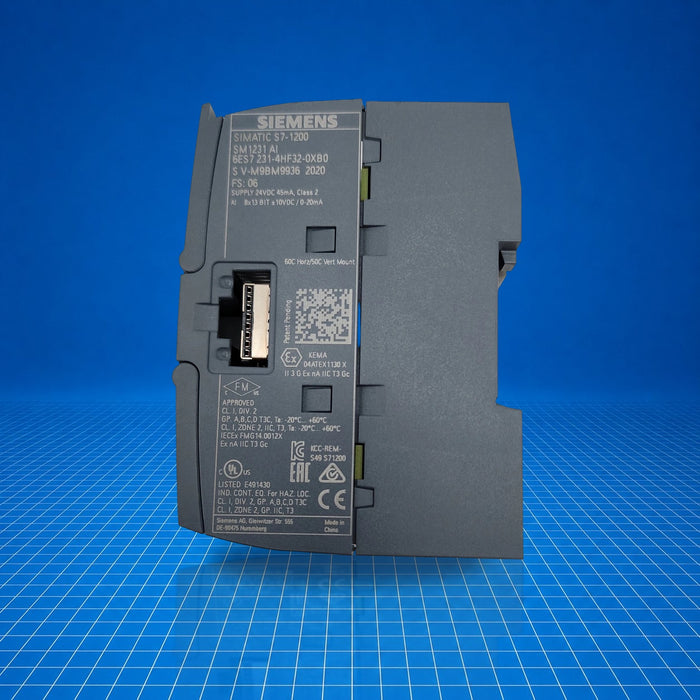

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6ES7231-4HF32-0XB0 Siemens
Original price
$404.67
-
Original price
$1,360.10
Original price
$404.67
$404.67
-
$1,360.10
Current price
$404.67
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7231-4HF32-0XB0 is a SIMATIC S7-1200 analog input signal module (SM 1231-AI, 8 channels, 13-bit plus sign), designed to be mounted on the S7-1200 backplane. It acquires analog process signals in voltage (±10 V, ±5 V, ±2.5 V) or current (0-20 mA, 4-20 mA) formats at a cycle time up to 625 µs. This module integrates into standard automation systems for monitoring and control tasks requiring multiple precise analog inputs.
Best Suited For
- S7-1200 system expansion for analog process monitoring
- Applications requiring both voltage and current input types
- Compact control cabinets with space constraints
- Mid-range automation tasks needing 8 analog channels
Analog channels
8 differential inputs
Input types
Voltage ±10 V/±5 V/±2.5 V; Current 0-20 mA, 4-20 mA
Resolution
13-bit (12-bit + sign)
Supply voltage
24 V DC
Power consumption
60 mA (5 V backplane: 90 mA); 1.5 W
Technical Specifications
I/O & Electrical
Number of analog inputs
8 differential
Permissible input voltage (destruction limit)
35 V
Permissible input current (destruction limit)
40 mA
Input resistance, voltage (±10 V/±5 V/±2.5 V)
≥9 MΩ
Input resistance, current (0-20 mA, 4-20 mA)
280 Ω
Cycle time (all channels) max.
625 µs
Communication & Power
Supply voltage (rated)
24 V DC
Current consumption, typ.
60 mA
Current from backplane bus 5 V DC, typ.
90 mA
Power loss, typ.
1.5 W
Physical & Environmental
Dimensions (W×H×D)
45 mm × 100 mm × 75 mm
Weight, approx.
180 g
Ambient temperature, operation
-20 °C to 60 °C
Ambient temperature, storage/transport
-40 °C to 70 °C
Degree of protection
IP20
Certifications
CECSAULcULusFMRCMKCMarine
