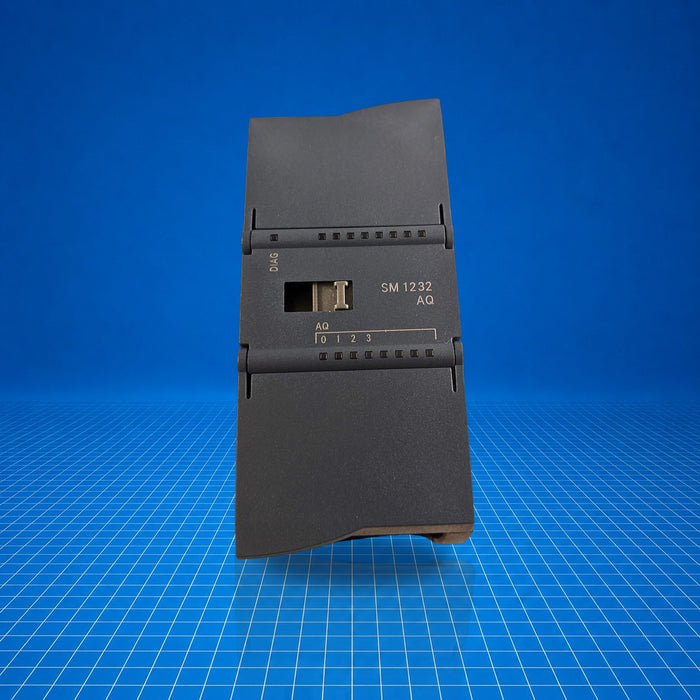

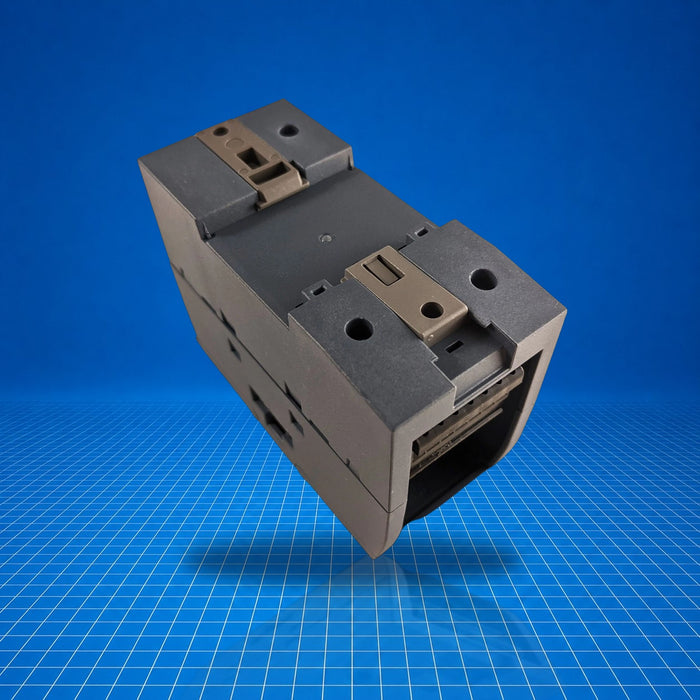

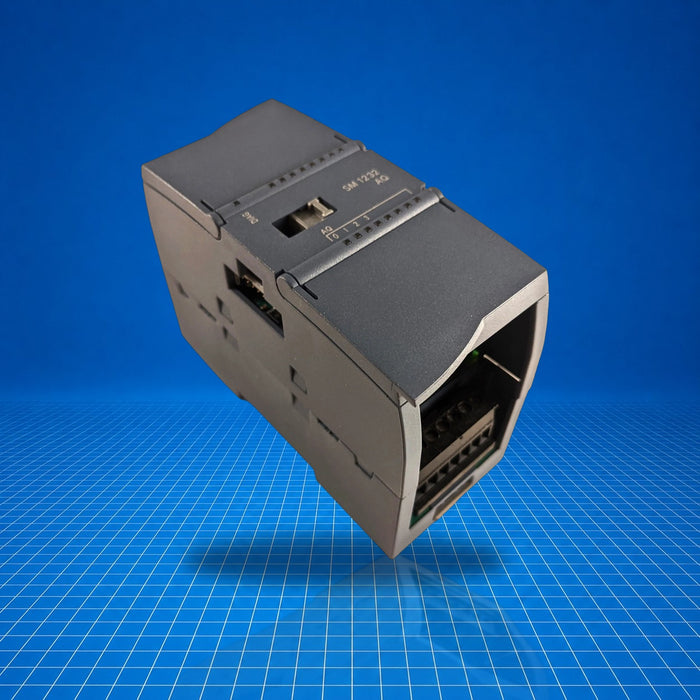

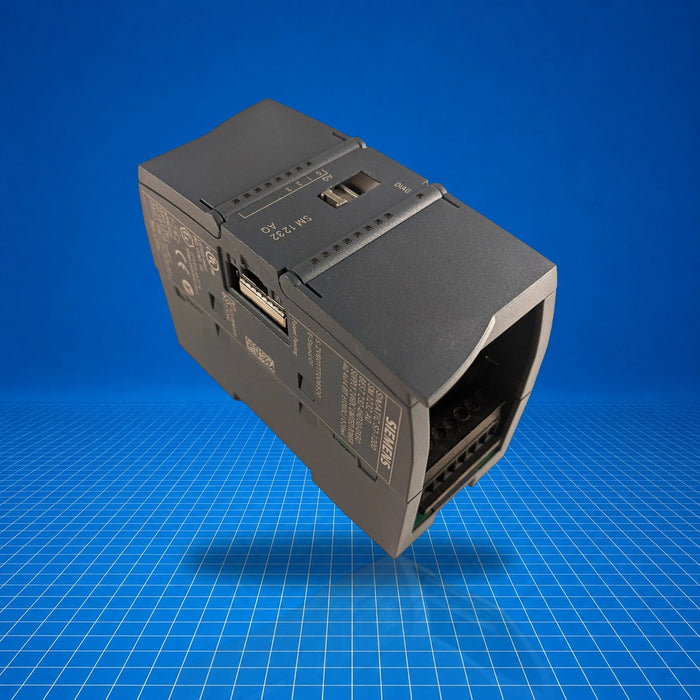

6ES7232-4HD30-0XB0 Siemens
Original price
$0.00
-
Original price
$742.50
Original price
$742.50
$0.00
-
$742.50
Current price
$742.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SIMATIC S7-1200 analog output signal module, part number 6ES7232-4HD30-0XB0, provides four analog outputs that can deliver either ±10 V (14-bit resolution) or 0-20 mA (13-bit resolution). It interfaces with the S7-1200 PLC backplane and is used for precise analog signaling in control systems such as process control loops, actuator control, and analog feedback applications. The module is designed for integration into modular automation racks and complements digital and communication I/O for mixed-signal environments.
Best Suited For
- S7-1200 PLC installations requiring multiple analog outputs
- Process control systems needing both voltage and current signaling
- Applications demanding 14-bit voltage or 13-bit current resolution
- Retrofitting older S7-1200 setups with modular analog expansion
Analog outputs
4 channels
Voltage output range
±10 V (14-bit)
Current output range
0-20 mA (13-bit)
Module weight
≈180 g
Protection rating
IP20
Technical Specifications
I/O & Electrical
Number of analog outputs
4
Voltage output range
±10 V, 14-bit resolution
Current output range
0-20 mA, 13-bit resolution
Basic error limit (voltage/current)
±0.3 %
Temperature error (25 °C to 55 °C)
±0.3 % to ±0.6 %
Communication & Power
Supply voltage (DC)
24 V DC
Current consumption (typical)
45 mA
Backplane bus supply (5 V DC) current
80 mA
Power loss (typical)
1.5 W
Physical & Environmental
Operating ambient temperature
-20 °C to +60 °C
Degree of protection
IP20
Weight
≈180 g
Dimensions (W × H × D)
45 mm × 100 mm × 75 mm
Certifications
CECSAULcULusFMRCMKCMarine
