Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

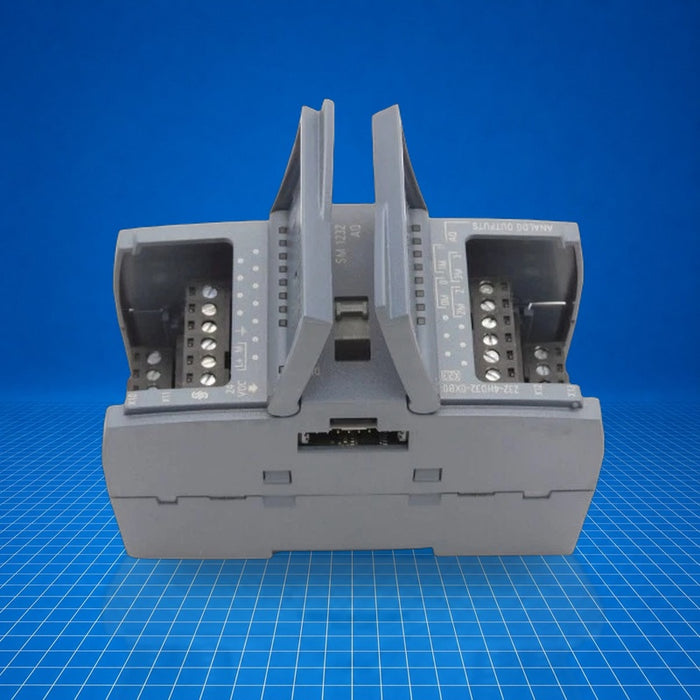

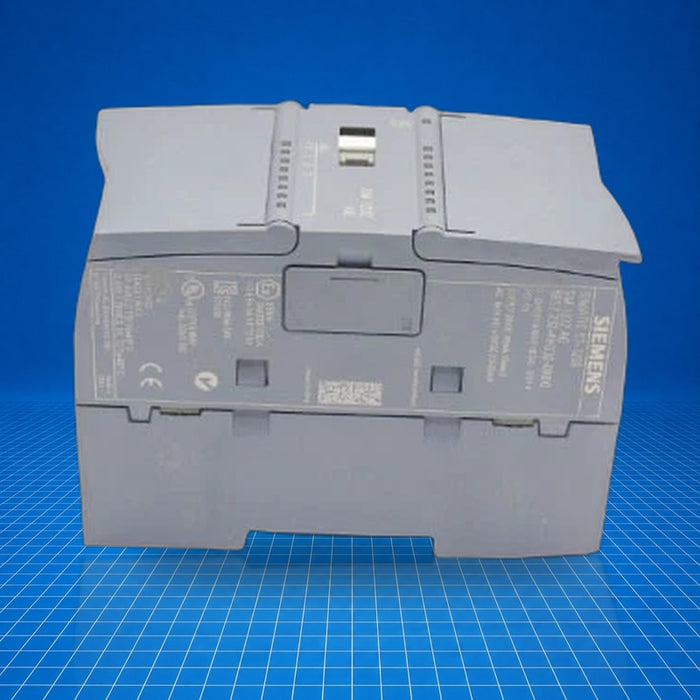

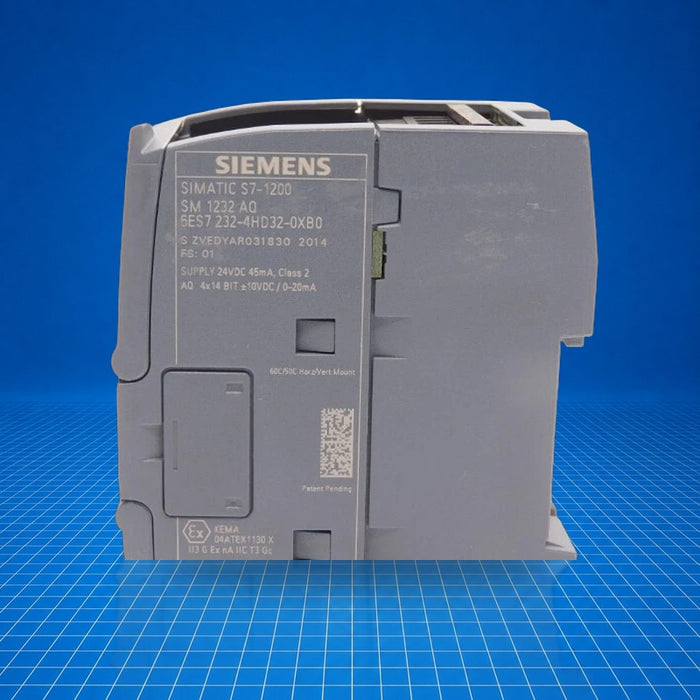

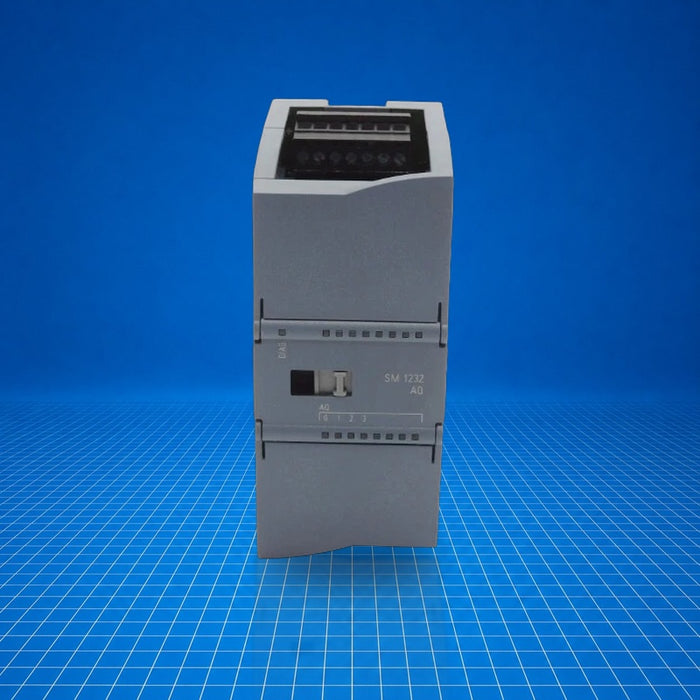

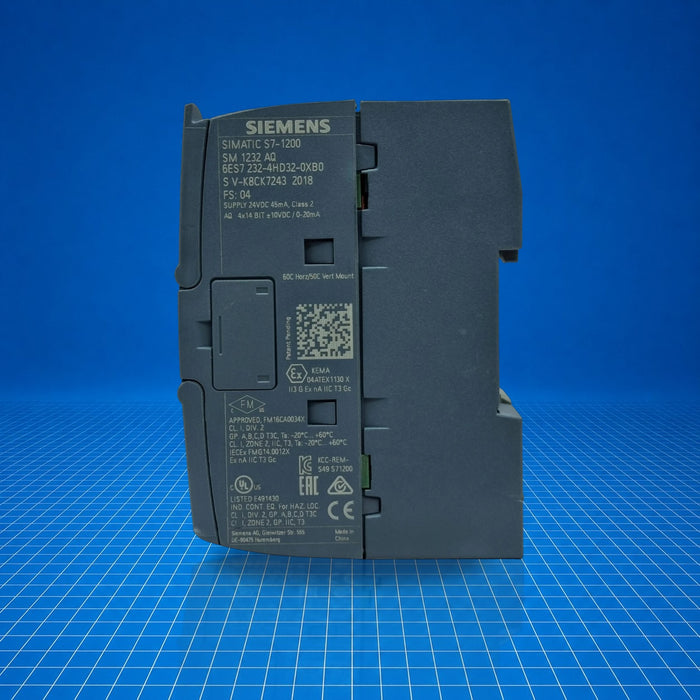

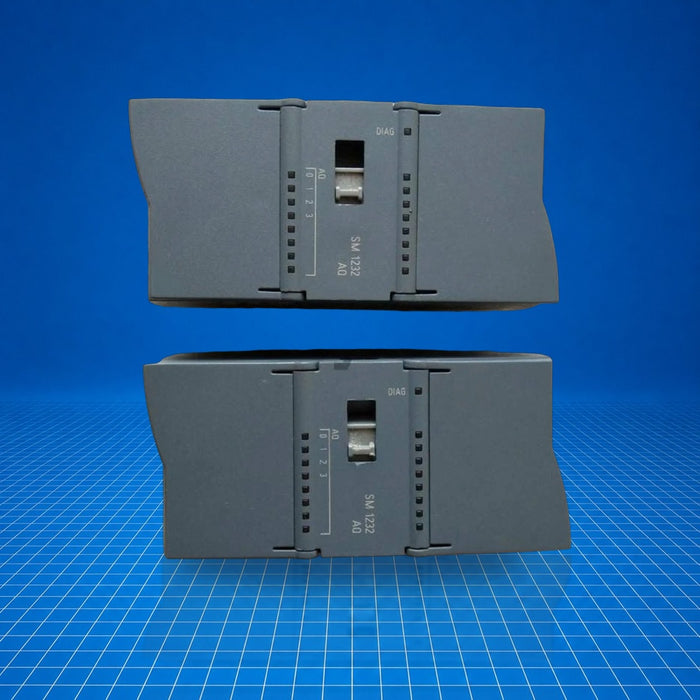

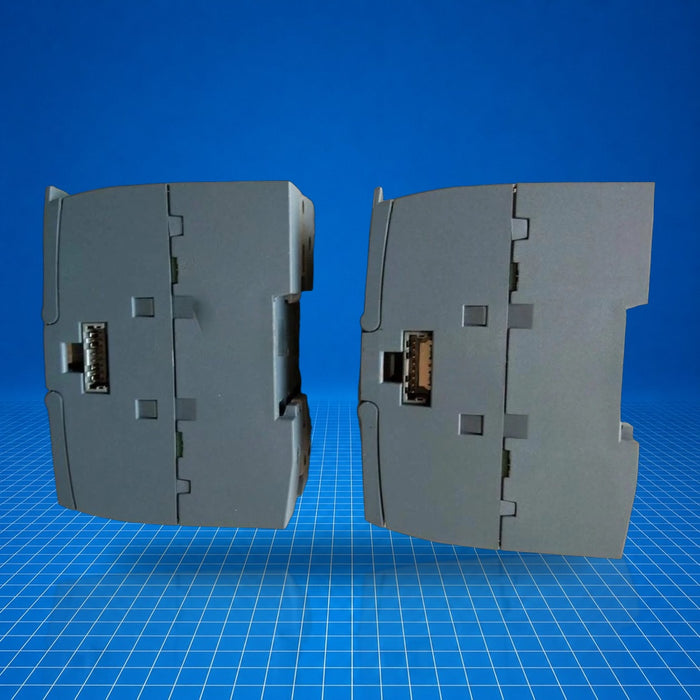

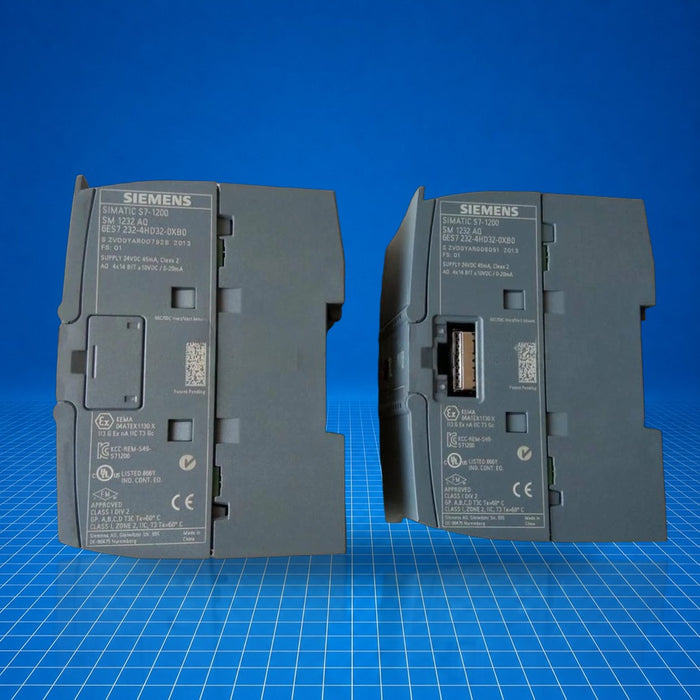

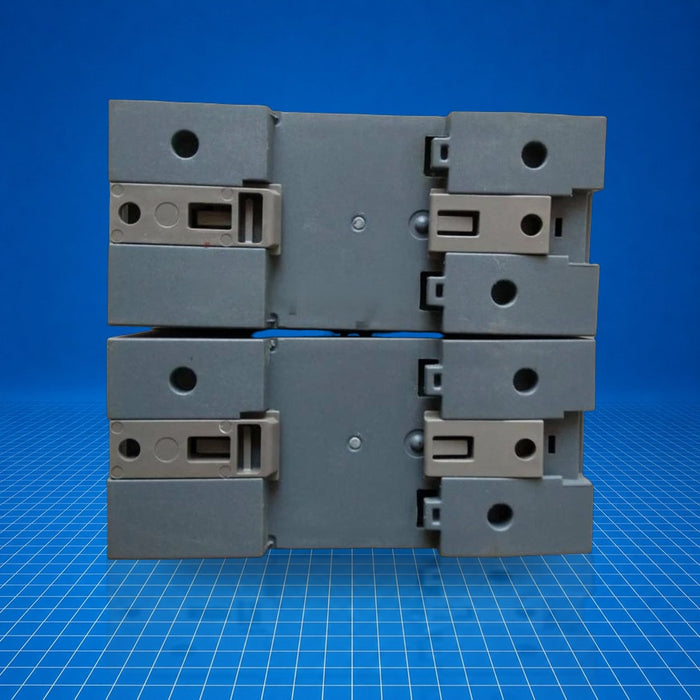

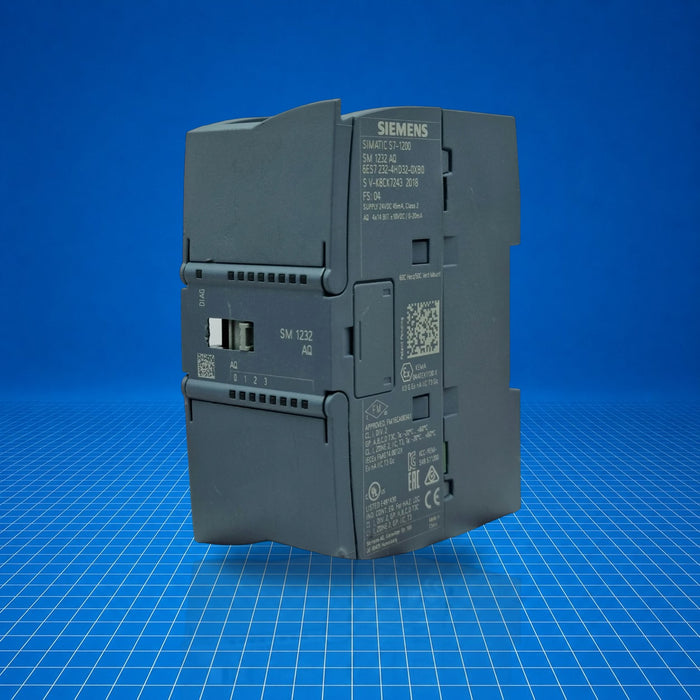

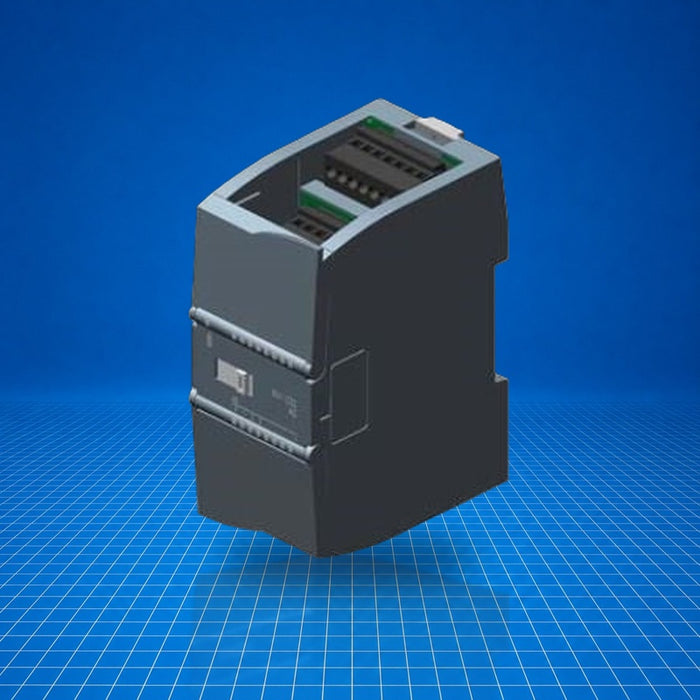

6ES7232-4HD32-0XB0 Siemens
Original price
$586.50
-
Original price
$849.75
Original price
$849.75
$586.50
-
$849.75
Current price
$849.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6ES7232-4HD32-0XB0 is a SIMATIC S7-1200 SM 1232 analog output module by Siemens. It provides four analog outputs configurable for ±10 V or 0-20 mA/4-20 mA, with 14-bit resolution in voltage mode and 13-bit in current mode. As part of the SM 1232 family, it integrates with S7-1200 controllers to condition analog signals for process control, motion control, batching, and other industrial automation tasks. 6ES7232-4HD32-0XB0 features tight accuracy and integrates diagnostic functions suitable for control cabinets and distributed I/O systems.
Best Suited For
- S7-1200 based distributed analog output expansion
- Process control requiring both voltage and current outputs
- Signal conditioning up to 100 m remote sensors
- Compact machine-builds with analog feedback requirements
Analog outputs
4 channels
Output types
±10 V or 0-20 mA (4-20 mA)
Resolution
Voltage: 14 bit; Current: 13 bit
Typical power loss
1.5 W
IP rating
IP20
Technical Specifications
I/O & Electrical
Supply voltage
24 V DC
Current consumption (module)
45 mA typical
Backplane bus current (5 V)
80 mA typical
Power loss
1.5 W typical
Analog outputs
4 channels, voltage or current
Voltage output range
-10 V to +10 V
Current output range
0-20 mA (4-20 mA)
Load impedance, voltage outputs, min.
1000 Ω
Load impedance, current outputs, max.
600 Ω
Communication & Power
Diagnostic LEDs
Yes (status and maintenance)
Short-circuit protection
Yes
Physical & Environmental
Ambient operating temperature
-20 °C to +60 °C (horizontal) / up to +50 °C (vertical)
Storage temperature
-40 °C to +70 °C
Air pressure, operation
795 hPa to 1080 hPa
Air pressure, storage
660 hPa to 1080 hPa
Relative humidity
Up to 95 % at 25 °C, non-condensing
Pollutant tolerance
SO₂ < 0.5 ppm; H₂S < 0.1 ppm at RH < 60 %
Dimensions (W×H×D)
45 mm × 100 mm × 75 mm
Weight
≈ 180 g
Certifications
CECSAULcULusFMRCMKCMarine
