6ES7272-0AA30-0YA0 Siemens

Name: 6ES7272-0AA30-0YA0 Siemens
Brand: Siemens
SKU: 6ES7272-0AA30-0YA0
Price: 489.0 USD
Availability: InStock

$0.00 - $489.00

$489.00

$0.00 - $489.00

$489.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

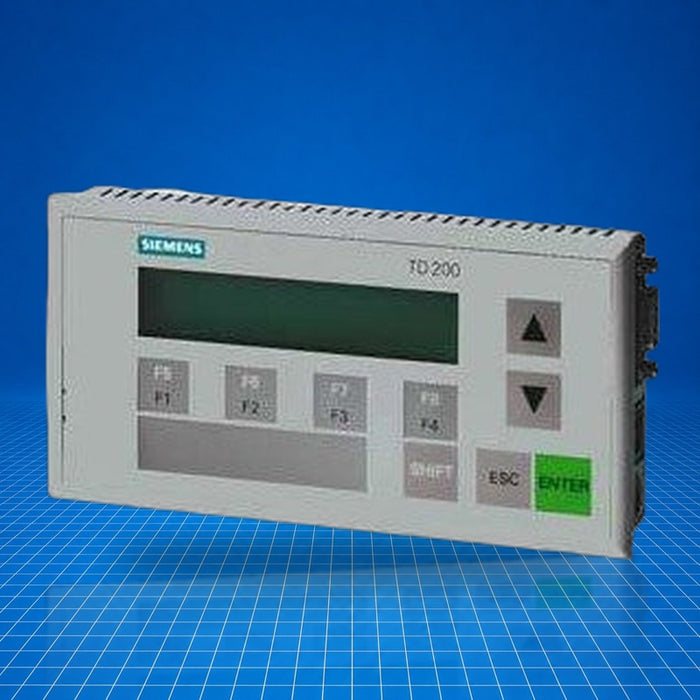

The SIMATIC TD 200 operator interface module (Siemens part number 6ES7272-0AA30-0YA0) serves as a 2-line text display for S7-200 PLC systems, enabling status and variable message display. It supports standard and edit modes via PLC-control and interfaces via RS-485 (PPI). Designed for factory-floor mounting, it accommodates keyboard input through a 33-key elastomer keypad, and operates from 24 V DC. Typical use cases include message display and operator interaction in machine control panels and S7-200 applications.

Best Suited For

Integration with SIMATIC S7-200 PLCs
Display of status and variable messages
Simple operator input via text display and function keys
Low-cost text HMI in compact control cabinets

Display

STN, 2 lines × 20 characters

Interface

RS-485 (PPI), 9.6/19.2 kbit/s

Power

DC 24 V (range 12-32 V DC)

Operating keypad

33-key elastomer keyboard

Enclosure front

IP 65 front, IP 30 housing

Technical Specifications

I/O & Electrical

Input voltage

DC 24 V (12-32 V DC minimum safety)

Current consumption

ca. 0.02 A (at 24 V)

Communication & Power

Communication interface

RS-485 (PPI), 9.6/19.2 kbit/s

Physical & Environmental

Dimensions (H × W × D)

72 × 144 × 27 mm

Weight

ca. 0.22 kg

Display

STN, 2 lines × 20 characters, 5 mm character height, LED backlight

Keypad

33-key elastomer keyboard

Protection rating

IP 65 front, IP 30 rear housing

Certifications

VDEEN 60950IEC 950EMC Class B

EMC: EN 55022 class B (CISPR22), ESD immunity 6 kV contact/8 kV air (IEC 1000-4-2), burst immunity 2 kV (IEC 1000-4-4), surge 1 kV line-line, 2 kV line-earth (IEC 1000-4-5); Standards: VDE 0805, EN 60950, IEC 950; Noise emission < 45 dB(A) per DIN 45635 (no fan)
